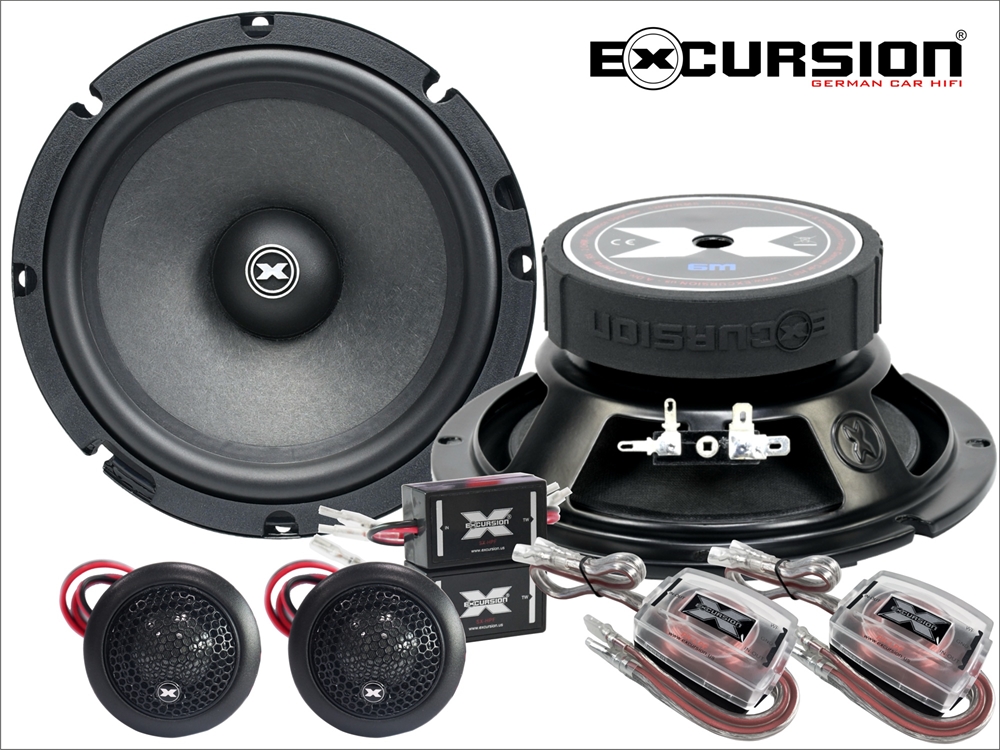

EXCURSION RX 6C ECO 165mm REFERENCE composæt 2-vejs 2 OHM

EXCURSION REFERENCE SERIE ECO - 2Ohm
16,5cm DIN, 120 RMS / 300 Watt @ 92dB 1W/m
63mm ET (OEM Upgradespeaker)
50 Hz - 21 KHz Frequency Response - SET

SX 1S - 26mm Silk Dome Competition Tweeter
* 25mm Silk Dome Tweeter with ADC (Activ Damping Coating).
* Ferrofluid cooled OFC Voice Coil within a high efficient Neodym Motor system.
* 50cm presoldered high grade Plug&Play OFC (Oxygen Free Copper) Speakercable.
* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (44x25x19mm).
* high grade MKP Audio Capicator for outstanding improvement of the Soundresolution.
* optional 2/4/6/8/10dB per Oct. Resistor Module, XLR2 / XLR4 / XLR6 / XLR8 / XLR10.
* various installation accessoires for Tweeter flush or on dash mounting.

RX 6M - High End Midbass Loudspeaker
* 1" / 25.9 mm Copper VC @ top vented Kapton Former
* 30 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Wool Cone with Glasfibre stripe reinforcments and ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 58Hz
SD: 132.7 sqCM
Vas: 10.57 Ltr
Cms: 380 µM/N
Mms: 16,3 g
Bl™: 4.53
Qms: 3.25
Qes: 0.63
Qts: 0.52

* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).
