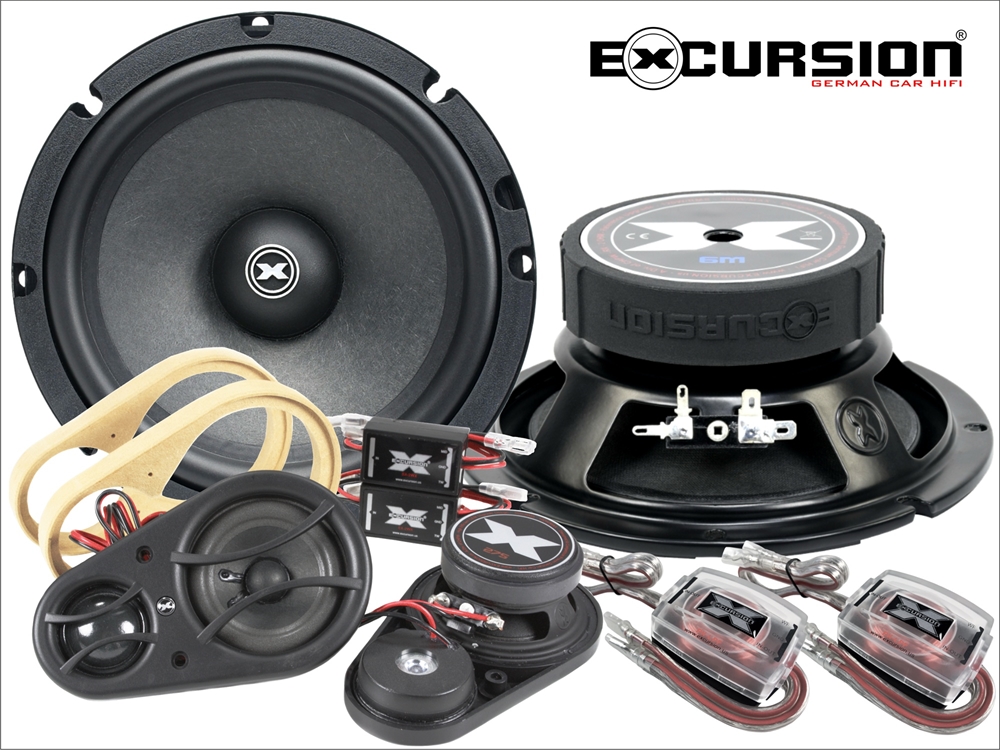

EXCURSION RX 6.3C ECO 165mm REFERENCE staging composæt 3-vejs 2 OHM

EXCURSION REFERENCE SERIE ECO - 2Ohm
16.5cm, 120 RMS / 300 Watt @ 92dB 1W/m
63mm ET (OEM Upgrade Speaker)
50 Hz - 20 KHz Frequency Response - SET

SX SAT - 70mm DIN 2Way Component System
* 25mm high resolution Silk Dome Tweeter
* 2-layer paper ADC cone (Activ Damping Coating) decrease resonance and improve stiffness
* Double pressed, UV threated foam surround, asure the longlife of the Loudspeaker.
* EFF motor structure (Efficient Flux Field) for high efficiency at less power (radio).
* Practice-optimized ABS mounting frame enables the most difficult positioning and avoids phase losses.
* MDF mounting rings included in the scope of delivery facilitate professional fiberglass and filling work if necessary.

RX 6M - High End Midbass Loudspeaker
* 1" / 25.9 mm Copper VC @ top vented Kapton Former
* 30 Oz Motor Structure w. high grade Y35 Ferrite Magnet
* Dual Layer natural vital Woolfibre Cone with ADC Coating
* HDR (High Density & High Roll ) Rubytec Surrounds
* Phase Plugged Excursion Dustcap Design
* Pole Piece and bottom vented Excursion Steel Basket
* Selective high extension handcrafted NOMEX Spider
* PX-LPF Plug Crossover w. 14GA tinned OFC speaker cable.

Fs: 58Hz
SD: 132.7 sqCM
Vas: 10.57 Ltr
Cms: 380 µM/N
Mms: 16,3 g
Bl™: 4.53
Qms: 3.25
Qes: 0.63
Qts: 0.52

* praxis born Inline passiv Filter with 3M Sticker and minimized Dimension (50x37x24mm).

Shipping:
- 2 pc SX-SAT
- 2 pc RX-6M
- 2 pc SX-HPF
- 2 pc PX-LPF
- 2 pc PX-WFA (80cm 14GA tinned OFC Speakercable with PX Connectors)
- Owner Manual
