EMPHASER FDF1 COMPOSÆT FORD TRANSIT/COSTUM 2017>

EMPHASER EM-FDF1 - Galactically good sound in the motorhome
Your vacation starts with your favorite song - in Hi-Fi sound quality!
For those who want to upgrade the sound of their Ford Transit, Transit Custom or Tourneo without making any changes to the vehicle, there is the EM-FDF1 speaker system from EMPHASER Universe. It is acoustically perfectly matched to the vehicles and replaces the original factory system in the simplest way. All components fit perfectly into the respective speaker mounts front doors and are simply connected to the original plugs - that's it!

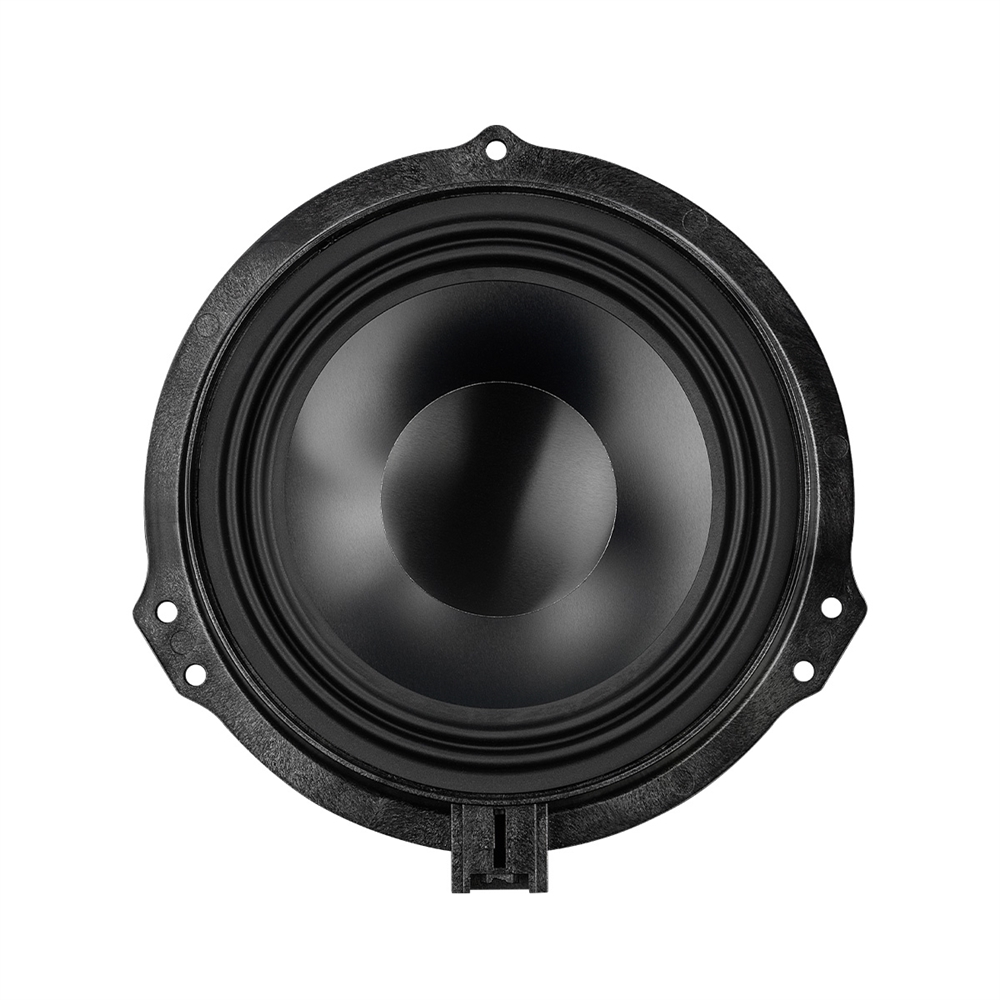

The woofer
The core element of the speaker set are the woofers with Cambridge surround in "M" design and a diaphragm made of aluminum - the high sound conductivity and stability of aluminum form the starting point for precise music reproduction and excellent dynamics. The thickness of the cone material is chosen to provide the stability for impressive bass attacks, but also the necessary lightness for precise mids.

Thanks to the large magnetic drive with Faraday copper ring and the low overall weight of the oscillating unit, the EMPHASER loudspeaker system achieves a high efficiency and thus achieves its convincing performance - even if the EM-FDF1 is only operated on a "normal" radio.

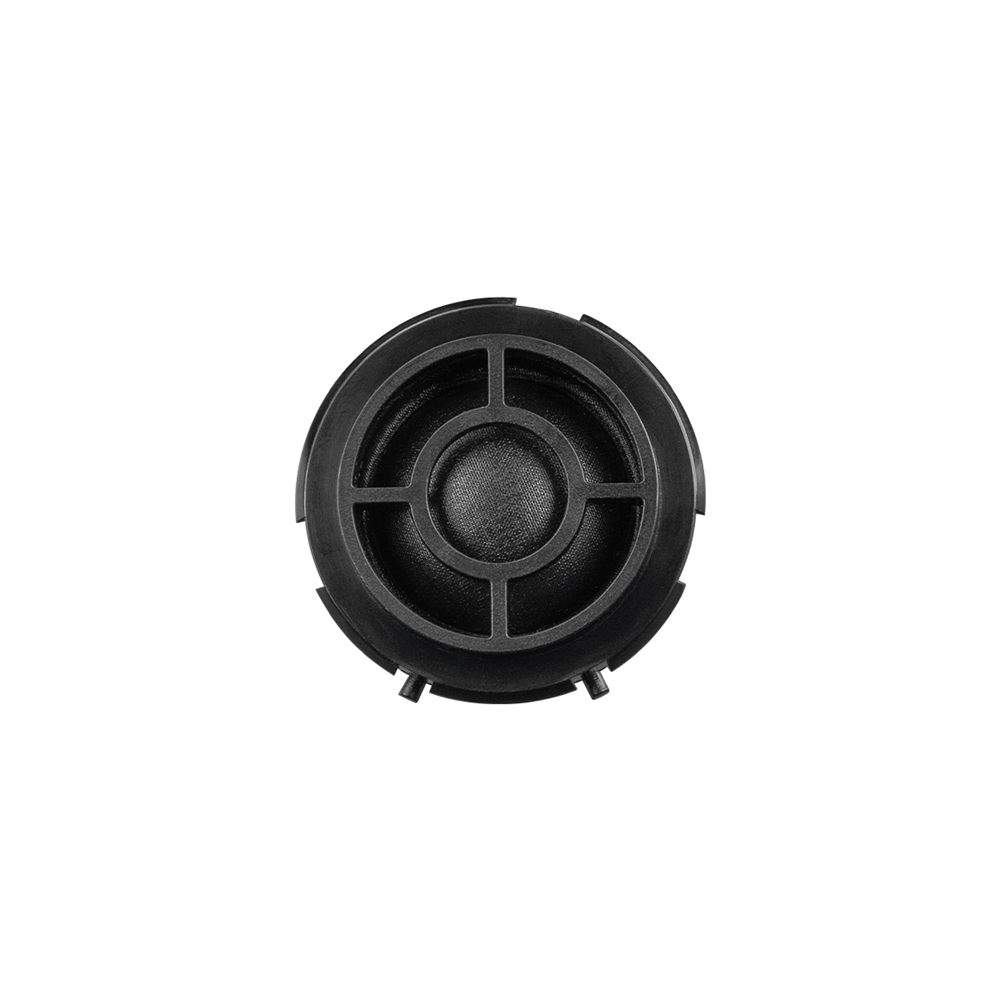

The tweeter
The tweeters with 25 mm fabric dome impress with their brilliance and spatial reproduction and are simply snapped into the original brackets. The diaphragm geometry provides a uniform directional characteristic for excellent sound in the original installation location. In addition to the low weight of the diaphragm, surround and voice coil, the deliberate decision not to use ferrofluid is primarily responsible for the fact that the tweeter plays so vividly, spatially and without coloration.

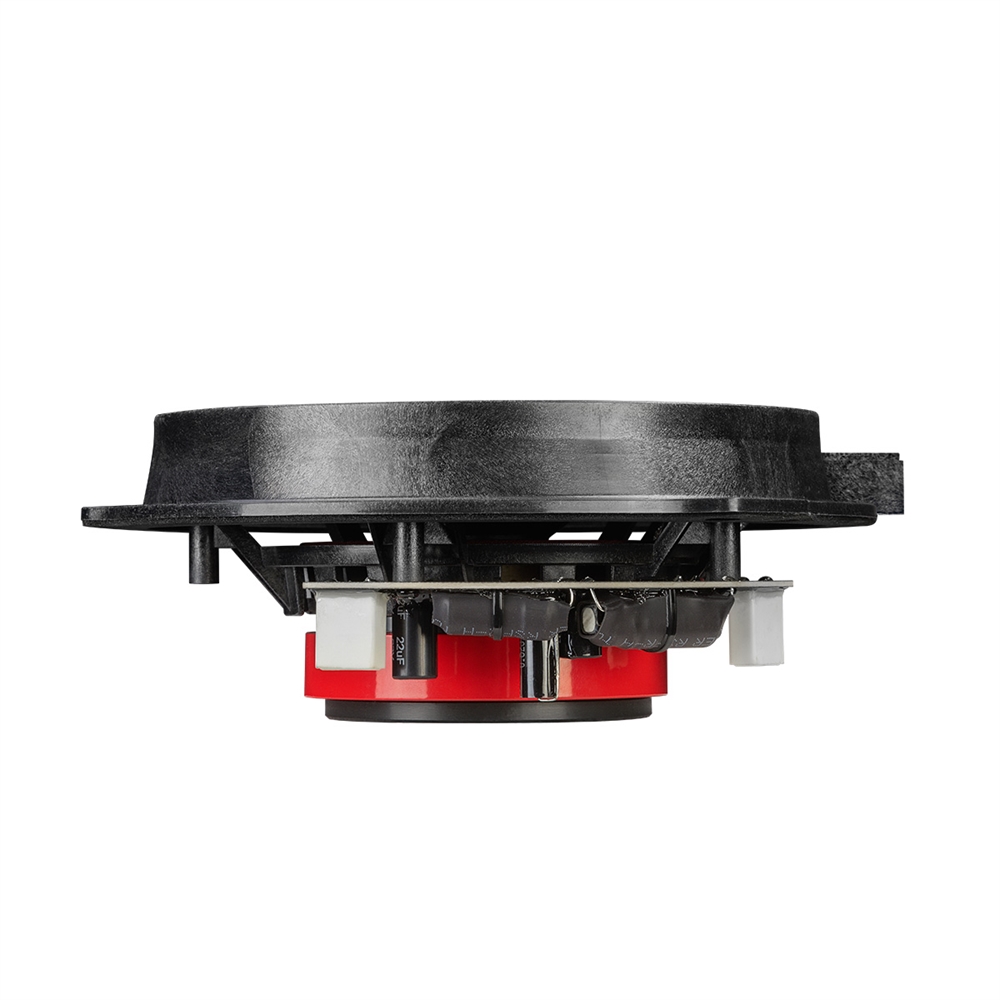

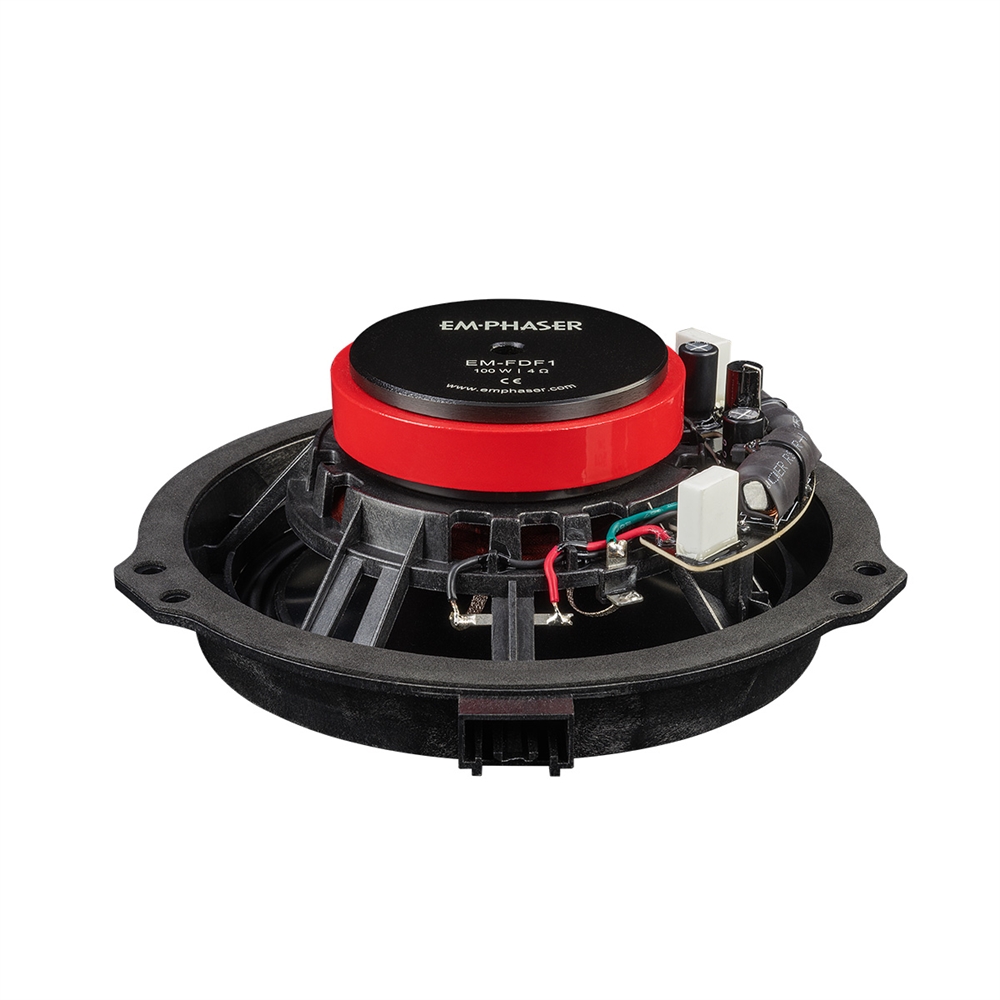

The crossover
The 12 dB/12 dB/oct. crossover for the woofer ensures an exceptionally harmonious frequency response right into the bass range; a separate subwoofer is therefore no longer absolutely necessary for audiophile hi-fi music enjoyment. In addition, an LCR resonant circuit has been integrated to optimally adapt the system to the vehicle acoustics. The crossovers are located directly on the woofer or as a cable crossover on the tweeter for easy installation.

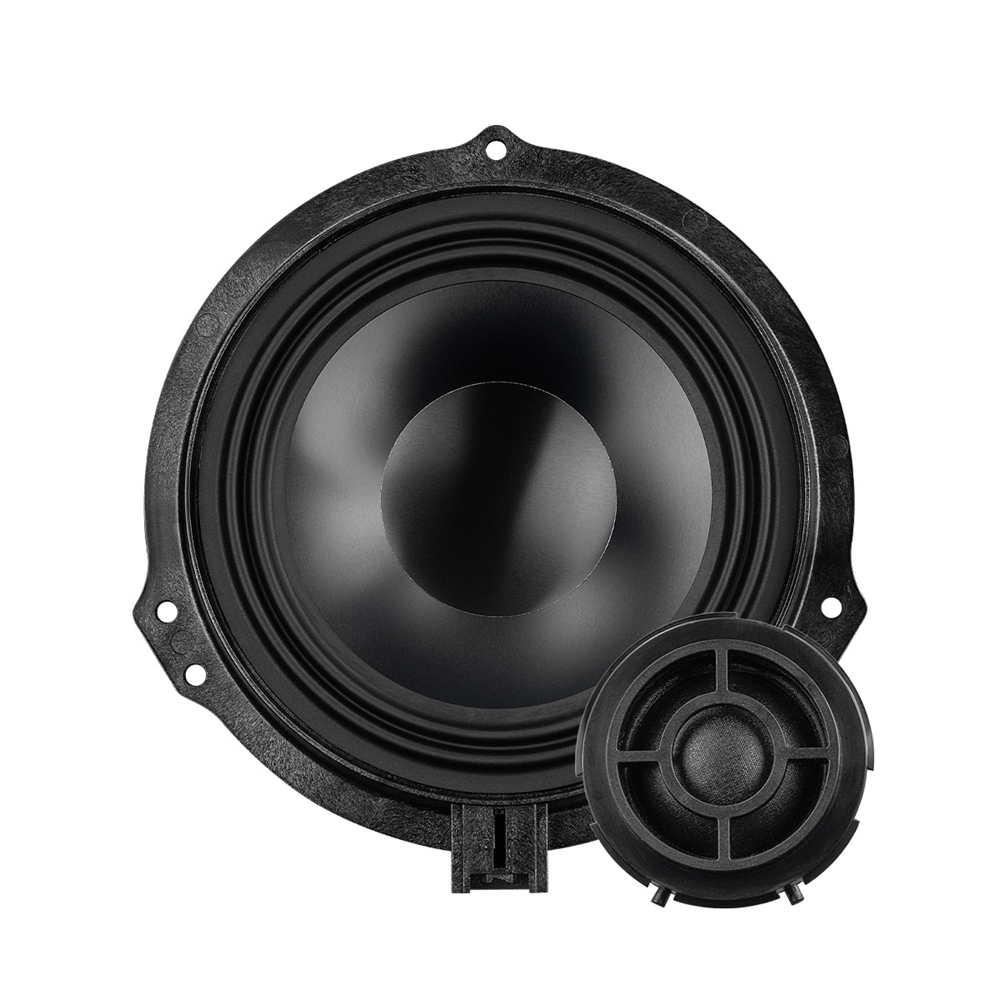

Main Features:

16.5 cm 2-way compo system
Fits Ford Transit and Transit Custom (7th Gen) and platform related Tourneo models.
Vehicle specific connections
Optimized frequency response for true Hi-Fi sound
woofer with aluminum cone for detailed sound performance
Cambridge surround for high linear diaphragm excursion
Powerful magnet, Faraday copper ring for stable magnetic field
25 mm voice coil on temperature resistant aluminum carrier
25 mm tweeter with fabric dome and without ferrofluid cooling for highest brilliance and largest dynamic range
12 dB/12 dB/oct. crossover @ 3200 Hz with high quality components
Technical specifications:

Frequency response: 50 Hz - 22 kHz
Nominal impedance: 4 Ohm
Sensitivity 1W/1m: 90 dB
Rated power: 50 W RMS
Scope of delivery:

2 pieces tweeters
2 pieces woofer / midrange driver
2 pieces crossover
