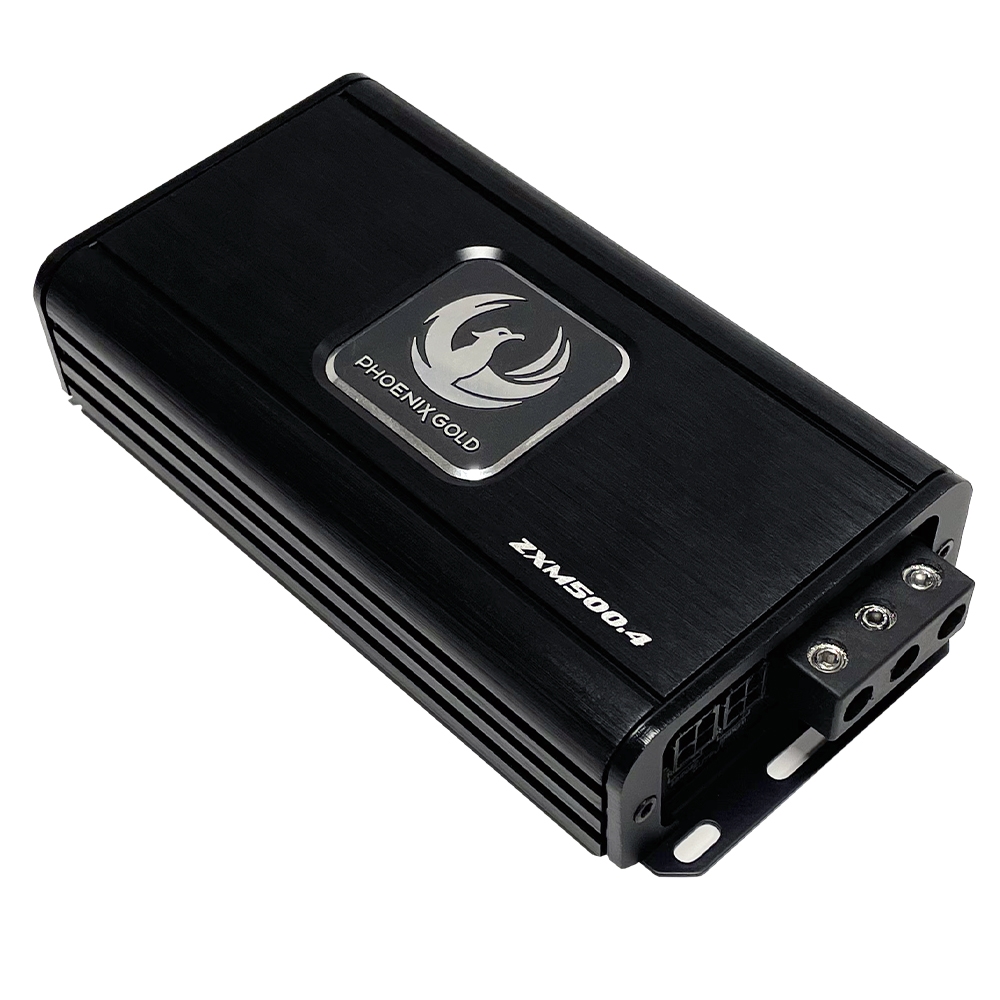

PHOENIX GOLD ZXM 500.4i MICRO 4 x 80 RMS

the ZXM series amplifiers into the world market. These
amplifiers are made to be as small as possible without compromising sound quality, power and functions. ZXM5004
is a 4 channel amplifier with total power 500W RMS. This equals to 4x80W RMS in 4 Ohm but the amplifier is stable
into 2Ohm and then delivers 4x125W RMS. The 4channels can also be bridged into 2x250W RMS in 4Ohm. The
amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4h input low or high level. A lot
work has gone into making these amps with low EMI emissions to not interfere in advanced electronics or FM
signal.
ZXM500.4 HP / LP Filters 43-400Hz
2Ohm Stable
Low-level input
High-level input on RCA cut-able RCA input included
Bridgeable 2x250W RMS!
Autostart on high-level or remote input
Limited power on ISO - More power with extra power cable
1M maximum cable with ISO cable 4 Ohm Load only (25A MAX)
Full power 48A Load 2Ohm load or 4Ohm Bridge
4-layer PCB
Low EMI with special circuit board design
Current draw and power rating:
4 Ohm - 4x80Watt RMS at maximum 26A
2 Ohm - 4x125Watt RMS at maximum 46A
4 Ohm Bridge - 2x260Watt RMS at maximum 47A
Kan gøres plug and play med nedenstående kabler og bilspecifik t-kabel
