DIGITAL VIDEO TRANSMITTER TIL BAK KAMERAER

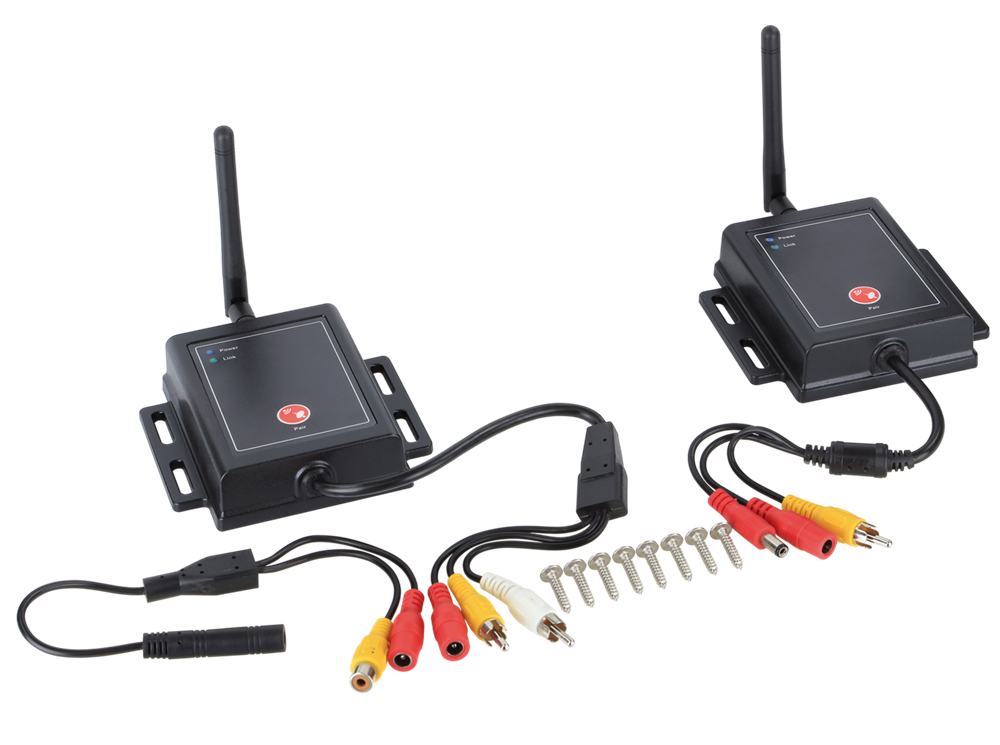

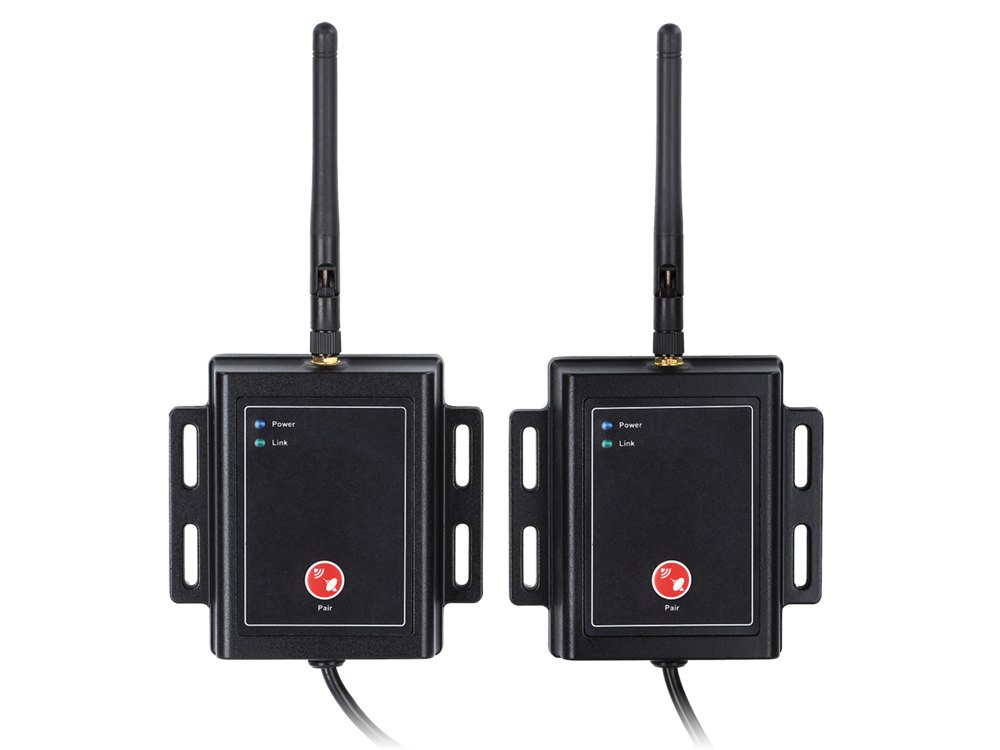

Video Transmitter digital universal

Video transmitter for analog radio transmission of NTSC video signals.

There is no need for time-consuming cable laying during camera installations for signal transmission.

Digital transmitters convert the video signal between the antennas from analog to digital and guarantee a noise-free stable transmission and are suitable for longer distances even with obstacles.

Use in trailers or semi-trailers is possible.

An application example besides rear view camera signal transmission is video surveillance of cargo or of animals during animal transports.

In contrast to analog video transmissions the signal can be received only by the linked digital receiver.

Interference from other transmitters in the same frequency range such as surveillance cameras in parking garages or car parks into the system is not possible.

Note:

connector: +12V system plug

recommended mounting:

camera and transmitter: same power and GND connection
monitor and reciever:same power and GND connection
mounting location: vehicle interior

Product characteristics:

Design: Plastic
Color: black
Transmission: NTSC digital
Power supply: +12V DC
Range: 20 Meter
Frequency range: 2.4GHz
Measurements: L / B / H - 99,6mm / 77mm / 25.5mm
