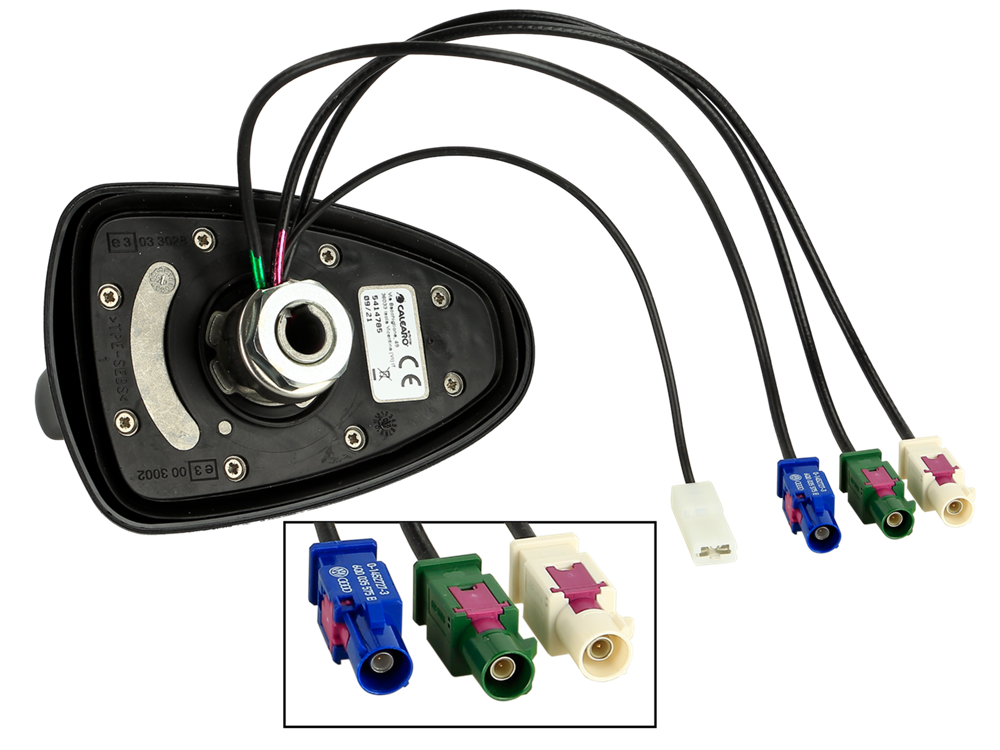

Roof antenna AM/FM TV/DVB-T GNSS (GPS/GLONASS/Galileo/Navstar)
Calearo
Style: Shark II
Note:
Reception Mode:
AM/FM
TV/DVB-T
GNSS
Installaion:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
tightning torque: 6,5 nm +/- 20%
Dimensions:
socket: L = 11,7 cm / B = 7,6 cm / H = 6,2 cm
Connections:
AM/FM: Fakra B(m) white RG174 / L=250 mm
TV/DVB-T: Fakra E(m) green RG174 / L=250 mm
GNSS connector: Fakra C(m) RG174 / L=250 mm
power supply external: blade terminal 6,3 mm
Frequency range:
AM: 0,15 - 1,71 MHz
FM: 87,5 - 108 MHz
TV/DVB-T:
Band III 174 - 230 MHz
Band IV/V 470 - 790 MHz
GNSS 1575,42 - 1,023MHz
Benefit (dB):
TV/DVB-T: 4dBi
GNSS: 28dBi
Power supply:
AM/FM: 12V external / 12V phantom power
TV/DVB-T: 12V external / 12V phantom power
GNSS: 2V - 5V phantom power
Power consumption:
AM/FM: 50 mA max
DVB-T: 40 mA max
GNSS: 40 mA max
Impedance:
AM/FM: 50 Ohm
TV/DVB-T: 50 Ohm
GNSS: 50 Ohm
VSWR:
TV/DVB-T: <4
GNSS: 2:1
