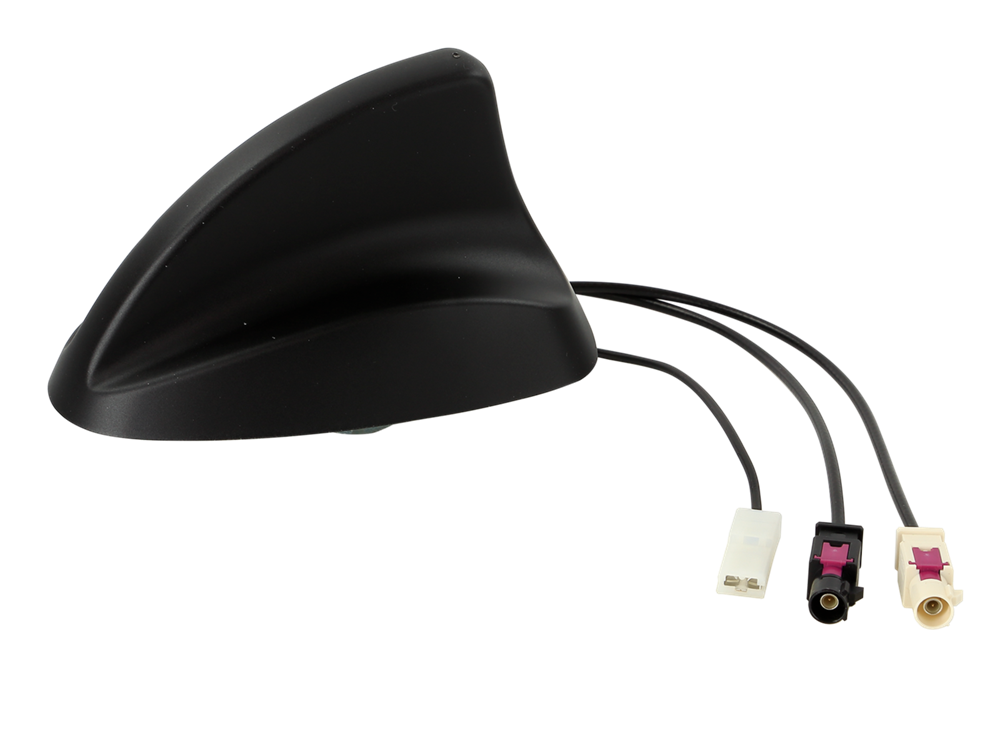

CALEARO SHARK 2 COMBI-DAB AM-FM/DAB-DAB+

Roof antenna AM/FM DAB/DAB+

Style Shark II

Reception mode:
AM/FM
DAB/DAB+

Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
tightning torque: 6,5 nm +/- 20%

Dimensions:
antenna socket: L = 117 mm / W = 76 mm / H = 62 mm

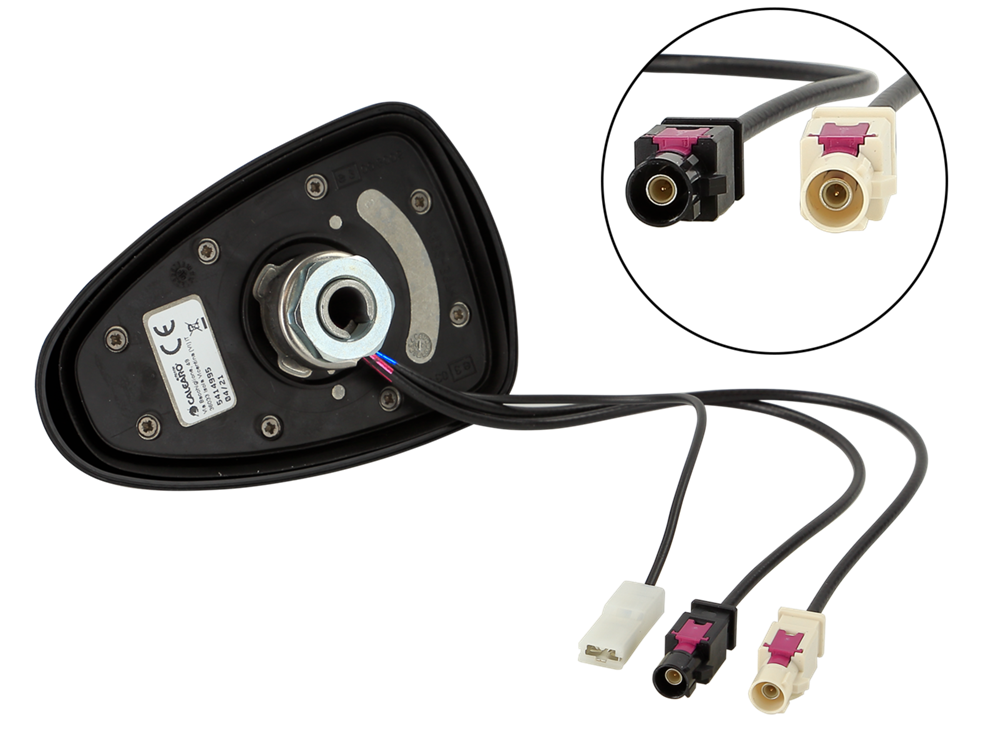

Connections:
AM/FM: Fakra B(m) white RG174 / 250 mm
DAB/DAB+: Fakra A(m) schwarz RG174 / 200 mm
power supply external: blade terminal 6,3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB/DAB+: 174 MHz - 240 MHz

Benefit (dB):
DAB/DAB+: 2dBi

Power supply:
AM/FM 12V external / 12V phantom power
DAB+ 12V external / 12V phantom power

Power consumption:
AM/FM 50 mA
DAB/DAB+ 30 mA max

Impedance:
AM/FM: 50 Ohm
DAB/DAB+: 50 Ohm

VSWR:
DAB/DAB+: <3:1

Noise figure:
FM: 3,5 db
DAB/DAB+: 2 db

Polarization:
FM: Linear-Vertikal
DAB/DAB+: Linear-Vertikal

Optional:
AM/FM:
Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
Antenna adapter Fakra(m) > DIN(m) 12V phantom power: 1524-03
Antenna adapter Fakra(m) > ISO(m) 12V phantom power: 1524-04
DAB/DAB+:
Antenna cable extension Fakra(f) > SMB(f) 500cm: 15-7581141
Antenna adapter SMB(m) > SMA(m): 1502-29
