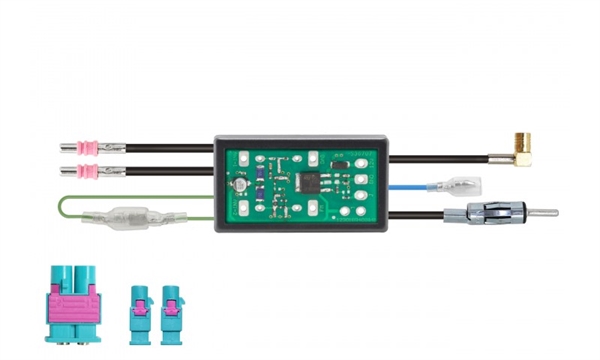

ANTENNE SPLITTER DAB/DAB+ TIL PHANTOM ANTENNER DOBB FAKRA TIL DIN/SMB MED ANTENNE DIVERSETY

Splitter den originale antenne til både antenne og dab/dab+ antenne. Bruges til forstærkede antennesystemer

Dobbelt Fakra til Din han og smb hun

PRODUCT DESCRIPTION
DAB+ signal splitter & FM "PHASE" antenna-diversity with phantom feed.
PRODUCT INFORMATION
FM PHASE antenna-diversity.
2 vehicle antennas - means signal is present on both antenna wires.
----------------------------
The interface optimise the signal/noise ratio and split the frequences according to DAB+ and FM.
---------------------------
Power supply phantom feed:
GREEN wire circle closed supplies 8,5V open 12V.
------------------------------
PLEASE NOTE

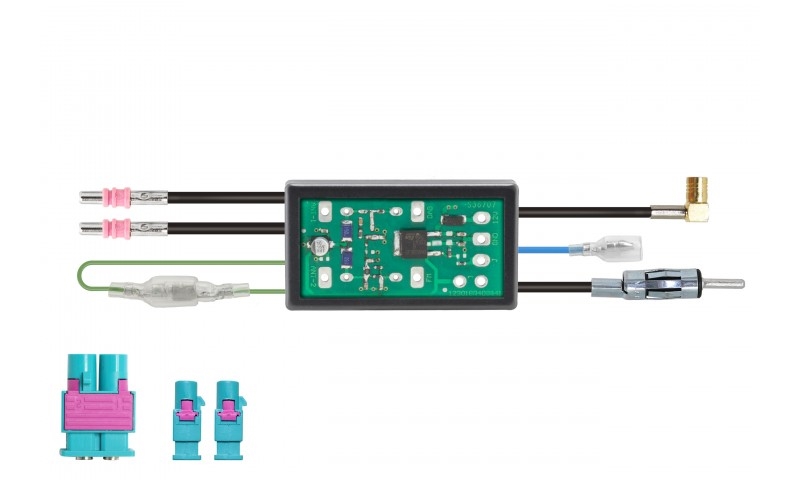

the picture shows the electronic PCBA, the product is delivered protected in a closed housing.
TECHNICAL DATA
The interface works in vehicles having active (amplified) antennas & fakra connection.
Anschluss.DAB+ Frequency 174 MHz – 240 MHz
FM Frequency 87,5 MHz – 108MHz
--------------------------------------------------
PAY ATTENTION:
many factory installed antennas are supplied with 8.5V through the coaxial wire from the radio.
