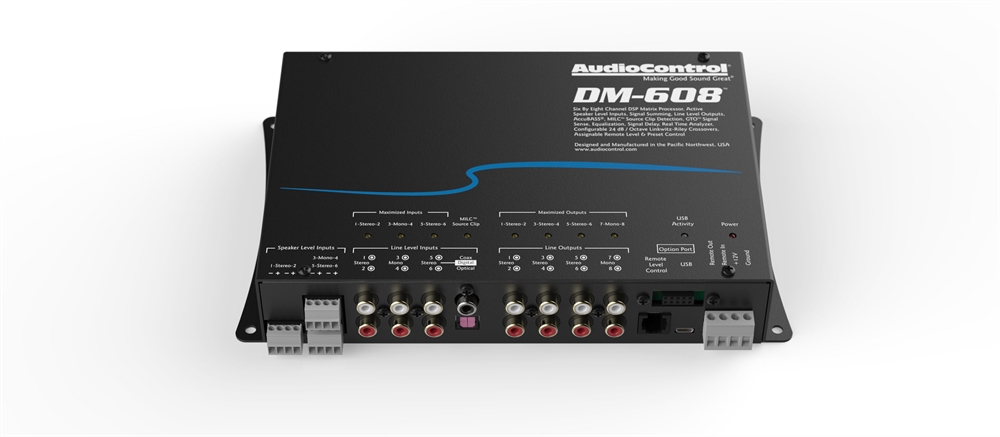

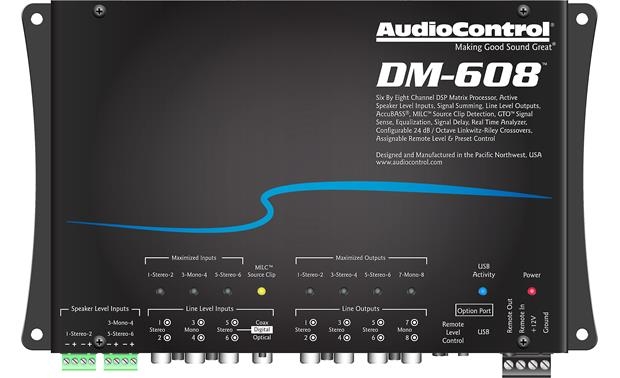

AUDIOCONTROL premium 6 input 8 output dsp matrix processor

dm-608
premium 6 input 8 output dsp matrix processor
The powerful DM-608 processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.

These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level and digital audio inputs, providing up to 8 channels of output. AudioControl’s “smart user” interface contains the power of AudioControl processing through a flexible PC interface packed full of features in a simple lay out. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s.

The built in Option Port on the DM-608 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.

FEATURES
Input and Output RTA for precise and informed tuning
GTOTM Signal Sensing
MILCTM Clip Detection
AccuBASS®
Signal Summing
Signal Delay
12 and 24 dB/octave crossovers
30 band equalizer
Optional ACR-3 remote for preset recall and level control
Optional AC-BT24 Bluetooth Streamer/Programmer
DM Smart DSP app available in downloads for Mac/PC or…
specifications
inputs
Preamp Input Channels: 6
Digital Inputs: 1 x Toslink and Coax
Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ
outputs
Preamp Outputs Channels: 8
Maximum Output Level: 10 Vrms
Output Impedance: 150 Ω
performance
Total Harmonic Distortion: 0.01%
Frequency Response: 20 Hz to 24 kHz
Crossover Frequency: variable
Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
control
12 VDC Remote In
12 VDC Remote Out (always active when unit is on)
general
Power Supply: High Headroom PWM Switching
Current Draw: 1A
Recommended Fuse Rating: 3A
weights & dimensions
Dimensions: 9.4”W x 5.7”D x 1.6”H
Weight: 2.4lbs (1.1kg)
in the box: DM-608, Power and Speaker Connectors, Manual, Warranty
