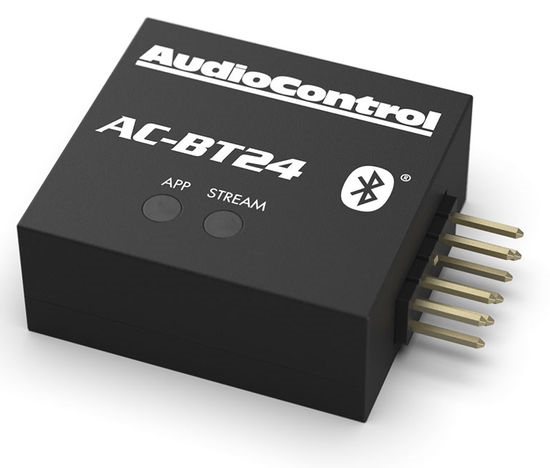

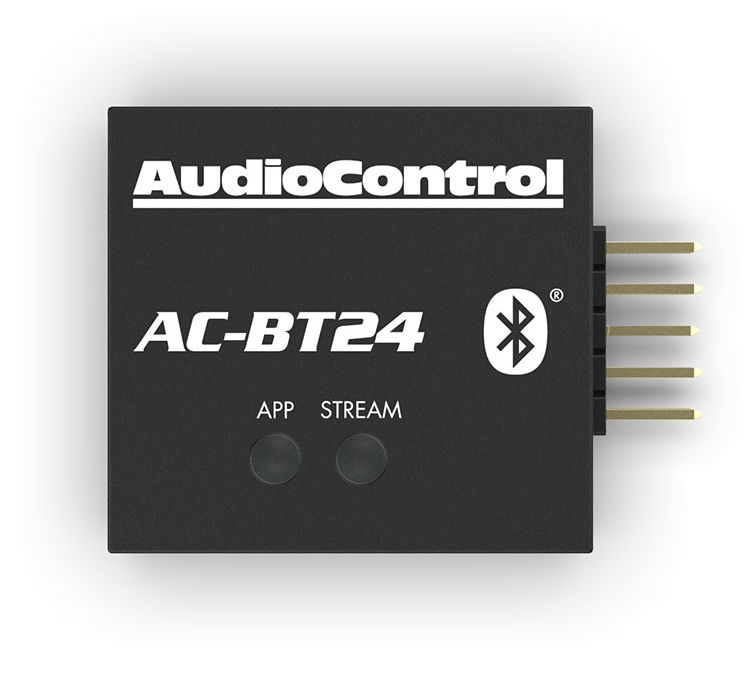

AUDIOCONTROL BT STREAM OG PROGRAMMER

AC-BT24
bluetooth® streamer & programmer
The AC-BT24 enables high definition Bluetooth® audio streaming (aptX HD support) and programming for AudioControl DSP products featuring the Option Port. Stream hires audio directly to the DM-810 and DM-608 DSP or the D-6.1200 DSP amplifier and program the DSP simultaneously. The AC-BT24 also allows for complete DSP setup and programming using the DM Smart DSP app for iOS and Android.
FEATURES
High Definition Low-Latency Audio Streaming
aptXTM HD Support
24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
Simultaneous Audio Streaming and DSP Programming

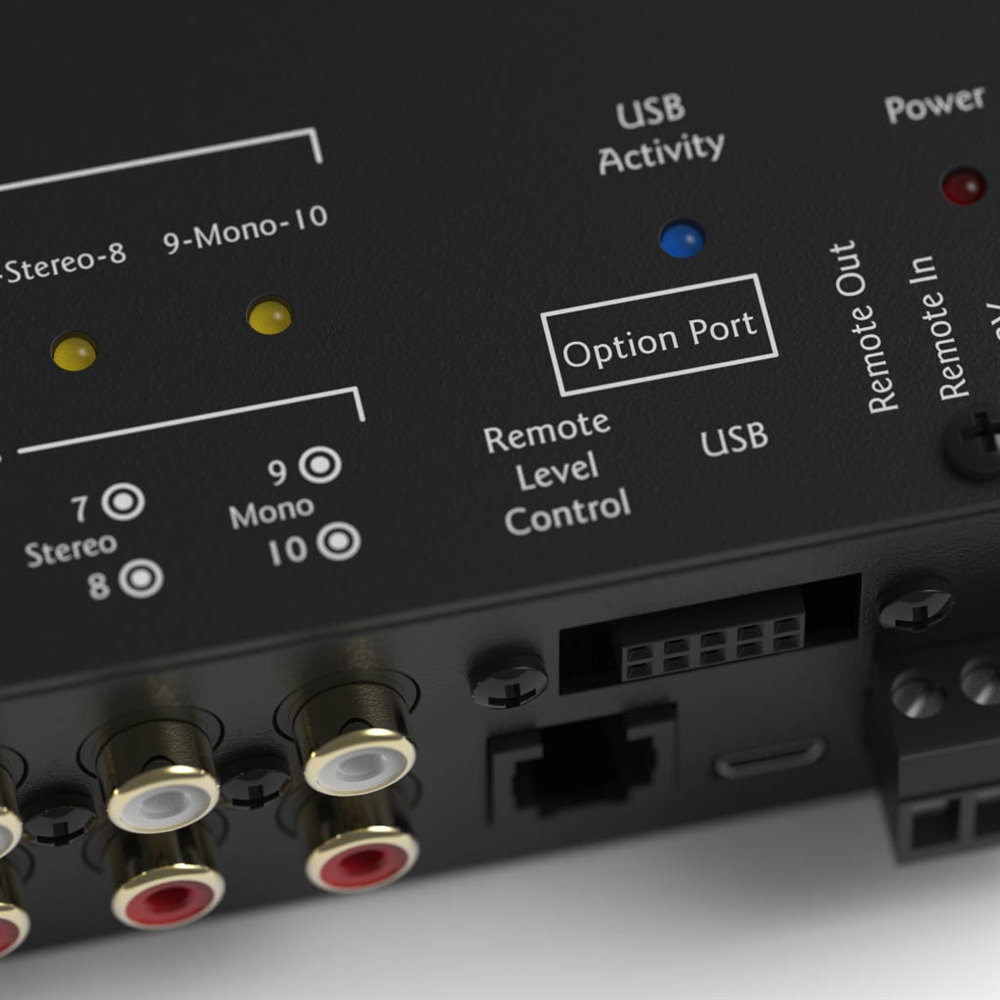

option port
The AC-BT24 connects to AudioControl products with the built-in Option Port, allowing high definition audio streaming directly into the DSP, as well as DSP set up and programming. The Option Port provides power to the AC-BT24 which can then be paired to your Bluetooth enabled phone or tablet.
SPECIFICATIONS
bluetooth
Version: 4.2
aptX HD Compatible
UART Interface
OUTPUT
Dual Differential Class AB Output Stage

PERFORMANCE
Signal to Noise Ratio: 96 dB
Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
Operating Range: 10+ meters (depending on environment)
