ATTB "Made in Germany" 3940.01
Roof antenna for radio reception
Vehicles with pitched roof
Product features:

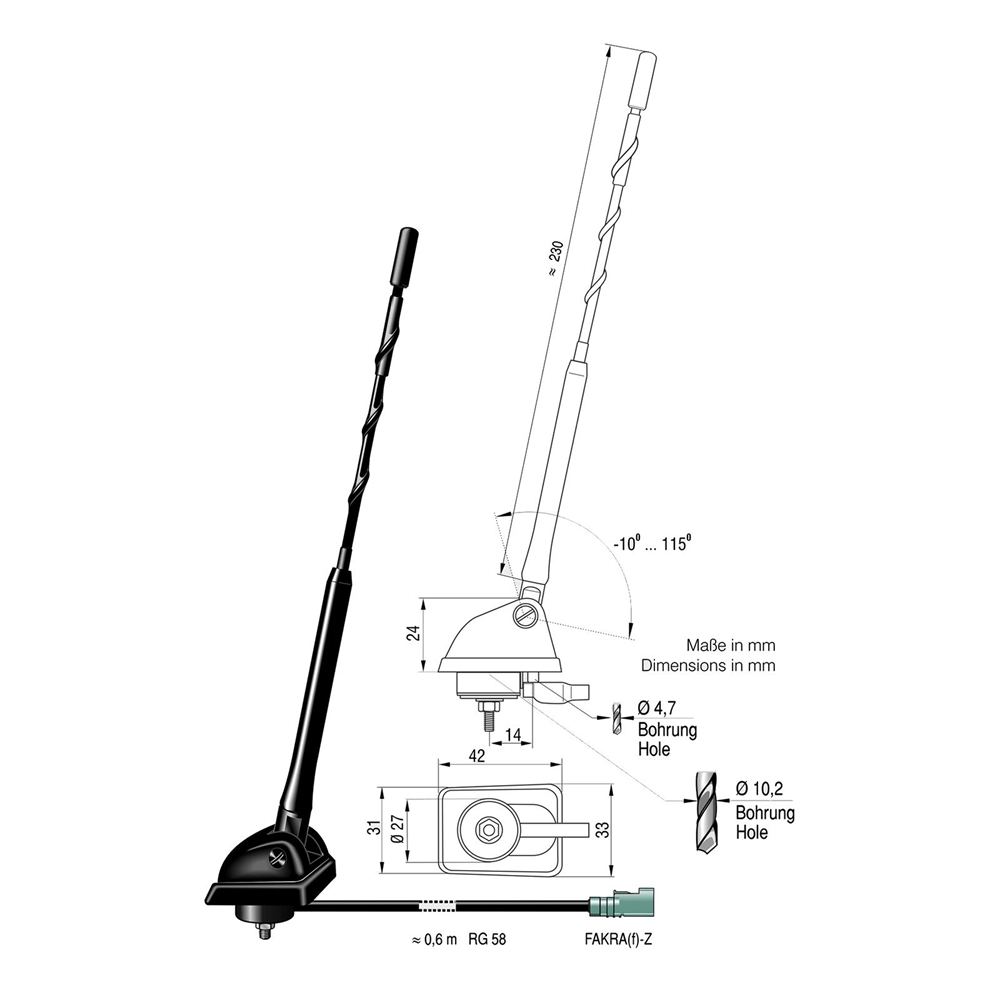

Low-noise antenna rod: 230 mm
Rod inclination: 10° - 115°
Cable type: RG 58
Services: AM/FM / DAB+
Connectors: Fakra Z(f)
Connections:
AM/FM: Fakra Z(m) water blue RG58 / L=600 mm
Frequency range:
AM: 150 kHz - 1600 kHz
FM: 87,5 MHz - 108 MHz
DAB+ B III: 174 MHz - 240 MHz
Benefit (dBi):
FM: -2 dB
DAB+ BIII: 0 dB
Impedance:
AM/FM: 50 Ohm
VSWR:
FM: <2,0:1
DAB+: <2,0:1
