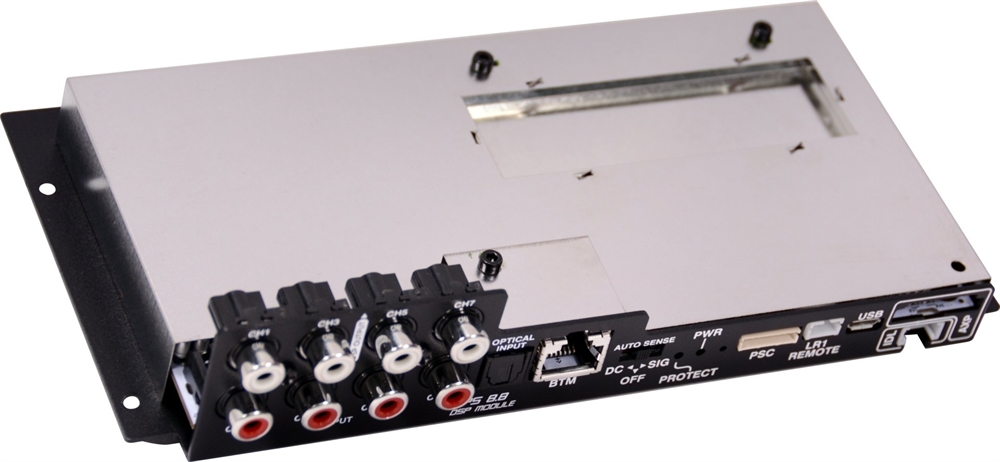

For years DSP’s have been limited to stand alone devices that required additional real-estate and sometimes expensive cables to integrate into your audio system. The IPS8.8 is ARC Audios first complete and yet optional integrated solution for today’s new ARC Audio amplifiers. Introduced as a plug and play drop in DSP solution for ARC Audio’s ARC Series amplifiers the IPS8.8 replaces the front end input board with just the removal of a few screws and connection cables and gives users the power of the new Pro-Series DSP technology developed exclusively for ARC Audio.
Designed and engineered by Robert Zeff, the all-new PRO Series DSP technology is a flexible and yet powerful platform that allows itself to be adapted to a wide variety of applications and products with zero compromise to sound quality. Capable of processing audio streams up to 192kHz at 32-bit, The ARC Audio Pro Series DSP platform raises the bar on high-end audiophile and OEM integration system tuning with three new products.
Designed and engineered by Robert Zeff, the all-new PRO Series DSP technology is a flexible and yet powerful platform that allows itself to be adapted to a wide variety of applications and products with zero compromise to sound quality. Capable of processing audio streams up to 192kHz at 32-bit, The ARC Audio Pro Series DSP platform raises the bar on high-end audiophile and OEM integration system tuning with three new products. The IPS8.8 stand-alone exhibits the latest in OEM integration capabilities along with the most extensive and finite tuning features available for today's most discriminating audiophiles. Simply, prepare for the IPS8.8 to reach your heart through music in new ways you have never experienced.
Just as with the PS8 the power of tuning has been left in the hands of the installer and user without the intervention of engineered auto-processing leaving you with only 80% of your systems capability. Featuring 248-bands of Third Octave -or- Parametric equalization with adjustments up to +20dB/-24dB per band in 1/10thdB increments by either individual band/global/mix adjustments, Output signal delay up to 30ms per channel, output phase 0/180 degrees per channel, Input and Advanced output signal mixers, output trim controls and one of the most extensive selections of crossover damping types and mixed slops available of any processor in the 12V market.
Need more? Integrating into your OEM system? No problem!
All of the new Pro series DSP models come MAESTRO AR compatible! With the Maestro AR interface module, Maestro T-Harness, and a data cable the AR module allows for an easy plug and play interface to a wide variety of currently OEM amplified vehicles while retaining all of your vehicle’s OEM controls and features. The IPS8.8 is also equipped with the latest in signal sensing technology capable of detecting DC or Signal based signals and with a plethora of customized signal and timing controls the PS8-Pro makes integrating into your vehicles existing audio system a snap!
Looking for more? The IPS8.8 has too many options to list. Check out the specifications page for the IPS8.8, download the software and check it out! http://ps8.arcaudio.com/k2/PS8_Pro_Setup.msi
Processor Type
Front end amp module (ARC Series amps only)
Compatible With-
ARC 1000.2, ARC 1000.4, ARC 1000.6 ONLY
Processor Resolution
Fixed Point Native 32-Bits
Sample Rate
96kHz/192kHz
Analog Inputs
8 ch. Differential in (RCA or Speaker Level)
Input Sensitivity
.5V - 32V RMS
Digital Inputs
TOSLink
Auto-sense Turn-On
Yes, Signal & DC (BTL) (Uses Ch 1/2 Inputs Only)
Outputs (RCA)
N/A
Outputs Voltage (RCA)
N/A
Input Impedance (rca)
10k ohms
Frequency Response
2Hz - 23.5kHz
S/N Ratio 1V 1:1
107.1dBdB
S/N 4V 1:1
108.dBdB
Operating Voltage
6V - 17.0V (Start Stop Compliance to 4.5V)
Output Equalization
248 Bands 1/3rd Octave (linkable) -or- 248 Bands variable Parametric EQ
Output Equalization Resolution
1/10th dB per step +20dB / -24dB
Output Signal Delay
Up to 30ms per channel in .01ms increments (Fixed Point Delay)
Input Signal Mixer
Yes - 10-Channels In (Including Digital) x 10-Channels Out (Including Up-Mixer Out)
Advanced Mixer (Output Signal Mixer)
Yes, When Selected
Easy-to-use Mixer Assistant
Yes, Exclusive to the PS8-Pro, PS8-50 and IPS8.8
Crossovers
Phase Correct AP/HP/LP/BP all channels
Crossover Slopes
6dB, 12dB, 18dB, 24dB, 30dB, 36dB, 42dB, 48dB Slopes all bands all channels
Crossover Types
Butterworth, Linkwitz-Riley, Bessel, Variable Q, Chebyshev (all channels all bands)
Crossover selectable frequencies
10Hz - 20kHz in .01 Hz increments)
Output Signal up mixer
Yes
Input Signal Equalization
12 Bands Parametric (linkable) Per Channel
Input Equalization Resolution
1/10th dB per step +20dB / -24dB
Input Equalization All Pass Filters
Yes - Individual per input EQ band
Input Signal Delay
Yes - Up to 11.04ms per channel input
Presets
Up to 4-Presets
Hi-Res Bluetooth (Streaming Audio)
Yes - Requires ARC BTM & BDM (Both Required) (Sold Separately) COMING SOON
External Remote Level Control
Yes (ARC PSC or LR1) (Sold as an accessory, not included)
AXP WiFi control adapter card
Exclusive to the Pro Series DSP's (Sold Separately)(COMING SOON)
Preset selection without controller use
Yes - Optional manual trigger switches +/- for up to 4 presets (Not Included)
Remote Turn-On Output Controls
Turn on Output (up to 40ms), Turn-on Hold (up to 40ms), Auto-sense hold time (up to 200ms)
Remote Turn-On Output On/Off lead timing control
Remote on/off adjustable up to 40ms each
Maestro AR Module interface capable
Yes - Requires Maestro T-Harness and data cable for connection (Coming Soon)
Expansion Capability (8-CH, 16-CH, 24-CH
PS8-Pro can be ran in multiples with individual USB connections to a single PC with single operating software being used
Software Interface
Windows PC Required (Windows 8 & Windows 10)
Windows OS Notice
Note that the Pro-Series software is ONLY recommended for use with authentic licensed versions of the Windows Operating system. Use of counterfeit, cracked or hacked versions are not guaranteed to work and can cause unwanted and/or undesired results while using any ARC branded DSP or ANY DSP on the market. Use of anything other than an authentic licensed version of Windows will void ALL warranty and support of ARC Audio DSP products and its user interface
