ARC AUDIO 8 KANAL DSP FORSTÆRKER

Samme funktioner som ps8-pro
8 x 50W rms eller 4 x 50 + 2 x 200 samt 2 kanals udgang

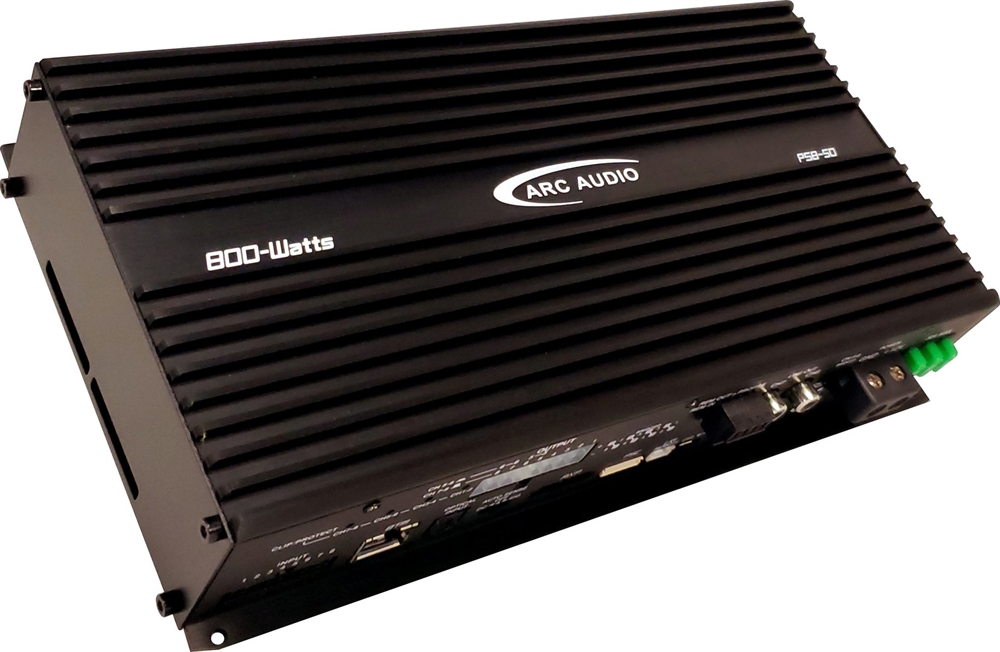

The PS8-50 is an incredibly compact 8-channel amplifier that boasts the full suite of Pro-Series signal process in a compact chassis that will fit under the seat in or a storage compartment in almost any vehicle. Each channel of the PS8-50 will deliver up to 100 Watts of power and pairs of channels can be bridged to deliver an impressive 200 watts into a 4-Ohm Load. Finally, as the heart of an elaborate 4-way system, the PS8-50 includes a pair of stereo outputs that can drive an external amp while channels 5 and 6 of the processor are used in a bridged configuration to power a mid-bass driver or similar application that required large amounts of power.

Integration capabilities along with the most extensive and finite tuning features available for today's most discriminating audiophiles. Simply, prepare for the PS8-50 to redefine the industry standards for all-in-one compact amplifier/DSP technology giving you the tools to reach your heart through music in new ways you have never experienced.

Understanding that every vehicle is different and today's vehicles sometimes offer less and less space for aftermarket audio systems. With space at a premium and vehicle owners becoming more critical on the amount they can give up for audio components the ability to design a super compact amplifier with today's most advanced OEM integration tools is more important than ever.

Designed and engineered by Robert Zeff, the all-new PRO-Series DSP technology is a flexible and yet powerful platform that allows itself to be adapted to a wide variety of applications and products with zero compromise to sound quality. Capable of processing audio streams up to 192kHz at 32-bit, The ARC Audio Pro-Series DSP platform raises the bar on high-end audiophile and OEM integration system tuning with three new products. The new PS8-50 stand-alone exhibits the latest in OEM integration capabilities along with the most extensive and finite tuning features available for today's most discriminating audiophiles.

Just as with the PS8 the power of tuning has been left in the hands of the installer and user without the intervention of engineered auto-processing leaving you with only 80% of your systems capability. Featuring 248-bands of Third Octave -or- Parametric equalization with adjustments up to +20dB/-24dB per band in 1/10thdB increments by either individual band/global/mix adjustments, Output signal delay up to 30ms per channel, output phase 0/180 degrees per channel, Input and Advanced output signal mixers, output trim controls and one of the most extensive selections of crossover damping types and mixed slops available of any processor in the 12V market.

Need more? Integrating into your OEM system? No problem!

All of the new Pro-Series DSP models come MAESTRO AR compatible! With the Maestro AR interface module, Maestro T-Harness, and a data cable the AR module allows for an easy plug and play interface to a wide variety of currently OEM amplified vehicles while retaining all of your vehicle’s OEM controls and features. The PS8-50 is also equipped with the latest in signal sensing technology capable of detecting DC or Signal based signals and with a plethora of customized signal and timing controls the PS8-50 makes integrating into your vehicles existing audio system a snap!

Looking for more? The PS8-50 has too many options to list. Check out the specifications page for the PS8-50, download the software and check it out!
8-Channels @ 4-Ohms (Ch 1-8)
50 Watts
8-Channels @ 2-Ohms (Ch 1 - 8)
100 Watts
4-Channel @ 4-Ohms (Ch 1-4 Bridged)
200 Watts
Amplifier Frequency Response
10Hz - 30kHz
Fuse
3 x 30 Amp
DSP
Built In
Processor Resolution
Fixed Point Native 32-Bits
Sample Rate
96kHz/192kHz
Analog Inputs
8 ch. Differential in (RCA or Speaker Level)
Input Sensitivity
.5V - 32V RMS
Digital Inputs
TOSLink
Auto-sense Turn-On
Yes, Signal & DC (BTL) (Uses Ch 1/2 Inputs Only)
Outputs (RCA)
2-Channels (Supplemental Ch 7/8)
Outputs Voltage (RCA)
Up to 8V
Input Impedance (rca)
10k ohms
Frequency Response
2Hz - 23.5kHz
S/N Ratio 1V 1:1
107.1dBdB
S/N 4V 1:1
108.dBdB
Operating Voltage
6V - 17.0V (Start Stop Compliance to 4.5V)
Output Equalization
248 Bands 1/3rd Octave (linkable) -or- 248 Bands variable Parametric EQ
Output Equalization Resolution
1/10th dB per step +20dB / -24dB
Output Signal Delay
Up to 30ms per channel in .01ms increments (Fixed Point Delay)
Input Signal Mixer
Yes - 10-Channels In (Including Digital) x 10-Channels Out (Including Up-Mixer Out)
Advanced Mixer (Output Signal Mixer)
Yes, When Selected
Easy-to-use Mixer Assistant
Yes, Exclusive to the PS8-Pro, PS8-50 and IPS8.8
Crossovers
Phase Correct AP/HP/LP/BP all channels
Crossover Slopes
6dB, 12dB, 18dB, 24dB, 30dB, 36dB, 42dB, 48dB Slopes all bands all channels
Crossover Types
Butterworth, Linkwitz-Riley, Bessel, Variable Q, Chebyshev (all channels all bands)
Crossover selectable frequencies
10Hz - 20kHz in .01 Hz increments)
Output Signal up mixer
Yes
Input Signal Equalization
12-Bands Parametric (linkable) Per Channel
Input Equalization Resolution
1/10th dB per step +20dB / -24dB
Input Equalization All Pass Filters
Yes - Individual per input EQ band
Input Signal Delay
Yes - Up to 11.04ms per channel input
Presets
Up to 4-Presets
Hi-Res Bluetooth (Streaming Audio)
Yes - Requires ARC BTM & BDM (Both Required) (Sold Separately) COMING SOON
External Remote Level Control
Yes (ARC PSC or LR1) (Sold as an accessory, not included)
AXP WiFi control adapter card
Exclusive to the Pro Series DSP's (Sold Separately)(COMING SOON)
Preset selection without controller use
Yes - Optional manual trigger switches +/- for up to 4 presets (Not Included)
Remote Turn-On Output Controls
Turn on Output (up to 40ms), Turn-on Hold (up to 40ms), Auto-sense hold time (up to 200ms)
Remote Turn-On Output On/Off lead timing control
Remote on/off adjustable up to 40ms each
Maestro AR Module interface capable
Yes - Requires Maestro T-Harness and data cable for connection
Expansion Capability (8-CH, 16-CH, 24-CH
PS8-50's can be ran in multiples with individual USB connections to a single PC with single operating software being used
Software Interface
Windows PC Required (Windows 8 & Windows 10)
Windows OS Notice
Note that the Pro-Series software is ONLY recommended for use with authentic licensed versions of the Windows Operating system. Use of counterfeit, cracked or hacked versions are not guaranteed to work and can cause unwanted and/or undesired results while using any ARC branded DSP or ANY DSP on the market. Use of anything other than an authentic licensed version of Windows will void ALL warranty and support of ARC Audio DSP products and its user interface
Dimensions
10.35”(L) x 5.7”(W) x 3.8”(H
