VIDEO IN FAKRA (HAN) - RCA (HAN) ELLER ANTENNEADAPTER

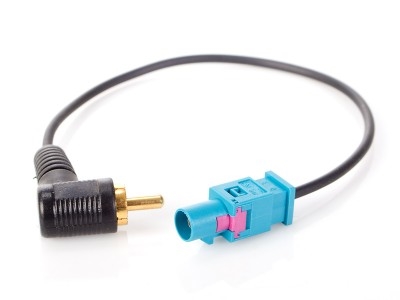

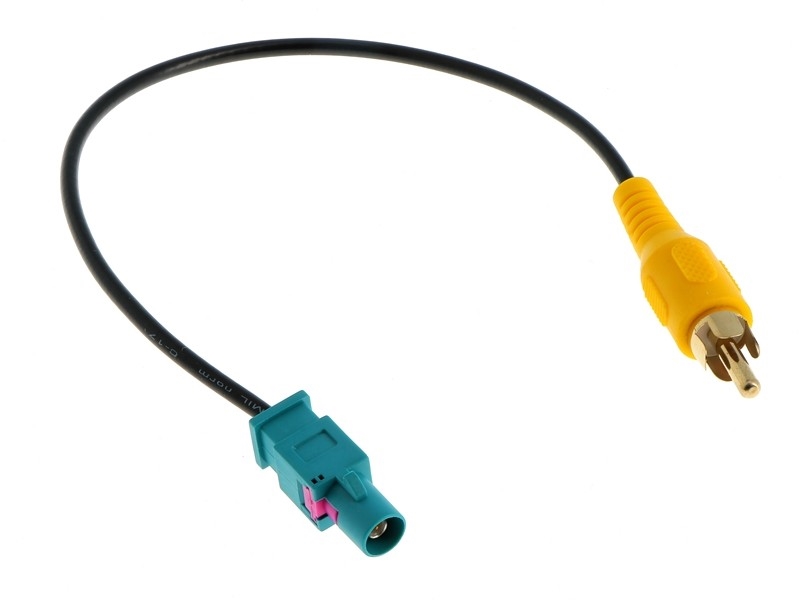

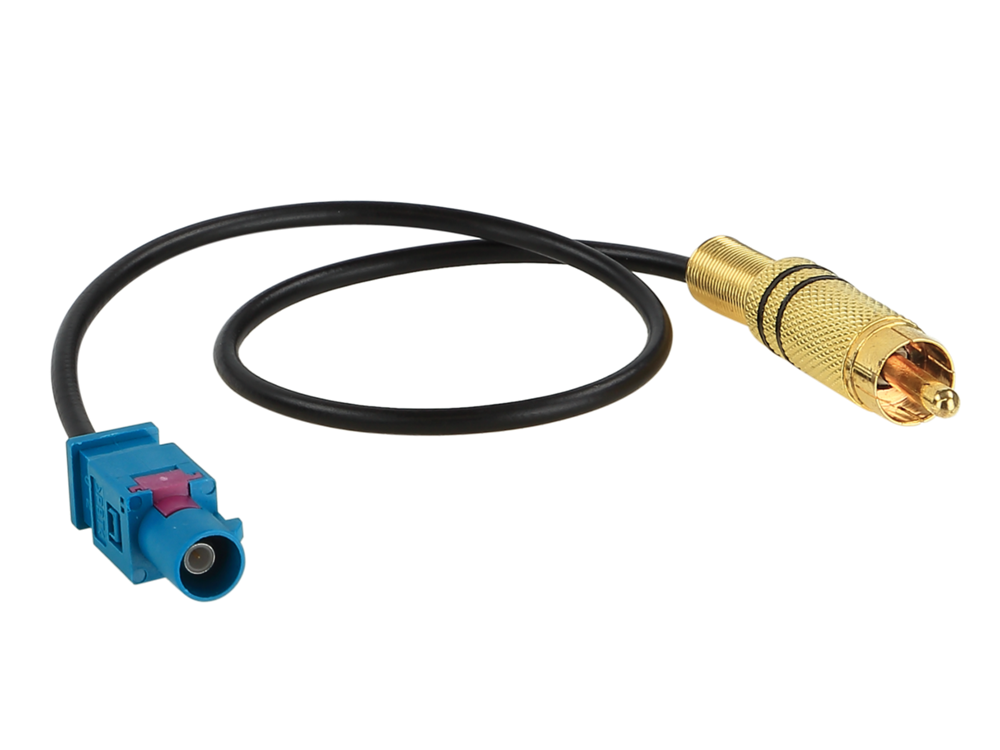

Video in fakra til rca,25cm langt. Bruges når man skal have bakkameraet på eftermonteret radio

Rear view camera adapter Ford / Mercedes / Porsche / VW

Rear view camera adapters are required to maintain the OEM rear view camera.

These allow the connection of a factory pre-equipped camera to an aftermarket device with camera input.

Depending on the vehicle and equipment, the adapter provides the video signal RCA, a power supply +6V/ground for the OEM camera and the +12V revere gerar signal or this must be connected in the vehicle.

Vehicles with a 360° camera system or systems with moving distance lines may not be compatible.

Before installation check the correct assignment of the adapter to the OEM connector.

Many retrofit devices must be set to the camera function in the menu.

connector: Fakra(m) (CODE Z UNIVERSAL)
connector: OEM rear view camera > RCA(m) rear view camera input aftermarket HU

cable length: 25 cm

vehicles with OEM rear view camera

depending on the aftermarket HU > installed camera image not available:
connect an additional GND contact to the RCA outer conductor

Use case:

rear view camera > rear view camera input aftermarket device

Vehicle Application:

Ford Blaupunkt OEM Sat Nav

Mercedes Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav
Mercedes A-class (C169/W169) 10/2004 - 04/2008
Mercedes A-class (C169/W169) 06/2008 - 06/2012
Mercedes B-class (T245) 07/2005 - 04/2008
Mercedes B-class (T245) 04/2008 - 09/2011
Mercedes C-class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes CLC-class (CL203) 06/2008 - 02/2011
Mercedes CLK-class (W209) 04/2005 - 01/2010
Mercedes CLS-class (W219) 10/2004 - 06/2008
Mercedes CLS-class (C219) 04/2008 - 09//2010
Mercedes E-class (S211/W211) 03/2002 - 02/2008
Mercedes E-class (S211/W211) 03/2008 - 01/2009
Mercedes G-class (W463) 04/2007 - 06/2008
Mercedes G-class (W164) 09/2008 - 06/2012
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (W164) 07/2005 - 04/2008
Mercedes M-class (W164) 10/2008 - 07/2011
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-class (W251) 09/2005 - 05/2007
Mercedes R-class (W251) 05/2007 - 05/2010
Mercedes SL-class (R230) 03/2006 - 02/2008
Mercedes SL-class (R230) 04/2008 - 12/2011
Mercedes SLK-class (R171) 03/2004 - 03/2008
Mercedes SLK-class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
Mercedes Vito (W447) 10/2014 - 02/2019
Mercedes Vito (W447) 05/2019 - 2023*

Porsche PCM2.0 / PCM2.1 OEM Sat Nav
Porsche 911 (997) 07/2004 - 08/2009
Porsche Boxster (987) 10/2004 - 01/2009
Porsche Cayenne (9PA/955) 09/2002 - 12/2006
Porsche Cayman (987C) 11/2005 - 01/2008

VW 2-DIN OEM Sat Nav
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

*vehicles with Garmin Audio 30 OEM Sat Nav with camera range adjustable not supported
