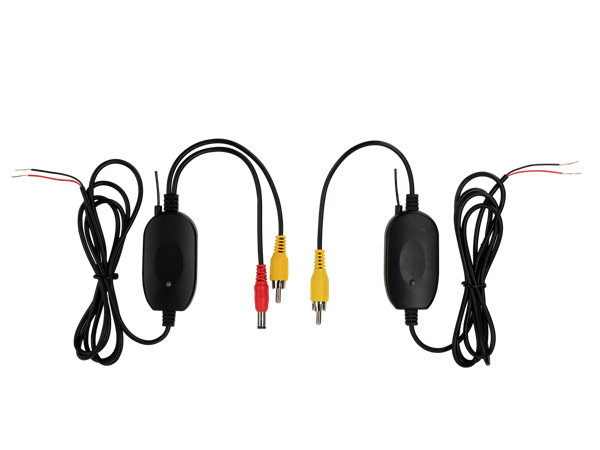

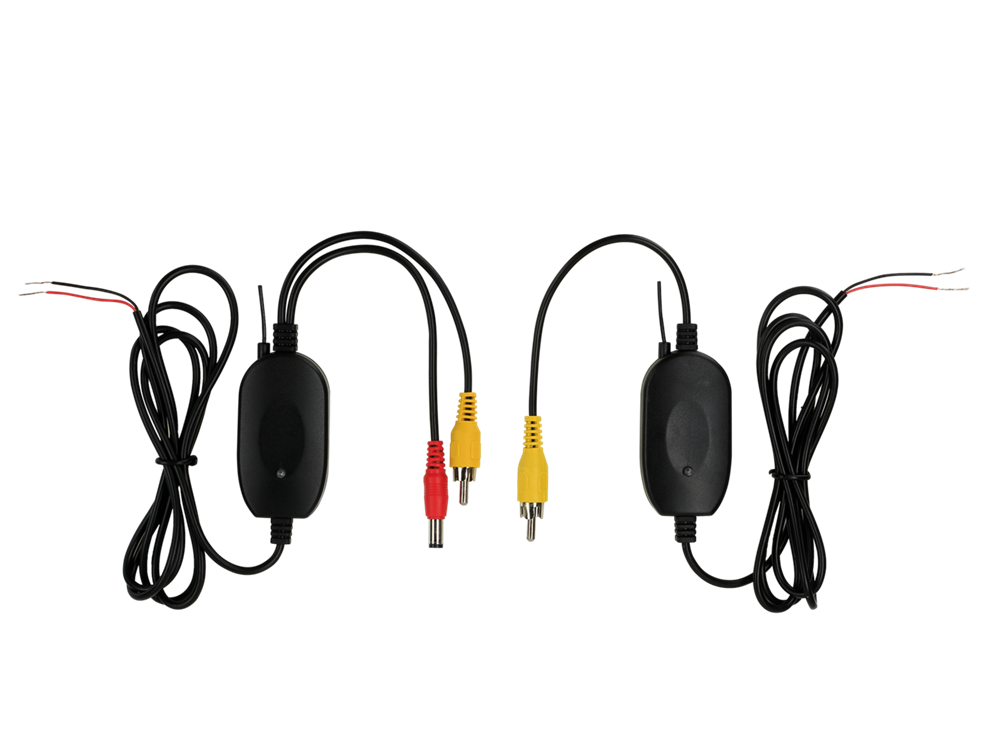

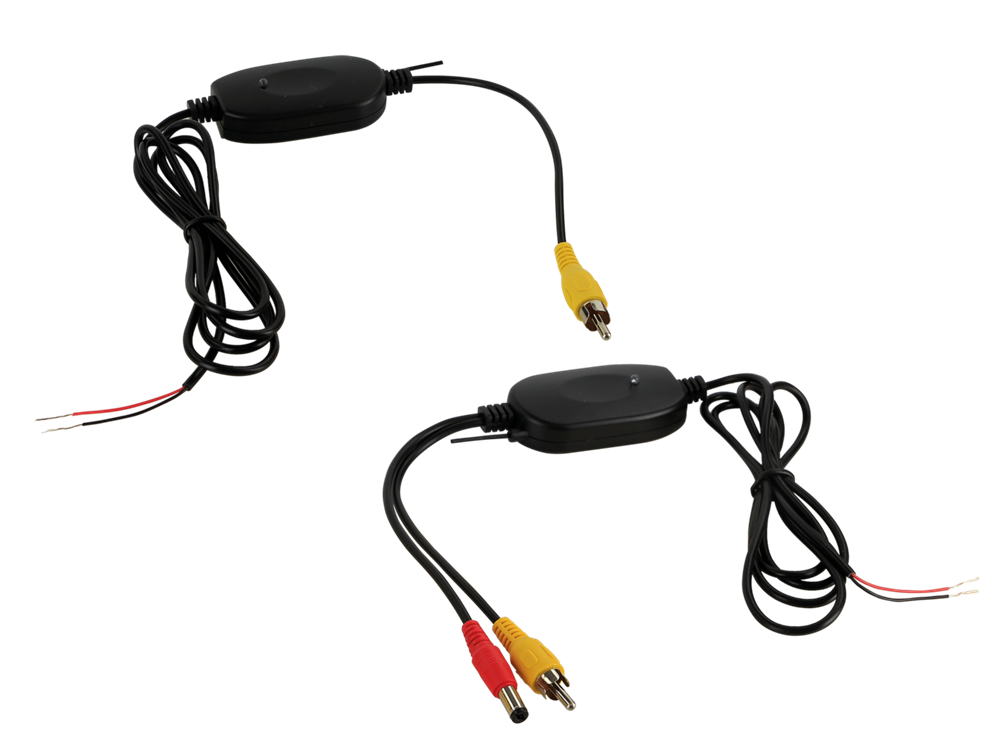

ANALOG VIDEO TRANSMITTER TIL BAK KAMERAER

Video Transmitter analog universal

Video transmitter for analog radio transmission of NTSC video input signals.

There is no need for time-consuming cable laying during camera installations for signal transmission.

Analog video transmitters are suitable for short distances without obstacles.

In contrast to digital video transmissions the signal can be received by several receivers in an analog transmission.

Interference from other analog transmitters in the same frequency range such as surveillance cameras in parking garages or car parks into the system is possible.

Note:

red: +12V switched fused
black: GND clamp 31 car body direct

transmitter supply input alternatively: +12V system plug

recommended mounting:

camera and transmitter: same power and GND connection
monitor and reciver: same power and GND connection
mounting location: open without obstacles vehicle interior

Product characteristics:

Design: Plastic
Color: black
Transmission: NTSC analog
Power supply: +12V DC
Range in optimal environment: up to 10 Meter
Frequency range: 2.4GHz - 2.843 GHz
Measurements: L / W / H - 60mm / 30mm / 18mm
