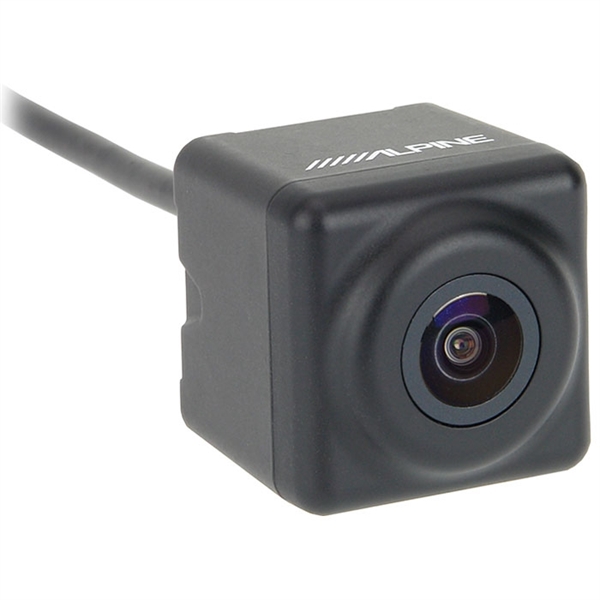

ALPINE HCE-C1100D HDR KAMERA DIRECT POWER

FEATURES
General
Rearview Image

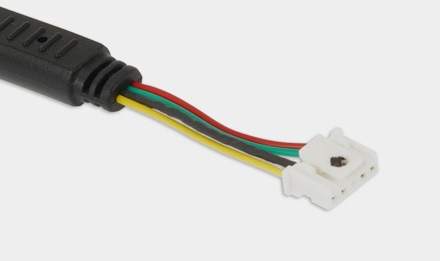

Direct Camera Connection
Vehicle Reverse Signal Synchronization
Camera
Mirror Image Output
Color CMOS Image Sensor
Automatic Exposure Adjustment
Automatic White Balance Adjustment
Internal Synchronization
SPECIFICATIONS
Dimensions
Camera: 23.6x 23.6x 24.0mm (excluding projection on the rear)
Camera Cable Length: 0.5m
Camera Extension Cable Length: 10.5m
General
Power Requirement: 6.0 V.DC
Negative Ground
Max. Power Consumption: 0.5W
Weight Camera: 27g (including cable)
Camera
Output Image: Mirror Image, Composite Video (NTSC Color Signal System)
Image Output: 1 Vp-p (75 Ohms)
Image Sensor: 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
Lens Focal Length: f=1.34mm
Lens Brightness: F=1:2.0
Angle of Field: Horizontal = 131°, Vertical = 103°
S/N Ratio: 40.5 dB or more
Resolution (Horizontal. Center Area): 330 TV Lines
Operating Temperature: -30°C - +70°C
Illumination Range: Approximately 1.5 to 100klx
