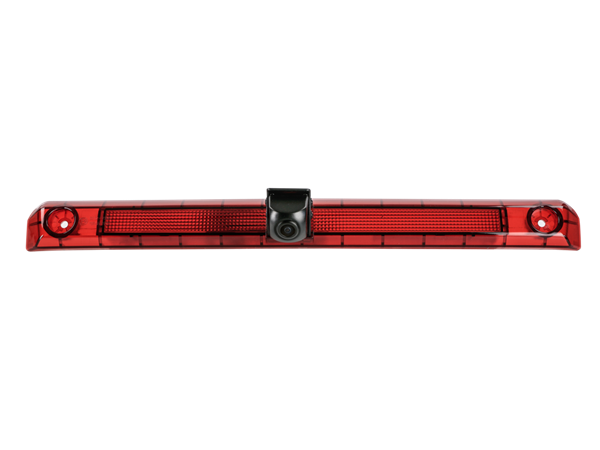

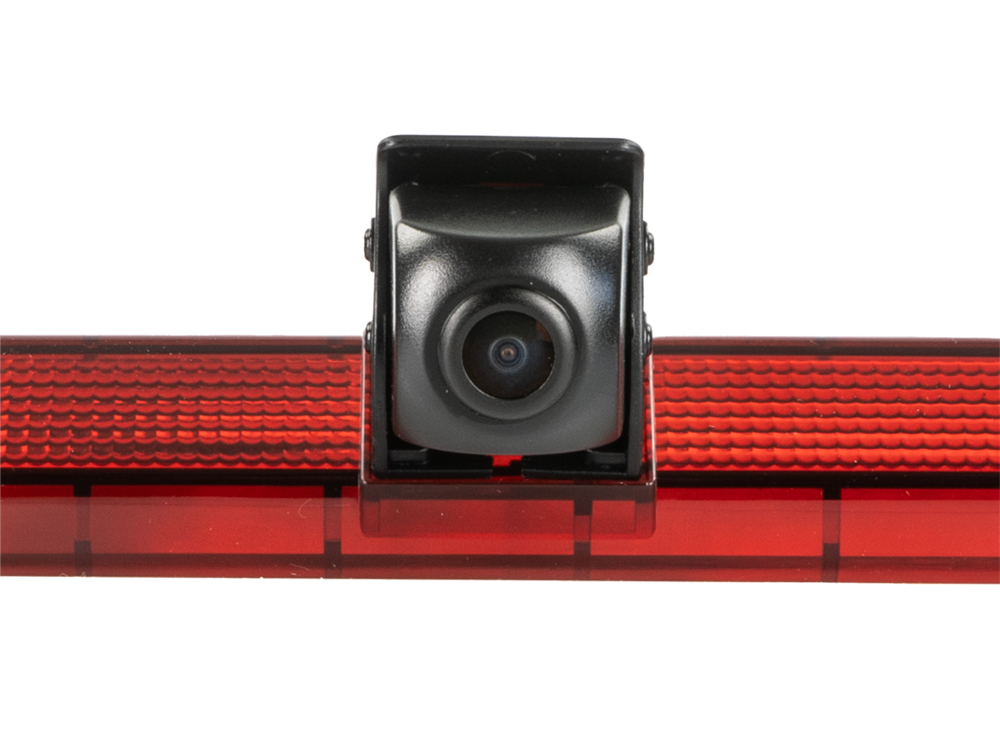

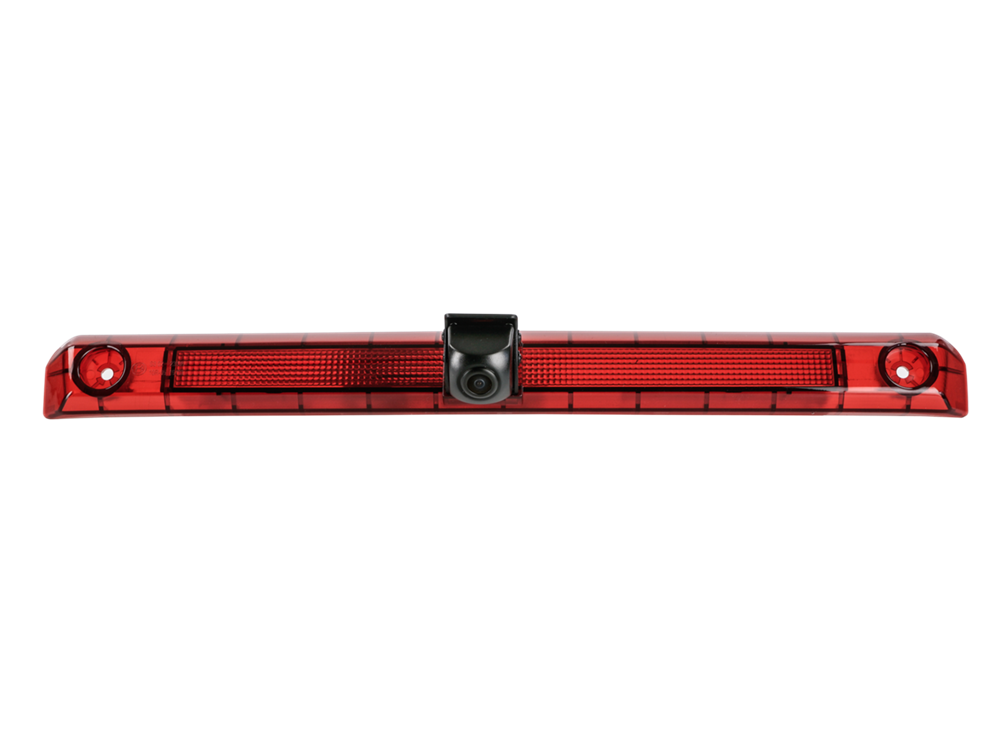

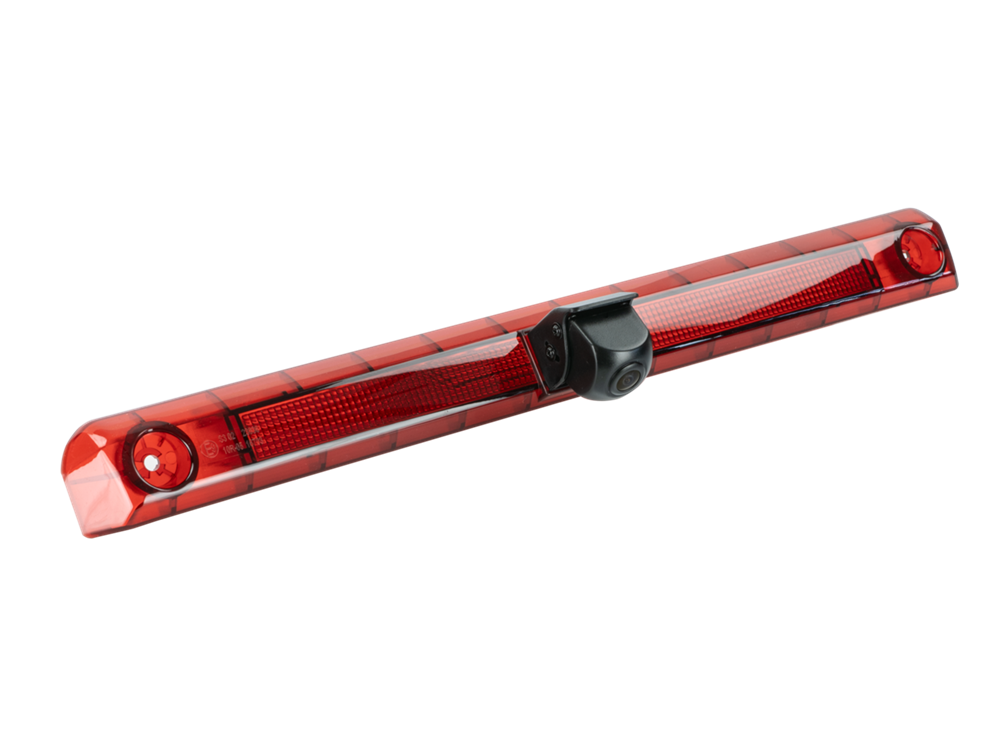

Rear view camera Nissan /Renault
Nissan Interstar (NDA/NDB/NDC) 10/2024 - 2025
Nissan Interstar-e (NDA/NDB/NDC) 11/2024 - 2025
Renault Master (RDA) 09/2024 - 2025
Renault Master E-Tech (RDA) 10/2024 - 2025
to replace the OEM 3rd brake light diffuser
with guiding lines / adjustable view angle
Note:
before installation > check the viewing angle and camera alignment at the installation site with a test monitor
camera operating voltage: +3V
camera power supply: +12V / +24V
connection without voltage converter +3V in scope of delivery damages the camera
connection:
red: +12V switched load-stable fused
black: car body direct groud/GND
RCA(m) yellow: video
jumper:
white: guiding lines activate/deactivate
Product characteristic camera:
Design: plastic
Color: black / red
Extras: guiding lines via jumper / adjustable view angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 12,6mm
Min.Lux: 0,1 Lux
Resolution: 600 TV lines
View angle: horizontal 115° vertical 75° +5°
IP Rating: IP67
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +12V DC
Power supply: +3V DC
Current consumption: 150mA during active night vision function
Operating temperature: -20°C - 70°C
Storage temperature: -40°C - 80°C
Measurements: OEM 3´rd brakelight

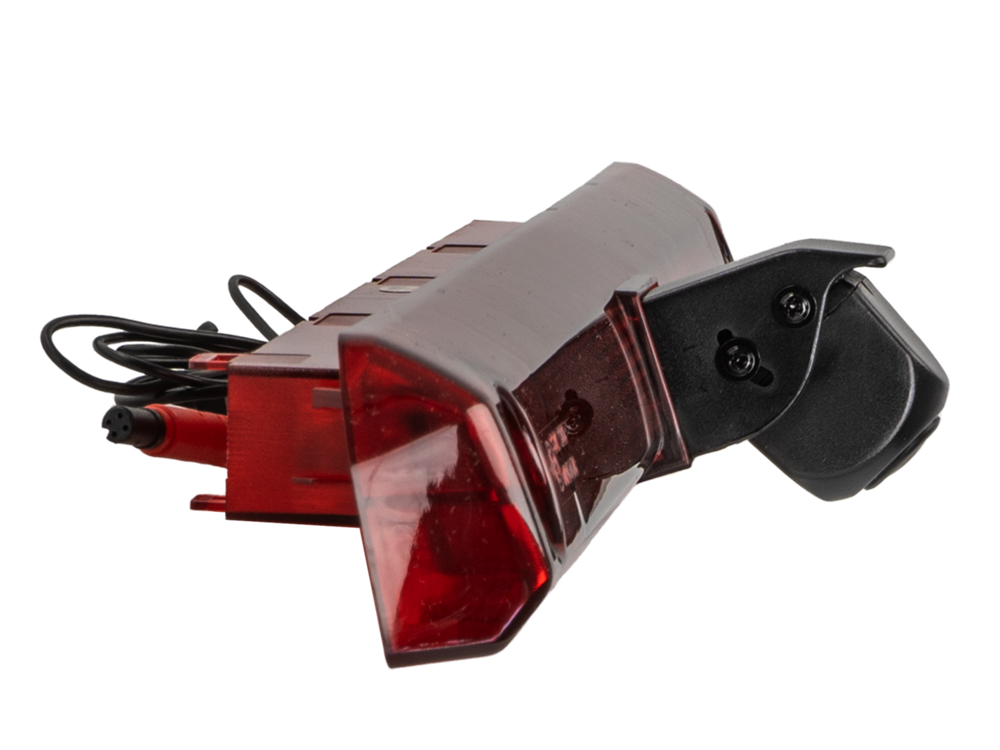

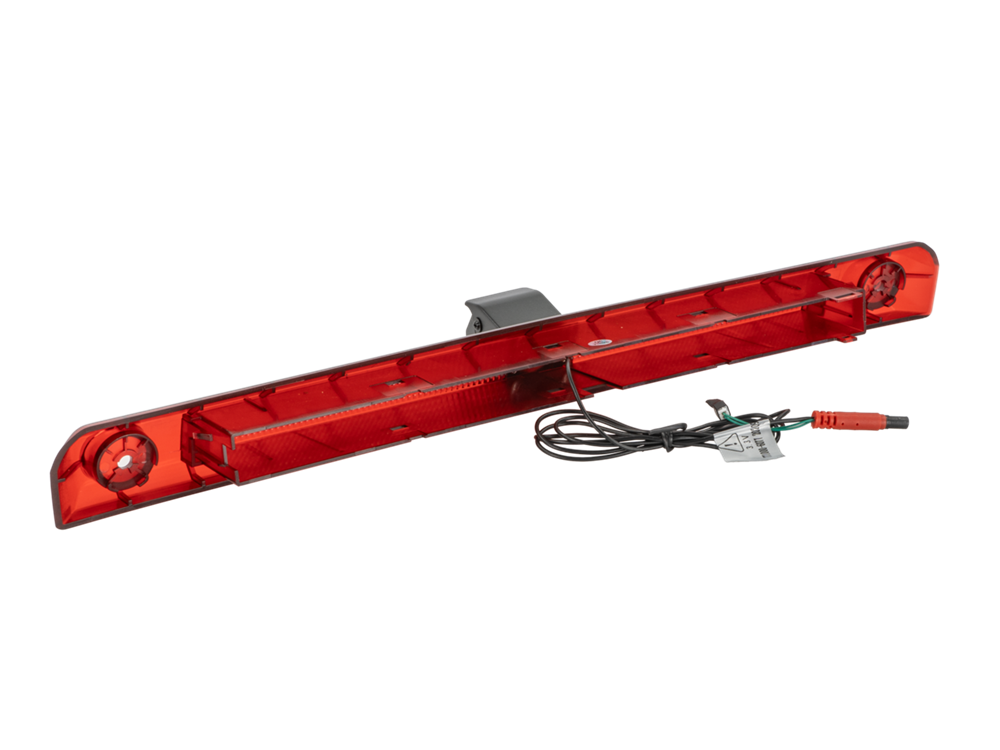

Pigtail at the camera 3,3m +/-:
4 Pin acv-system connector(m) Ø5,2mm
1 jumper

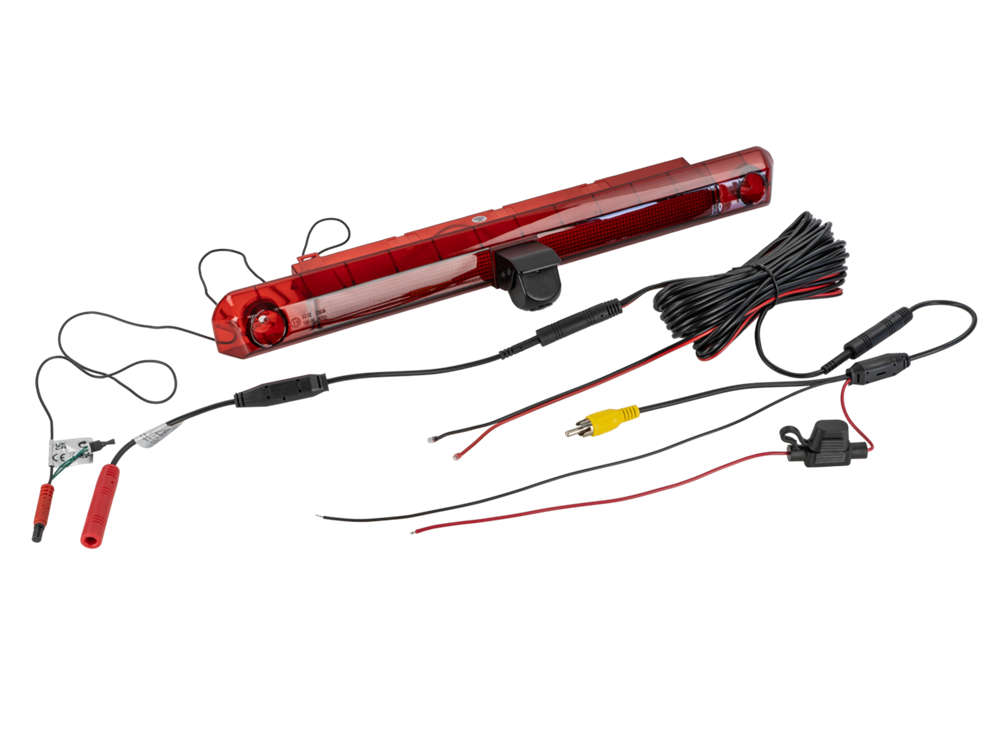

Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
Extension cable 10m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor
Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
