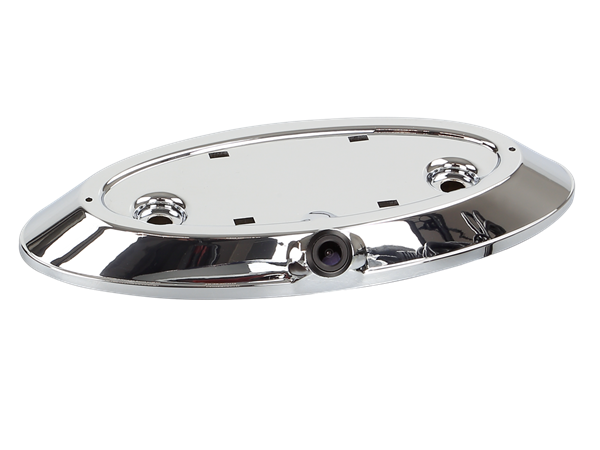

ACV KAMERA FORD

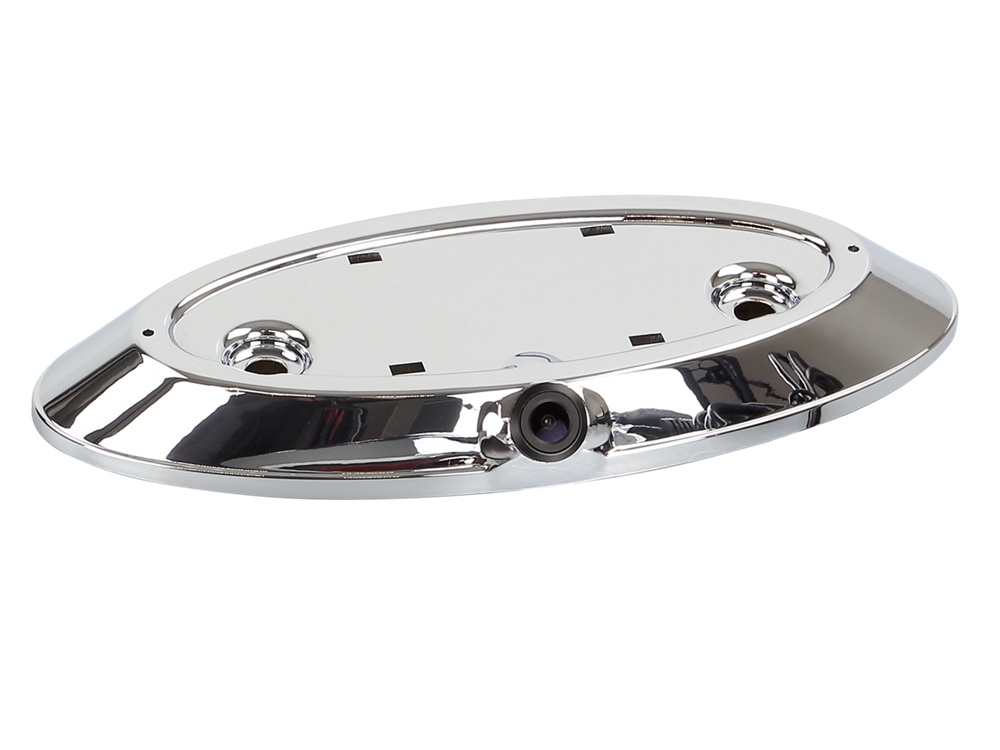

Rear view camera

Ford F-150 2008-2017
Ford Super Duty 2011-2016
Ford Ranger 2016-2021

to replace the OEM Ford logo at the tail gate
with guiding lines

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic
Color: Chrom/black

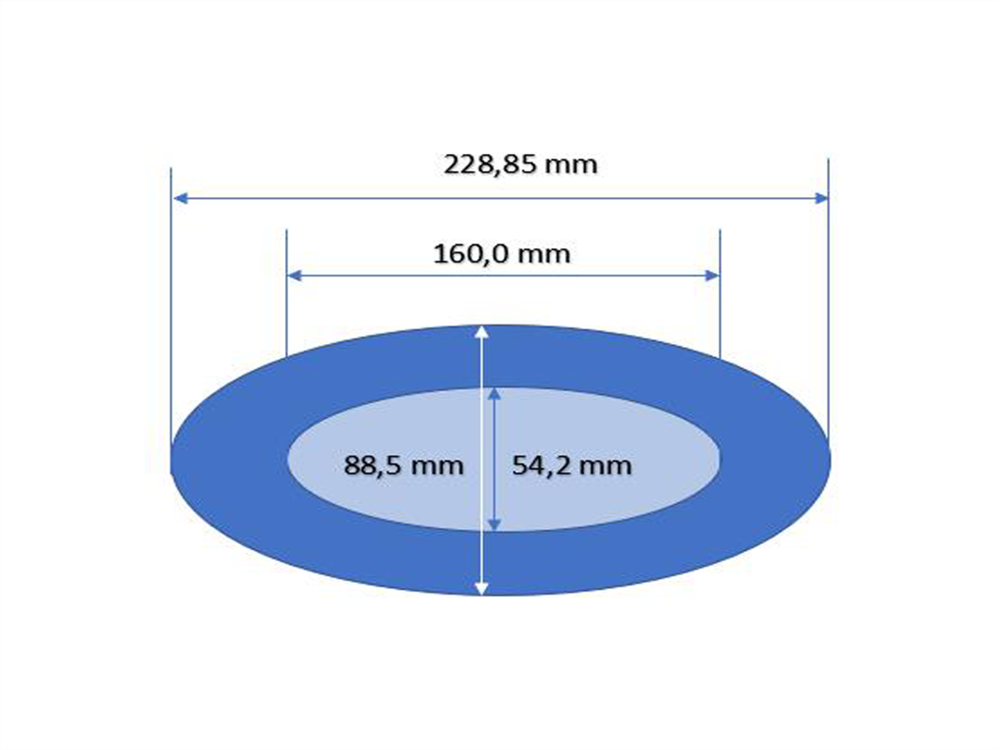

Dimension Emblem: length 228,85 mm / hight 88,5 mm
Dimension Logo: 160 mm / high 54,2 mm
Extras: OEM Ford logo design, guiding lines via jumper

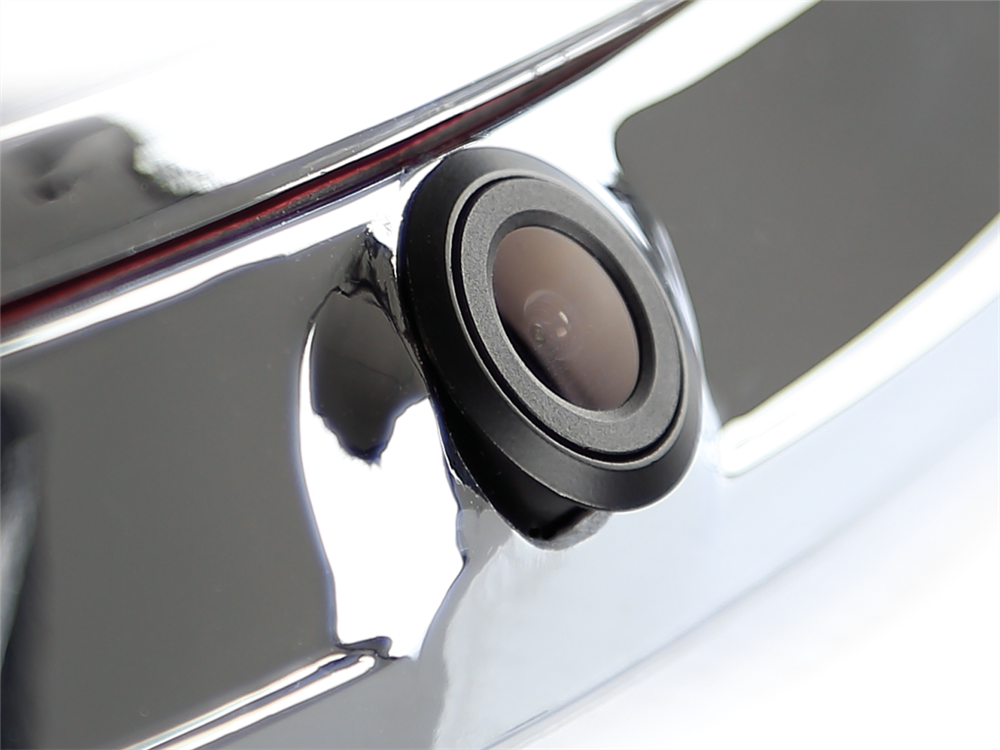

Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 1,9mm / F 2.0
Resolution: 600 TV lines
Lens angle diagonal: 170° + 5°
View angle: horizontal 150° vertical 90° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: DC 12V + 10%
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C
Measurements: see 3´rd OEM brake light

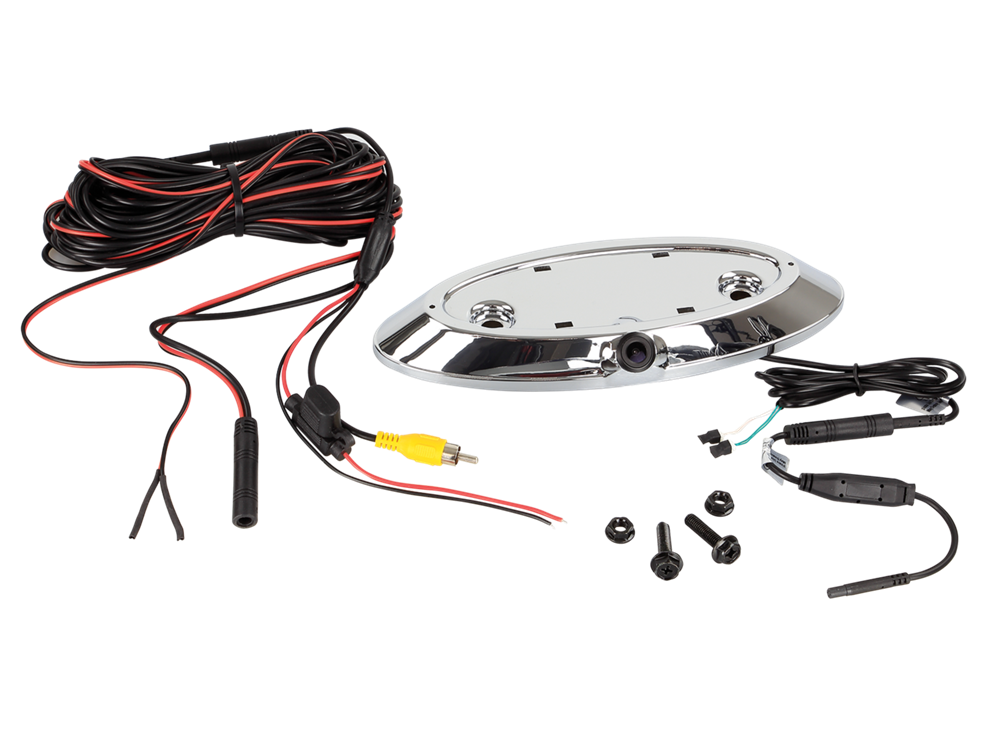

Pigtail at the camera:

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 1 jumper

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
