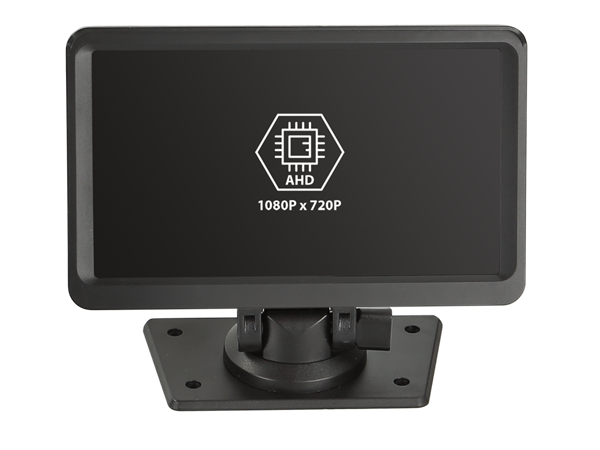

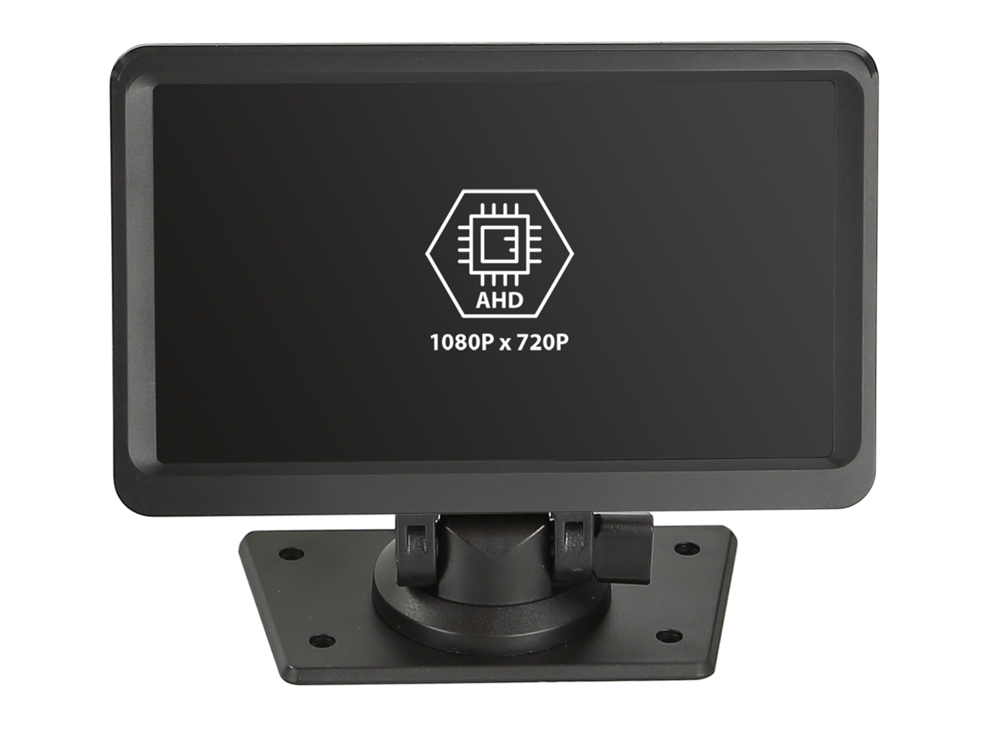

7" UNIVERSAL AHD MONITOR MED 2 VIDEO INDGANGE

Monitor 7" AHD universal

Monitor:

7" AHD / 2 video inputs / TFT 16:9 AHD high resolution / automatic input signal detection / low tare weight / plain design

Product characteristic monitor:

Design: plastic with 1 x pedestal with patent fastening > screw fastening / 1 x pedestal with patent fastening > adhesive fastening / 1 x windscreen mount with patent fastening > suction cup holder

Color: black

Extras: glare protection / automatic input signal detection > video 2 input / manual switching of video inputs with memory function / high-low voltage protection / short circuit protection / settings on the back of the screen / setting mirror function horizontal 0°-180° / setting mirror function vertica 0°-90°-180°-270°

Input: 2 x Video RCA(f) 1Vp-p 75 Ohm

Videao input prority: video input 2

Resolution: 1024(H) x 600(V) 3RGB

Aspect ratio: 16:9

Contrast: 500:1

Brightness: 450 cd/m²

View angle: l/r: 70 degree / up: 50 degree / down: 70 degree

Video System: PAL / NTSC automatically identification

Power supply: +10V > +14V DC

Power connection: acv system connector > loose wires / red: +12V ignition clamp 15 load-stable fused / black: GND clamp 31

Operating temperature: -20°C up to +70°C

Storage temperature: -30°C up to +80°

Measurements: L / W / H / > 175mm / 110mm / 26,81mm

Measurement with pedestal: H 115mm
