ZENEC Z-N528 2-DIN CARPLAY/ANDROID AUTO/DAB+/BT/FM/HDMI

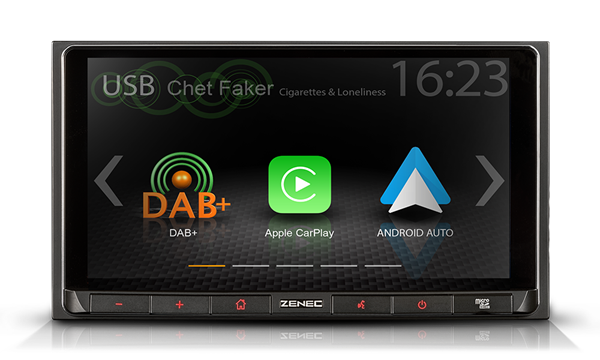

Z-N528 – 2-DIN with apple CarPlay and Google Android Auto
The Z-N528 is a 2-DIN infotainer of the latest generation with a capacitive touch-sensitive 6.75“/17.1 cm display. Via its hard key bar at the front panel, the Z-N528 is perfectly suited for totally straightforward operation while driving.

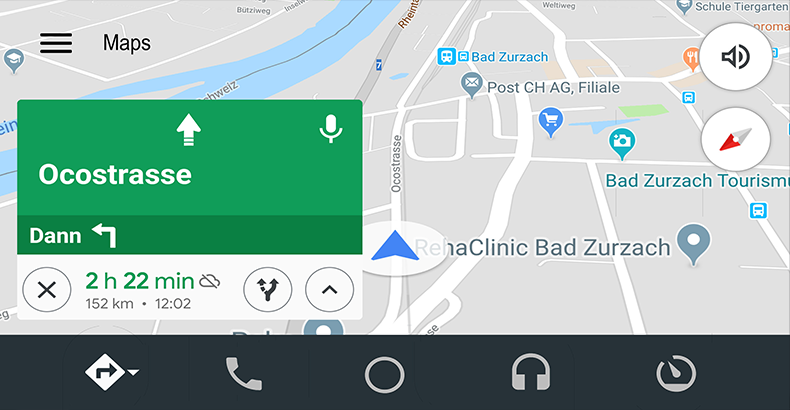

The Z-N528 provides for an easy and totally safe smartphone use in the car. The USB(1) port on the device lets you dock your phone directly to the infotainer – the Z-N528 is Apple CarPlay and Google Android Auto certified. Making phone calls, use Google or Apple maps to find a destination, play music and send or receive messages is true mobile convenience where the choice is yours: control and operate apps either via device touchscreen or with the Apple Siri or Google’s voice assistants. Thanks to the simple, intuitive user interfaces specially designed for in-car use, driver distraction is minimized – thus you can fully concentrate on driving.
The clear digital radio reception of the integrated DAB+ tuner is impressive, while the Z-N528 does score with several tuner comfort functions in addition: MOT Slideshow, DLS text, DAB<>DAB Service Following, and Comfort Scan. The high-sensitivity FM RDS tuner ensures good reception of conventional FM stations in regions where the DAB+ broadcasting network is not established sufficiently well yet.
The Z-N528 supports the playback of the latest audio and video formats of USB memory devices connected via USB 2.0 port. The USB(1) port does charge Apple and Android smartphone batteries with up to 2,000 mA charging current.

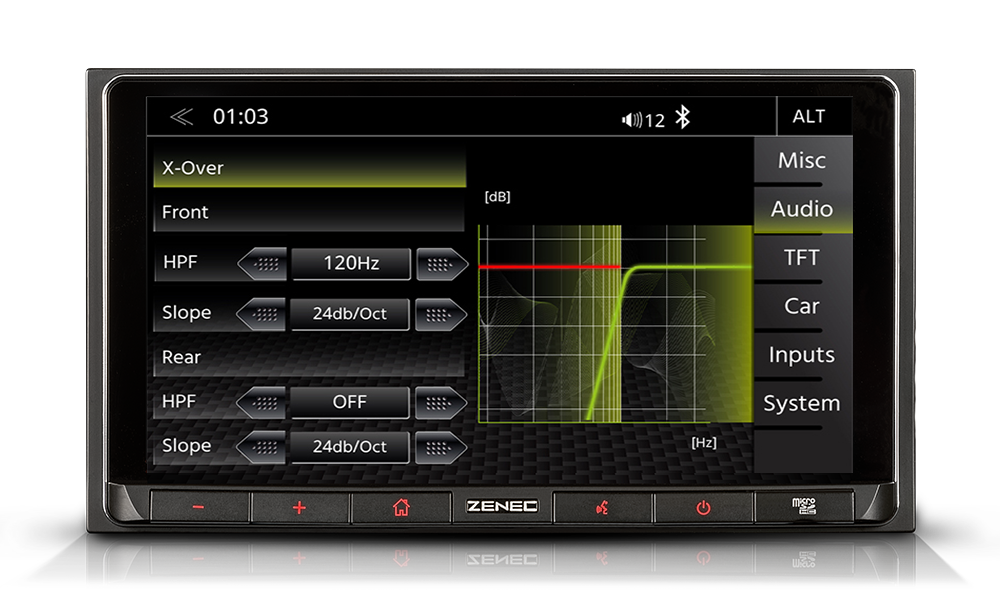

The Z-N528 does offer some nice advanced audio setup features. The audio DSP based 5-channel time alignment helps to adjust the virtual speaker locations to yield an improved staging and stereo image. The graphical 8-band equalizer can be used to counteract particularities of the car cabin, or to dial in the sound to suit personal preferences. The active crossover with selectable 12 dB or 24 dB/oct. highpasss filter for front and rear speakers allows the perfect integration of high quality aftermarket speaker systems and amplifiers for smooth and detailed music reproduction.
Lastly, the up-to-date Bluetooth 4.2 module with advanced hands-free functions gives you control over the simple management of contact favorites, a swift phonebook contact search using initial letter of given or family name, or convenient A2DP music streaming.
2-DIN DAB+ Infotainer
Touch sensitive, capacitive 6.75”/17.1 cm LCD-TFT display with glass surface
OSD menu in 10 different EU languages
DAB+ tuner with DAB<>DAB Service Following, MOT slideshow, DLS-text and Comfort Scan
FM RDS radio with 18 preset stations
Google Android AutoTM
Apple CarPlay
Bluetooth 4.2 with hands-free module and A2DP music streaming
Input for two camera systems with auto switching function and adjustable grid lines
RGB multicolor key illumination
4 x 50 W amplifier

Bluetooth 4.2 module with hands-free function
Import of 1,000 phone book entries with 3 phone numbers each
Fast dial function for 6 contact favorites
Contact search function by given and last name
iD3-Tag display in A2DP mode (artist, title, album)
External Bluetooth hands-free microphone

Made for iPod/iPhone
USB(2) 2.0 port on device backside for A/V file*1 playback from USB memory device
microSD card reader slot for A/V file*1 playback from microSD(HC) memory cards
Time alignment function by audio DSP (5CH with 0 to 10 mS delay each)
Graphical 8-band equalizer with 7 EQ-presets
Active crossover with selectable slope steepness (12 dB / 24 dB/oct.) with selectable high- and low-pass filter frequencies
HDMI input for compatible accessories and mobile devices
24 Bit D/A converter

4.2 RCA line pre-out (3 V)
1 x DIN FM antenna input socket
1 x SMB DAB antenna input socket with switchable 12 V phantom power supply
2 x RCA A/V input for camera video signal (CVBS) with switched power supply
1 x USB(1) 2.0 port with ~2,000 mA charging current for Apple iOS and Android smartphones
1 x USB(2) 2.0 port for file*2 playback from USB memory devices
1 x RCA video output (CVBS, NTSC)
1 x RCA A/V input with NTSC/PAL auto switching (CVBS)
1 x HDMI input
1 x 3.5 mm jack connector for external Bluetooth microphone
1 x Input for connection of an external CAN/SWC interface
