XZENT CAMPER UNIVERSAL KAMERA

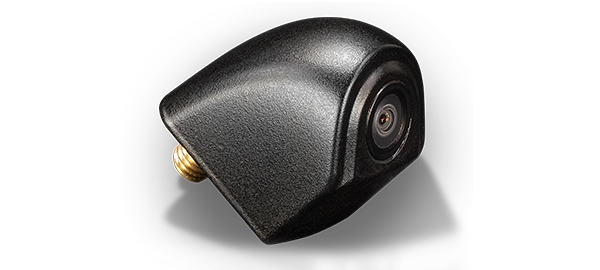

X-RVC45: REAR VIEW CAMERA FOR MOTORHOMES
The XZENT X-RVC45 wedge type rear view camera was specially developed for semi- and fully-integrated motorhomes. The X-RVC45 offers a horizontal viewing angle of 100°, optimized for best overview behind the motorhome and a mounting height of 2.5 m above ground level. The X-RVC45 is compatible with a wide variety of 2-DIN A/V recei­ver models of the aftermarket as well as the 2-DIN infotainers and vehicle specific naviceivers of the XZENT line up, respectively.

X-RVC45: Rear view camera for motorhomes
TECHNICAL SPECIFICATIONS
KEY FEATURES

• Compact and shapely rear view camera for semi- and fully-integrated motorhomes

• Detailed high contrast picture also at twilight conditions

• 45° angled cam sensor with 100° horizontal view angle

• Separable 3-part system cable, with cable parts of 4.5 m + 8.5 m + 4.0 m length

• Aluminum die-cast housing with M8 threaded tube for cam fixation

TECHNICAL SPECIFICATIONS

• Image device: 0.30“ / 7.62 mm PC3089 CMOS sensor

• Lens focal length: f2

• TV system: NTSC / 60 fps

• Viewing angle: 130° diagonal, 100° horizontal, 75° vertical

• Native sensor resolution: 720 x 480 pixels

• Resolution of video-out: 420 TV lines

• Frame rate: 60 fields/sec.

• Signal to noise ratio: > 47 dB

• Light sensitivity: 0.4 lux/F 1.2/50 IRE

• Video output: 1.0 Vp–p (+/- 0.2 V), 75 ohms, CVBS RCA

• White balance, backlight compensation, gain control, sync system: auto

• Power supply: DC12V (6 - 16 volts)

• Current consumption: 38 mA +/-10 mA (@DC 12 V) / ≤ 500 mW

• IP protection rating: IP69K

• Max. operating temperature: -20° to +75° C
