XZENT CAMPER KAMERA TIL FIAT DUCATO III MODELLER

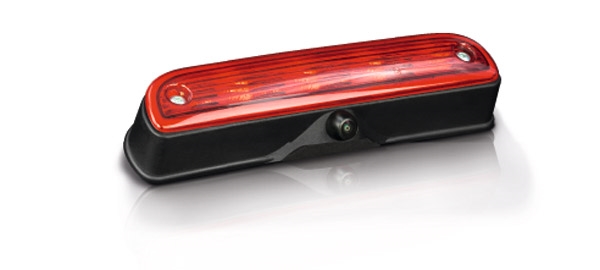

X-RVC290: REAR VIEW CAMERA FOR FIAT DUCATO
The X-RVC290 rear view camera is specially developed for motorhomes based on FIAT Ducato III (X290) chassis and other vehicles of identical type. The X-RVC290 offers a horizontal viewing angle of 125°, optimized for best overview behind the motorhome. The specialty of this cam is the integration to retain the 3rd brake light of the Ducato vehicle. The X-RVC290 is compatible with a wide variety of 2-DIN A/V receivers, multimedia and navigation systems as well as the XZENT infotainers.
TECHNICAL SPECIFICATIONS
KEY FEATURES

Vehicle specific high resolution brake light rear view camera for FIAT Ducato III (type 250/251, 2006 - 2014, type X290 as of 2014) vehicles and further types based on identical vehicle chassis
System design integrating the original Ducato brake light to retain road use homologation
High quality CMOS picture sensor with low power consumption
Detailed high contrast picture under twilight conditions
Plastic injection main housing with stainless steel fixation bolts
Separable system cable with 0.30 m + 11 m cable length
TECHNICAL SPECIFICATIONS

Image device: 0.33“ / 8.38 mm PC4089K CMOS sensor
Lens focal length: f2
TV system: NTSC / 60 fps
Viewing angle: 160° (D) / 125° (H) / 100° (V)
Native sensor resolution: 728 x 488 pixels (native SOC pixels 732 x 504 H x V)
Resolution of video-out: > 550 TV lines
Frame rate: 60 fields/sec.
Signal to noise ratio: > 46.5 dB
Light sensitivity: 0.5 Lux/IR On
Video output: 1.0 Vp–p (+/- 0.2 V), 75 ohms, CVBS
Dynamic range: 60.7 dB
White balance: auto
Backlight compensation: auto
Gain control auto
Sync system: auto
Power supply: DC12V (9 - 16 Volts)
Current consumption: 40 mA +/- 10 mA (@ DC12V) / 480 mW
IP protection rating: IP68
Operating temperature: -20° to +70° C
