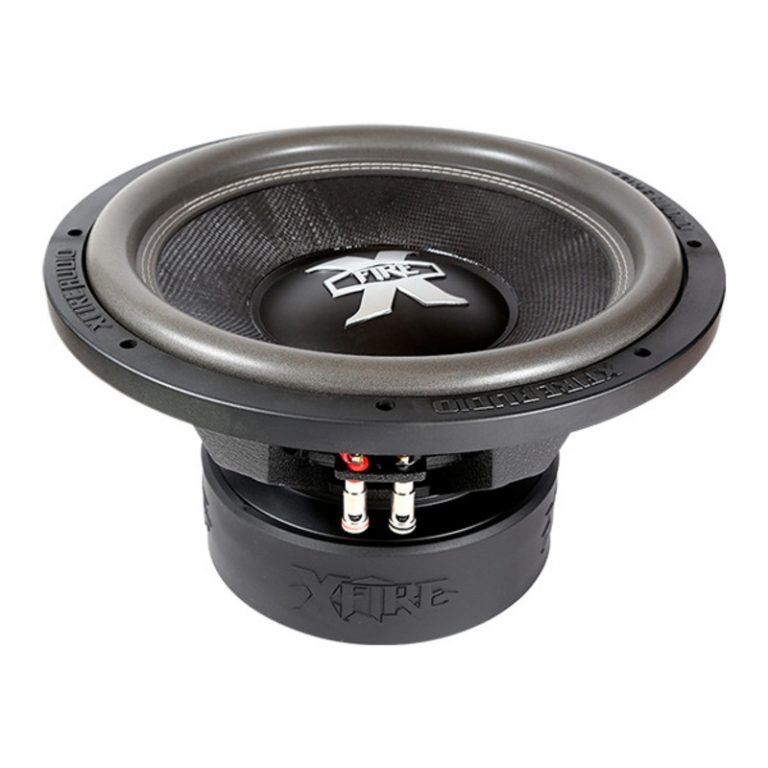

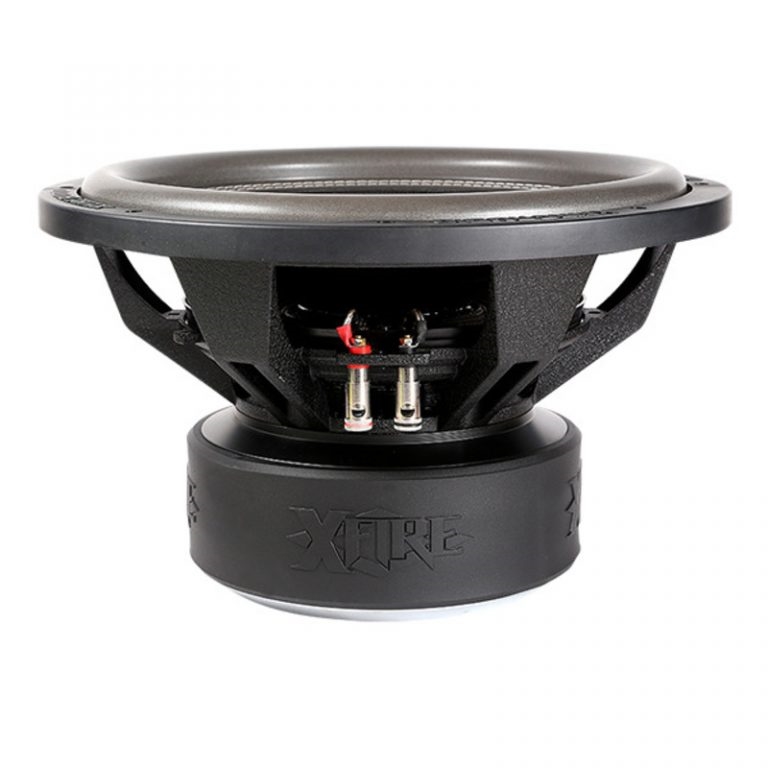

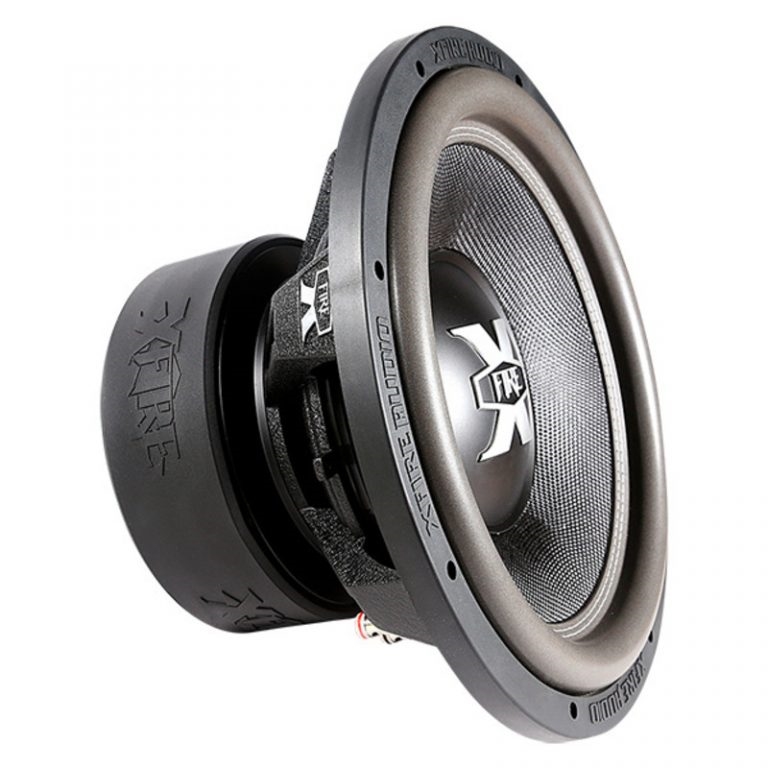

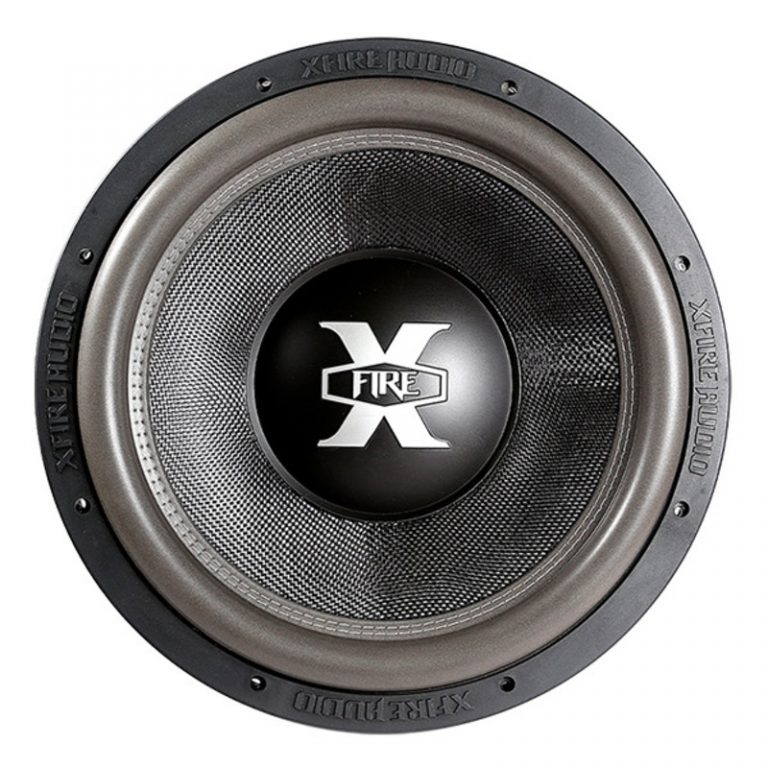

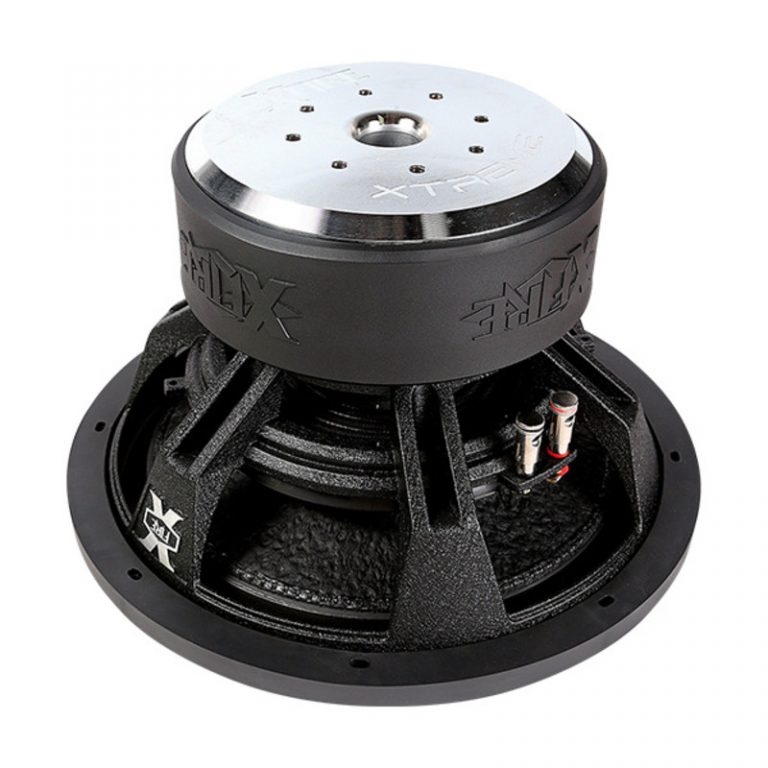

XFIRE XTREME XMF-152 15" dual 2Ω Subwoofer

XMF-152 SUBWOOFER
XMF XTREME series subwoofers are designed for high output systems and have suspensions optimized for extreme excursion in ported enclosures.

In this manual there are two, single subwoofer vented enclosure designs. One is a minimum recommended enclosure option while the other is for optimal design for the best possible sound.

In addition there is an optimum dual XMF XTREME series subwoofer vented enclosure design.

All dimensions given are internal dimensions,XFIRE AUDIO advizes to use minimum 0.75’’(18mm) thick panels for all the sides and 1.5’’(36mm) thick front panel.
FEATURES

Die cast “Dura-Frame” black powder basket with “Direct Coil Cooling”
375 ounce triple stacked ferrite motor structure
Chrome machined T-yokes with logo punched back plate
US made 4″ 4-layer flat wire aluminum voice coil
Ultra lightweight black carbon fiber cone with “Preceision Linear Drive” dual stitched resin fiber surround
“Hex Core” progressive conex spider assembly with industrial woven dual tinsel leads
XFIRE molded motor cover
XFIRE secure seal gasket
Compression fit terminals

Power Handling : 7500W Max
Power Handling : 2500W RMS
Impedance : 2x 2Ω
Sensitivity : 88.7dB/2.83V/1m
Fs : 47.7Hz
Frequency Response : 20 – 250Hz
Excursion : 30mm (1-way)
Cutout Diameter : 13.7″ (349mm)
Mounting Depth : 8.5″ (215mm)
Recommended Ported Enclosure Size : 3.00 – 4.50 cu.ft. (85 – 127.4L)
