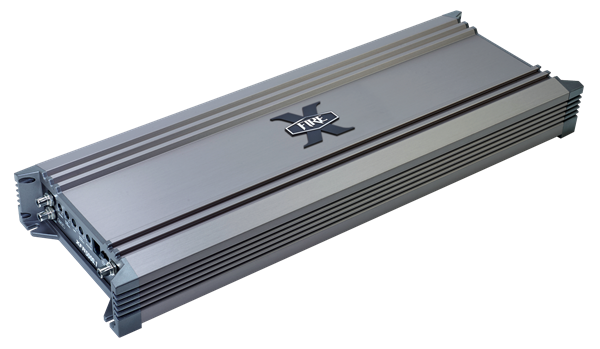

XFIRE XFR5000.1 Class-D Mono Amplifier

XFR5000.1 Class-D Mono Amplifier

Features :
•Class-D topology design.
•Extensive customization controls.
•LP crossover.
•Variable subsonic filter.
•Bass boost.
•Easy to design the perfect soundstage.
•Small, sleek, heavy-duty all aluminum chassis.
•Impressive “Direct Device Mount” or “DDM” component pc boards assuring the ultimate in quality and performance.
•Tight tolerance components for improved signal to noise ratios for superior musical reproduction from the very first note.
•Input and output connectors direct PCB mounted ensuring maximum power and signal transfer.
•All connections are side panel secured to resist flex, twist or breakage for structural integrity and performance.
•Nylon gap spacers avoid RCA to chassis contact eliminating any potential signal degradation.
•ISOTEK protects against thermal overload, low voltage and short circuits.

Specifications :
•RMS Power (14,4V) 0,5% THD : 2500W @ 1Ω
•RMS Power (14,4V) 0,5% THD : 1750W @ 2Ω
•RMS Power (14,4V) 0,5% THD : 1000W @ 4Ω
•Two Amps linked RMS Power (14,4V) 0,5% THD : 5000W @ 2Ω
•Bandwidth : 10 - 350Hz ±1dB
•Input Sensitivity : 200mV - 8V
•Signal to Noice (IEC-A) : >90dB
•Damping factor : >200
•Low Pass filter : Adjustable 50 - 250Hz
•Subsonic filter : Adjustable 10 - 50Hz
•Bass Boost : Adjustable 0 - +12dB @ 45Hz
•Phase Shift : adjustable 0 - 1800
•Dimensions LxWxH : 450x172x53mm
