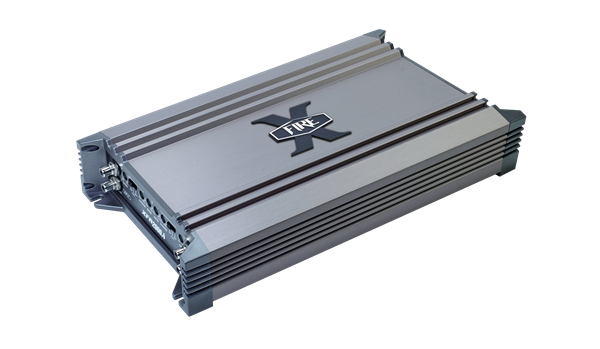

XFIRE XFR2000.4 Class-D 4-Channel Amplifier

XFR2000.4 Class-D 4-Channel Amplifier

Features :
•Full Range Class-D topology design.
•Extensive customization controls.
•HP/LP crossovers.
•Bass boost.
•Easy to design the perfect soundstage.
•Small, sleek, heavy-duty all aluminum chassis.
•Impressive “Direct Device Mount” or “DDM” component pc boards assuring the ultimate in quality and performance.
•Tight tolerance components for improved signal to noise ratios for superior musical reproduction from the very first note.
•Input and output connectors direct PCB mounted ensuring maximum power and signal transfer.
•All connections are side panel secured to resist flex, twist or breakage for structural integrity and performance.
•Nylon gap spacers avoid RCA to chassis contact eliminating any potential signal degradation.
•ISOTEK protects against thermal overload, low voltage and short circuits.

Specifications :
•RMS Power (14,4V) 0,05% THD : 4x 250W @ 2Ω
•RMS Power (14,4V) 0,05% THD : 4x 150W @ 4Ω
•RMS Power (14,4V) 0,05% THD : 2x 500W @ 4Ω bridged
•Bandwidth : 10 - 30000Hz ±1dB
•Input Sensitivity : 200mV - 8V
•Signal to Noice (IEC-A) : >90dB
•Damping factor : >200
•Low Pass filter : Adjustable 50 - 500Hz
•High Pass filter : Adjustable 50 - 500Hz
•Bass Boost : Adjustable 0 - +12dB @ 45Hz
•Dimensions LxWxH : 260x172x53mm
