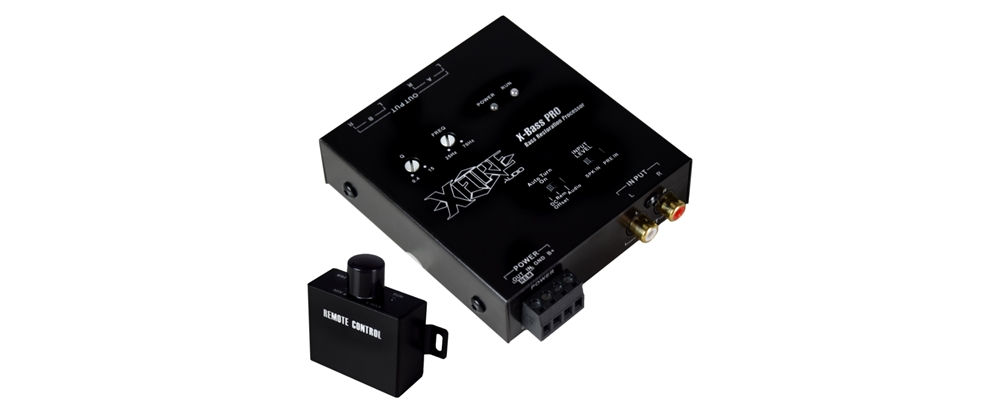

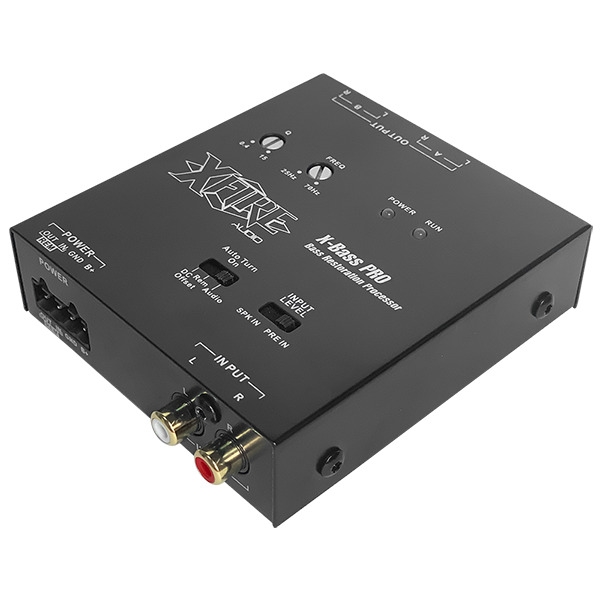

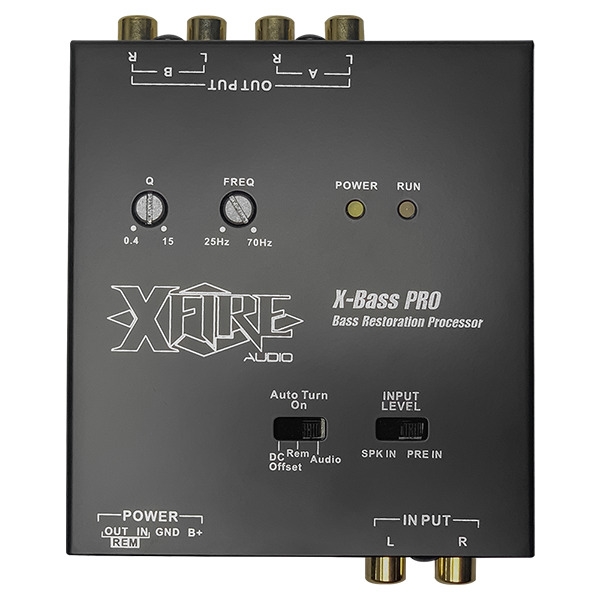

XFIRE X-BASS PRO 2 TIL 4 HIGH-LOW/LINE DRIVER MED BASS RESTORATION

X-BASS PRO
XFIRE AUDIO E-Series processors are the result of XFIRE AUDIO’s commitment to design and build prestine high end car audio building blocks, for the most scrutinizing car audio enthousiast.

Bass restoration circuit.

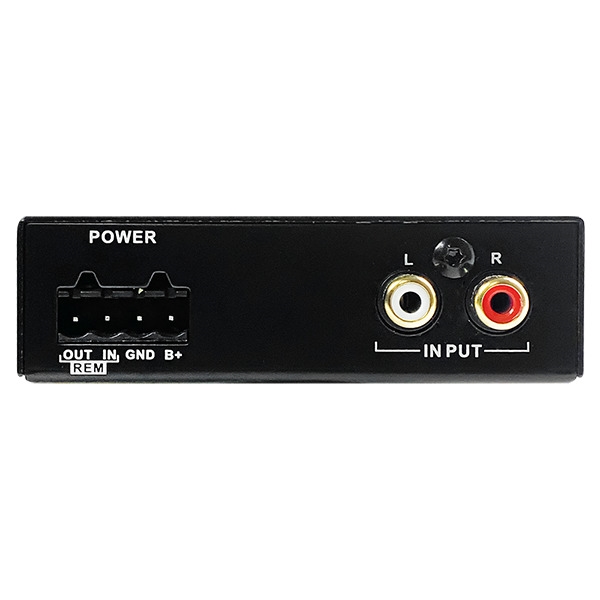

Balance inputs, except both Low and High level input signal.
Active two channel speaker level to line converter.
Auto sensing when high inputs are used, auto turn on/off for seamless integration with OEM systems.
DC Offset/Audio signal, turn on selection switch.

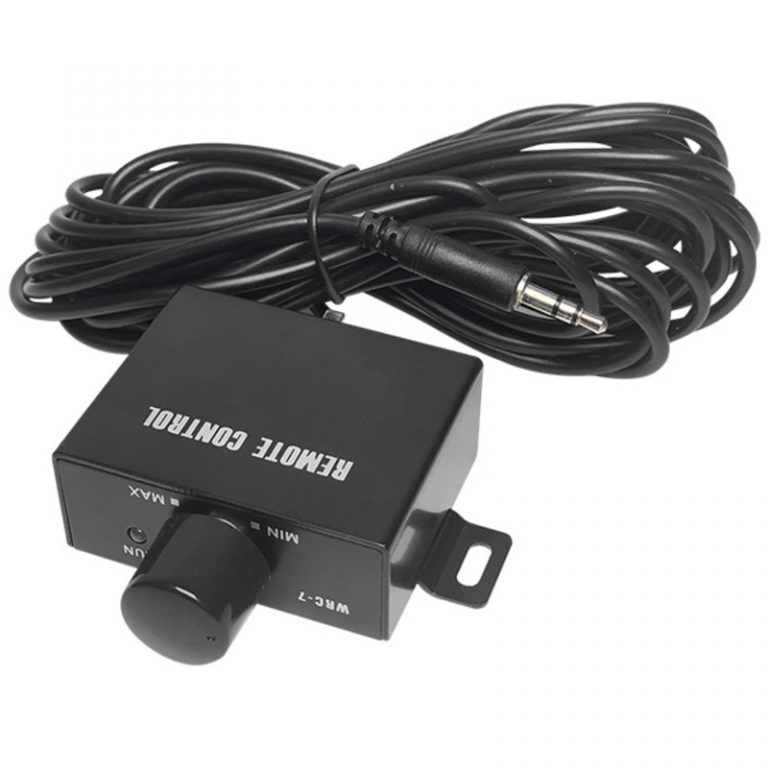

Remote output for switching on/off amplifiers.

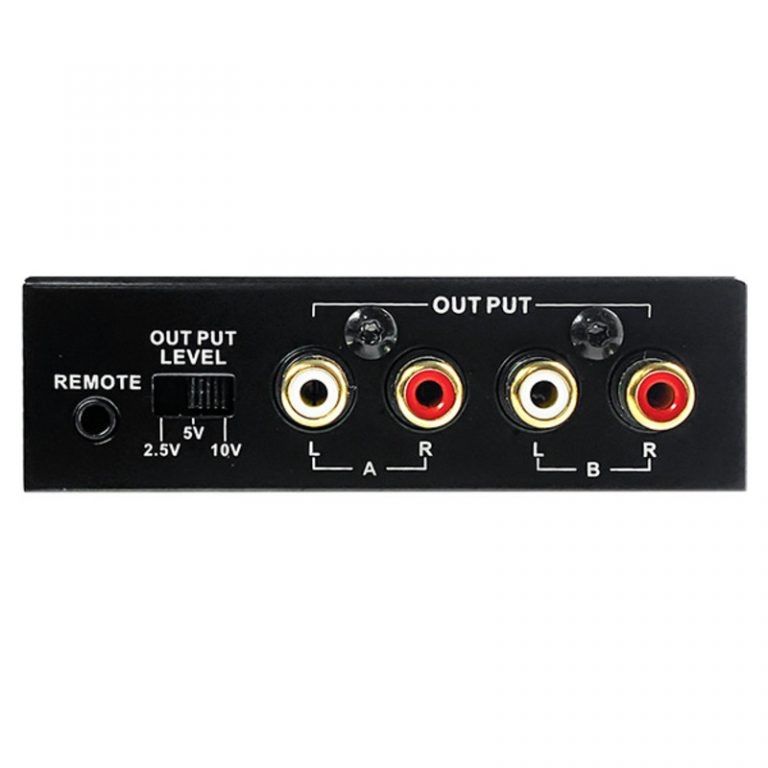

4-channel outputs.
Output level selection switch
“Super wide Range” frequency response.
“Direct Device Mount” PCB’s and tight tolerance components for improved signal to noice rations and superior musical reproduction.
Input and output connectors direct PCB mounted ensuring maximum signal transfer. Wel
SPECIFICATIONS
Frequency Response : 10Hz – 70kHz

Bass frequency adjust: 25Hz – 70Hz

Q adjust: 0.4 – 15

S/N ratio: >95dB(A-weighted)

Channel separation: >90dB

THD+N: <0.06%

Operating voltage: 9 – 16V DC

Stand by current draw: <1mA

Power consumption: 150mA

Remote out: 700mA Max

Input impedance: 20k Ohm

Output impedance: 150 Ohm

Output level: 25V/5V/10V RMS

Dimensions HxWxL: 27x90x102mm
