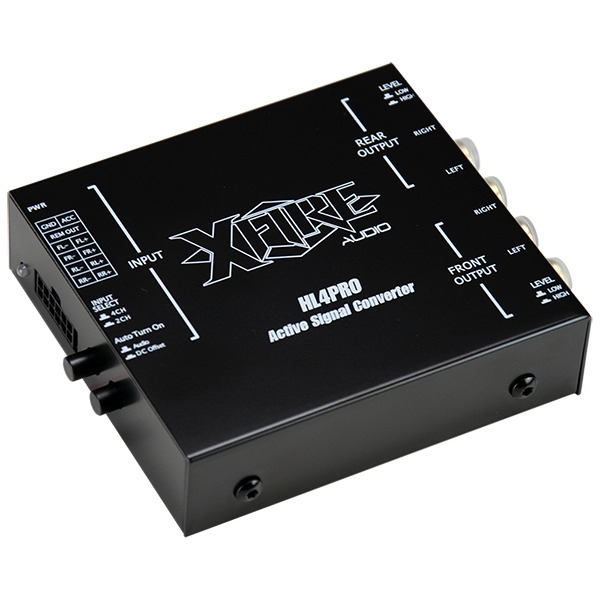

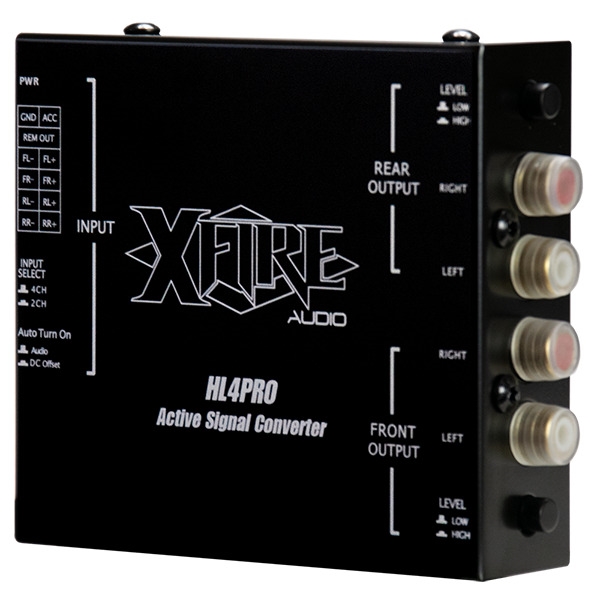

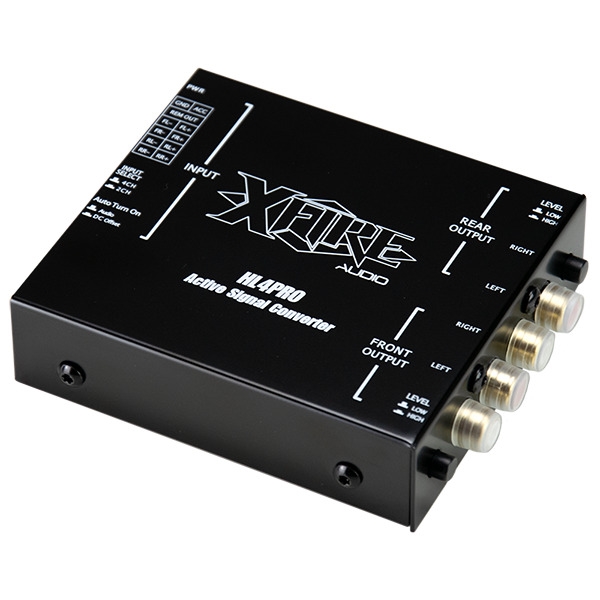

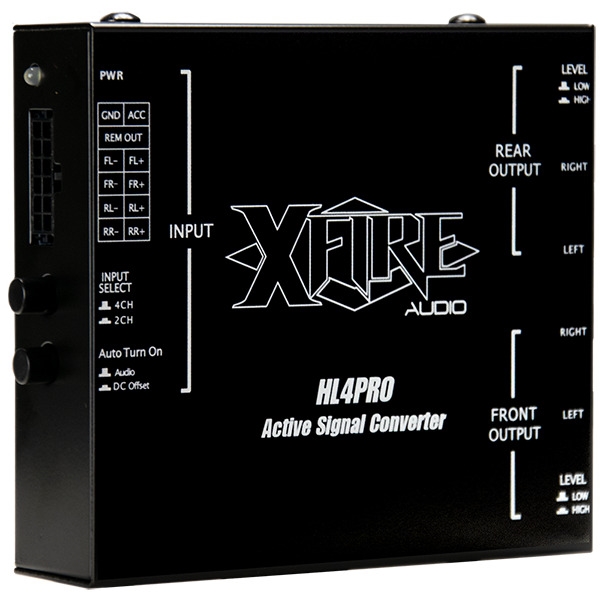

XFIRE HL4 PRO ACTIV SIGNAL CONVERTER

HL4 PRO 4-channel Active Signal Converter

Features :
•Active four channel speaker level to line level converter.
•Auto sensing on high level inputs, auto turn on/off.
•Remote output for switching on/off amplifiers.
•2 or 4 Channel input selection switch.
•High or Low level RCA output selection.
•DC Offset / Audio signal, turn on selection switch.
•“Ultra Low Distortion” design with 5V RMS output levels.
•“Super Wide Range” frequency response.

Specifications :
•Frequency Response : 10Hz - 80kHz (-3dB) S/N
•Ratio @ rated power : >105dB (A-weighted)
•Channel Separation : >80dB
•Operating Voltage : 9 - 16V DC
•THD+N @ 2V Output : <0.03% (20-20kHz
•Auto Turn On : DC Offset - Audio
•Remote Out : 9 - 16V (1Amp)
•Input Channel Switch : Yes
•Output Level Switch : Yes
•Input Impedance : 50 Ohm
•Input Sensitivity : 100mV - 10V
•Output Impedance : <20 Ohm
•Max Output Voltage : 5V RMS
