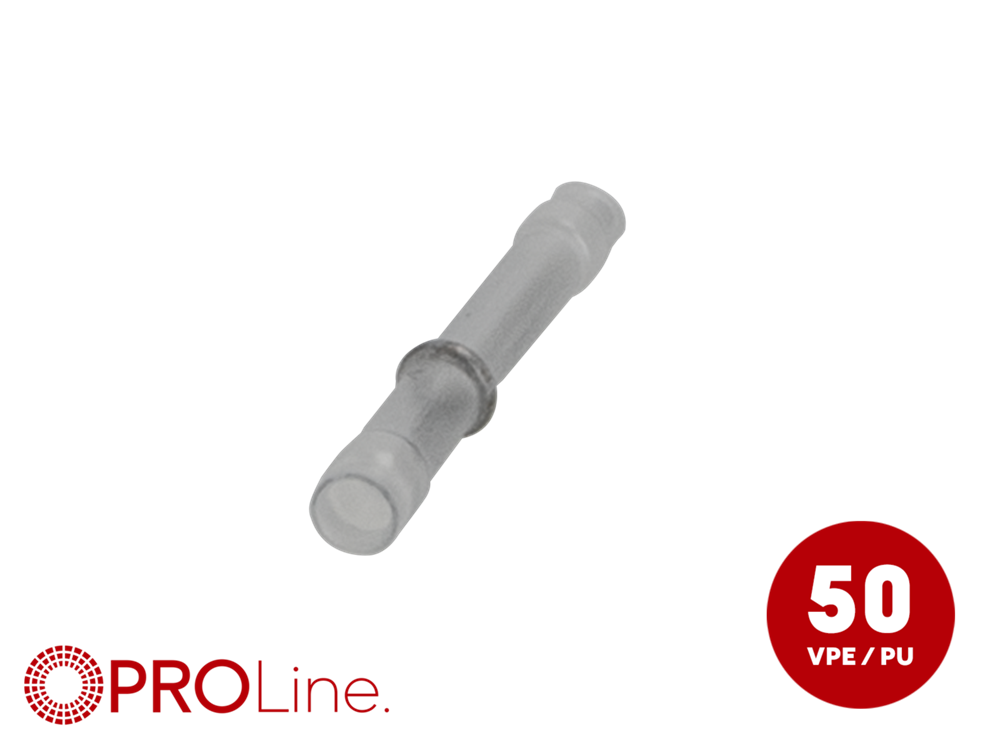

VARME LODDE KABELSAMLER 0,2-0,8MM² 50 STK

Heat-shrinkable solder connector with low-temperature solder ring and flux for dust- and moisture-proof connection or extension of tinned or bare copper strands in the automotive industry, agricultural machinery sector and commercial vehicle sector.

cable diameter: 0,3 mm² - 0,8 mm²
cable diameter: 22 - 18 AWG

Technical data:

length: 26 mm
diameter cable entry: 1,7 mm² max
diameter cable: 0,4 mm² min. > 1,7 mm² max..

material: Polyolefin heat shrinkable
shrink ratio: 3 : 1
shrink temperature: 140° C min.
solder: Sn42 Bi58 per ANSI / J-STD-006
flux: Flux ROM1 per ANSI / J-STD-004
temperature: -55 °C - 125 °C max.
dielectric strength: 20 kV/mm.
voltage drop: 2 mV

REACH and RoHS compliant

Content:

50 pieces
