Varenr.: 347160-1-50-p
På lager hos vores leverandør

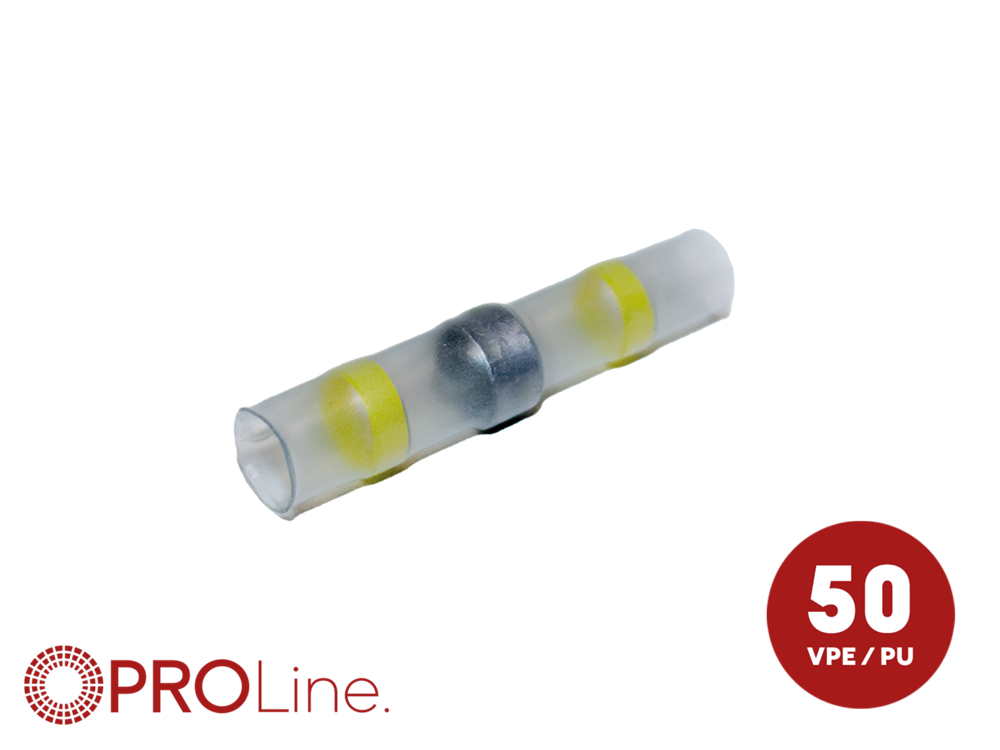

Heat-shrinkable solder connector with low-temperature solder ring and flux for dust- and moisture-proof connection or extension of tinned or bare copper strands in the automotive industry, agricultural machinery sector and commercial vehicle sector.
cable diameter: 0,8 mm² - 2,0 mm²
cable diameter: 18 - 14 AWG
Technical data:
length: 42 mm
diameter cable entry: 6,0 mm² max
diameter cable: 2,8 mm² min. > 6,0 mm² max..
material: Polyolefin heat shrinkable
shrink temperature: 140° C min.
solder: Sn50 Pb32 Cd18
flux: Flux ROM1 per ANSI / J-STD-004
temperature: -55 °C - 125 °C max.
dielectric strength: 20 kV/mm.
voltage drop: 2 mV
solder contains lead and cadmium
Content:
50 pieces
