Varenr.: 347145-1-5-p
På lager hos os

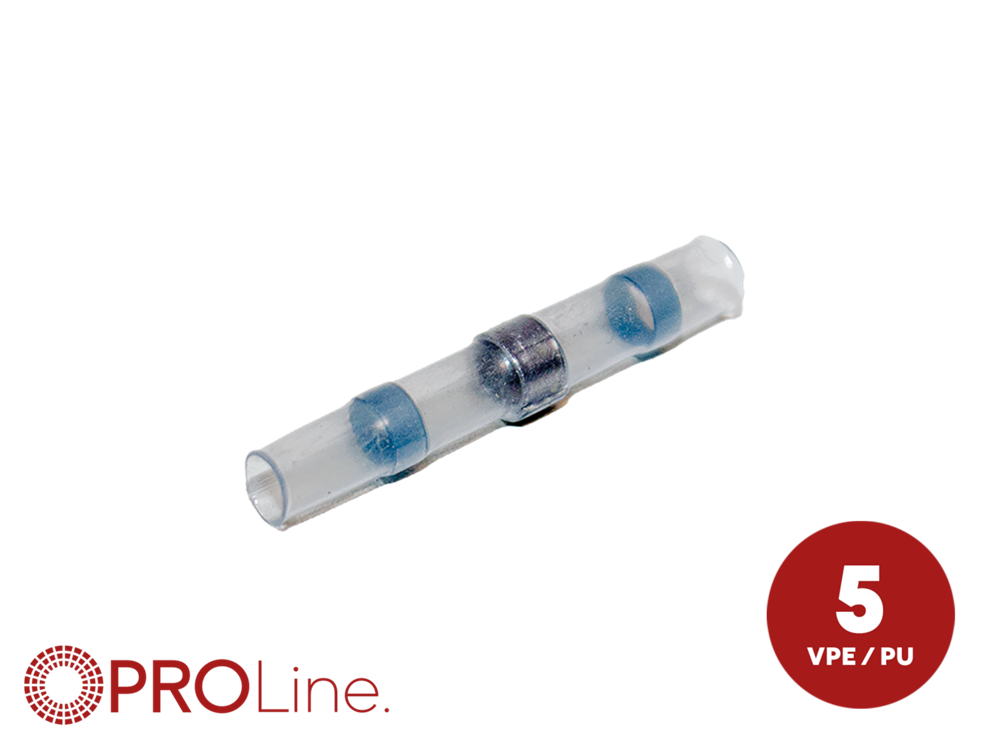

Heat-shrinkable solder connector with low-temperature solder ring and flux for dust- and moisture-proof connection or extension of tinned or bare copper strands in the automotive industry, agricultural machinery sector and commercial vehicle sector.
cable diameter: 2,0 mm² - 4,0 mm²
cable diameter: 14 - 12 AWG
Technical data:
length: 42 mm
diameter cable entry: 4,5 mm² max
diameter cable: 1,8 mm² min. > 4,5 mm² max.
material: Polyolefin heat shrinkable
shrink temperature: 140° C min.
solder: Sn50 Pb32 Cd18
flux: Flux ROM1 per ANSI / J-STD-004
temperature: -55 °C - 125 °C max.
dielectric strength: 20 kV/mm.
voltage drop: 2 mV
solder contains lead and cadmium
Content:
5 pieces
