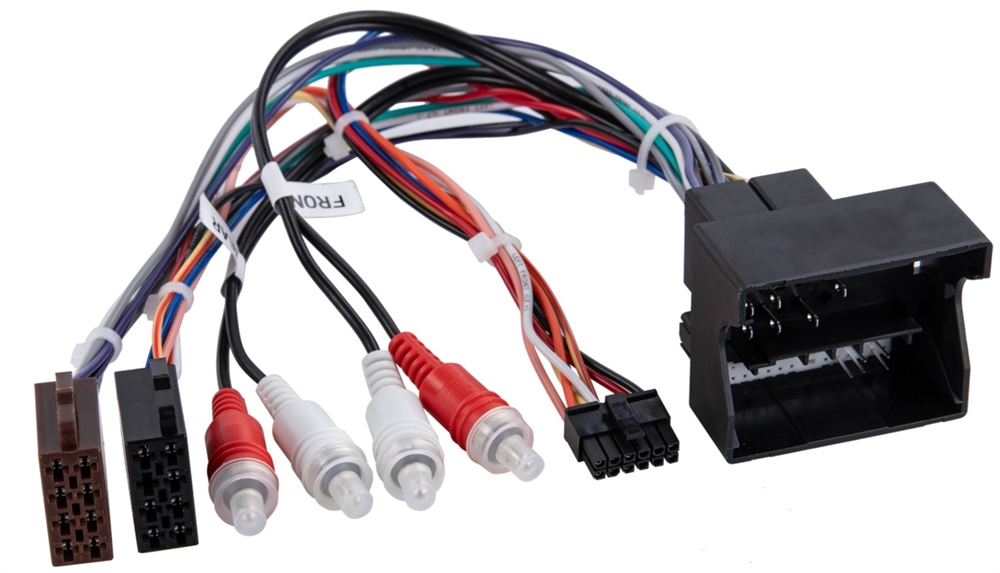

VAG 16/40 PIN QUADLOCK CAN-BUS KABEL TIL CX401 OG CAN-UNI 01 (TIL 2/4 KANAL AKTIVE SYSTEMER)

connector: 40 Pin Quadlock VAG > item: 42cx25-rca
connector: OEM amplified system 2 channel / 4 channel > RCA(m) front/rear
vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2 DIN OEM HU
vehicles with BNS 5.0 monochrome OEM Sat Nav
vehicles with RNS-E 16:9 OEM Nav Sat

retrofit HU with pre amp output more than 3V
vehicles Audi TT 08/2010 - 04/2014 with non-functioning OEM sound system:
amplified system coding from CAN Bus activation to remote activation required if possible
Address J525 > activation 1 remote (0xxx?xx)

vehicles with amplifier switch-off noise test additionally:
Noise filter NF GND decouple RCA > item: 30.5000-01

Vehicle application:

Audi
Audi A1 (8X) 07/2010 - 04/2018*
Audi A3 (8P) 05/2003 - 04/2005
Audi A3 (8P) 10/2004 - 04/2013
Audi A4 B6 (8E) 11/2000 - 10/2005
Audi A4 B7 (8E) 11/2004 - 02/2009
Audi A6 (C5/B4) 05/2001 - 03/2006**
Audi Q3 (8U) 10/2011 - 11/2014*
Audi Q3 (8U) 02/2015 - 06/2018*
Audi R8 (42) 04/2007 - 05/2015
Audi TT (8J) 09/2006 - 04/2010
Audi TT (8J) 08/2010 - 04/2014

Seat
Seat Exeo (3R) 03/2009 - 05/2013

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
