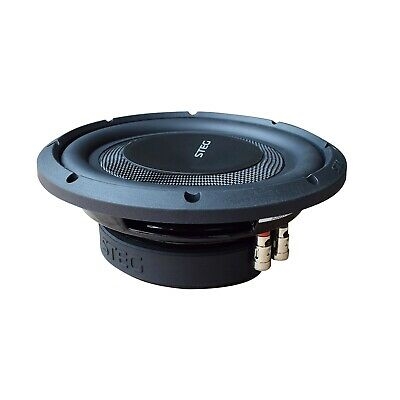

STEG SQ8 2x2 OHM FLAT 8"

Power rating: 300W RMS, 2x 2 Ohm, 83dB 1W/1m, Fs = 35Hz
50mm Voice Coil Diameter
10mm of peak to peak excursion
Rubber Surround Composite Cone
PVC Gasket Ring
1,13kg Massive Neodymium magnet
Diameter: 21,5cm / Install-Diameter: 18,2cm
Optimized for sealed (>9L) and Bassreflex (>13L) Boxes
STEG SQ8-2 8 inch / 20cm 300W Subwoofer, 2x 2Ohm
With the aim of providing high acoustic performance even when used with lower power, the SQ8-2 (2+2ohm) and SQ8-4 (4+4ohm) were designed for use in an 8.5 liter reflex enclosure. The components of the STEG SQ8 subwoofer have been developed with a primary objective: to provide high power in tight spaces. The exit is a matter of excursion; the more air the cone moves, the more output there will be. However, the reduced mounting depth has traditionally led to a low excursion.
The STEG SQ8 subwoofers use a special geometry studied in our laboratories that guarantees a wide range of the mobile unit, keeping the mounting depth to a minimum. The Suspension the Cone and the Spiders have been carefully designed to prevent the "oscillating mode" phenomenon. This allows the subwoofer to be mounted close to the rear wall of the enclosure, making the most of the reduced mounting depth.

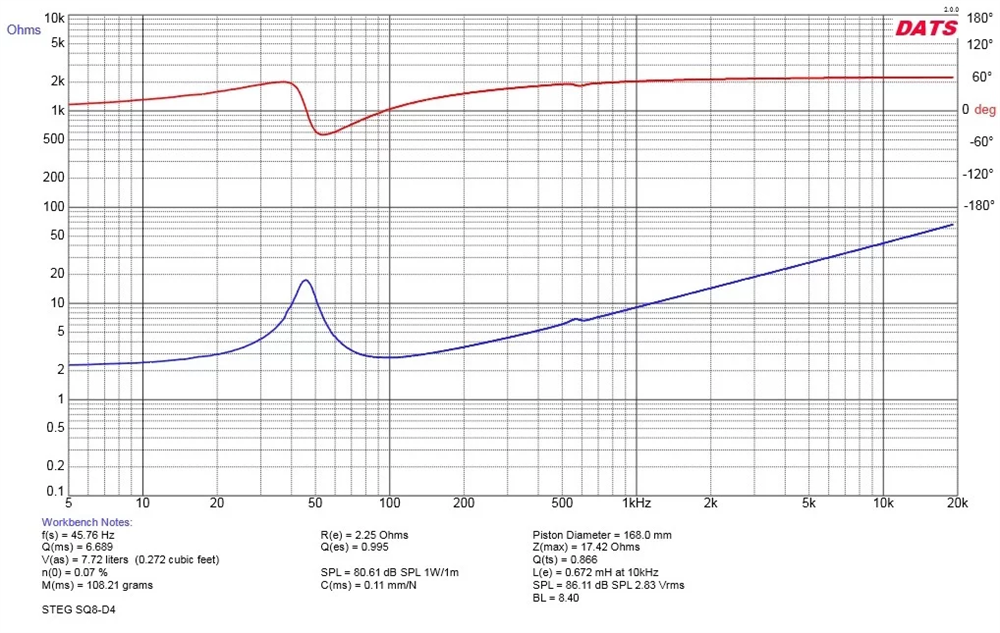

Technical data
Max. Power (Watt): 500
Re (Ohm): 1,8
Fo (Hz): 35
Sd (K): 21
Md (g): 50
BL: 8,8
Qms: 6,50
Qes: 0,560
Qts: 0,50
SPLO(dB): 83
Vas (Ltr): 12
Xmax (mm): 10
Color
black
Manufacturer
STEG
Product Type
Subwoofer
Size
20cm / 8"
Voice Coil
Single
Power Rating (RMS)
300W
Frequency Response
35 Hz - 500 kHz
Impedance
2x 2Ω
Mounting depth
80mm
