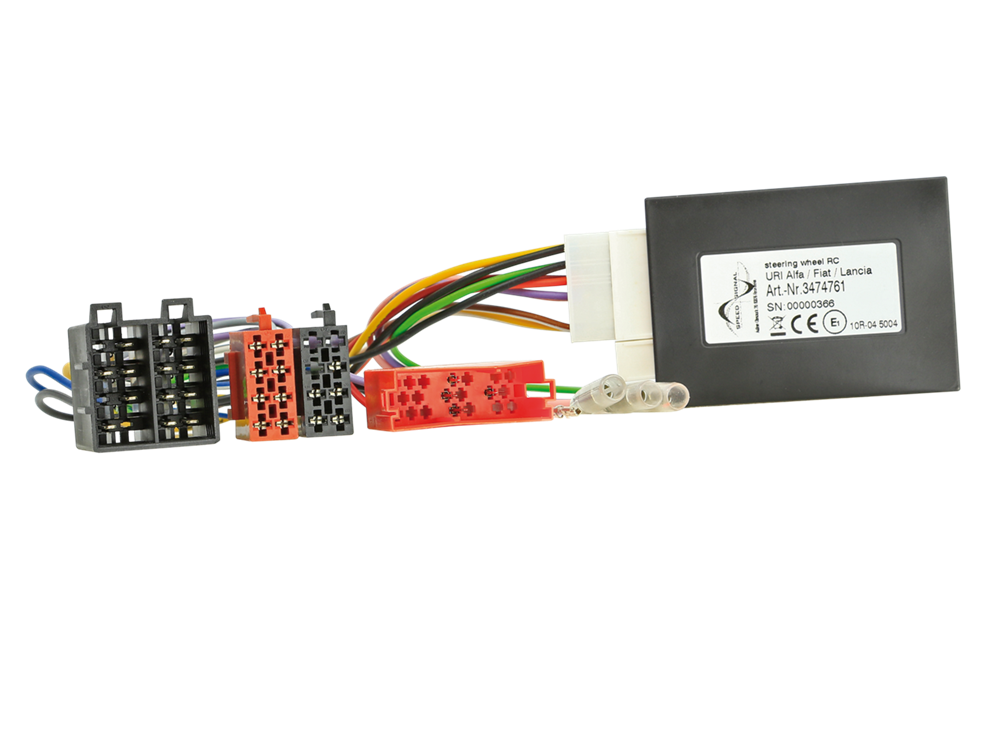

SPEEDSIGNAL SPECIAL CAN-RATBETJENING ALFA/FIAT/IVECO MED SAT NAV

Note:

CAN Bus

connector: ISO / Mini-ISO

check dipswitches

Vehicle application:

Alfa 147 (937) 2006 - 2010
Alfa 159 (939) 2005 - 2011
Alfa Brera (939) 2005 -2010
Alfa GT (937) 2004 - 2010
Alfa Giulietta (940) 2010 - 2014
Alfa Mito (955) 2008 - 2018
Alfa Spider (939) 2006 - 2010

Citroen Jumper 2006 - 2014

Fiat 500 (312) 2007 -2015
Fiat Bravo (198) 2007 - 2014
Fiat Croma (194) 2005 - 2010
Fiat Doblo (263) 2008 - 2018
Fiat Ducato (250) 2006 - 2014
Fiat Fiorino 2008 - 2016
Fiat Grande Punto (199) 2005 - 2012
Fiat Idea (350) 2006 - 2013
Fiat Multipla (186) 2004 - 2010
Fiat Panda (169) 2005 - 2012
Fiat Punto (199) 2005 - 2010
Fiat Punto EVO (199) 2010 - 2018
Fiat Stilo 2004 - 2008*
Fiat Qubo 2008 - 2018

Ford KA (RU8) 2009 - 2016

Iveco Daily IV 2006 - 2014
Iveco Daily V 2014 - 2019

Peugeot Boxer 2006 - 2014

Following signals are provided:

Ignition
Illumination
Reverse
Speedpulse

SWC
date/time settings not supported in all vehicles

*vehicles with Visteon OEM HU change +12V power (clamp 30) Pin 4 > Pin 7
Der skal bruges 1 af nedenstående radiokabler.
