Varenr.: RD65
På lager hos vores leverandør
Recoil Echo PRO series features and benefits:

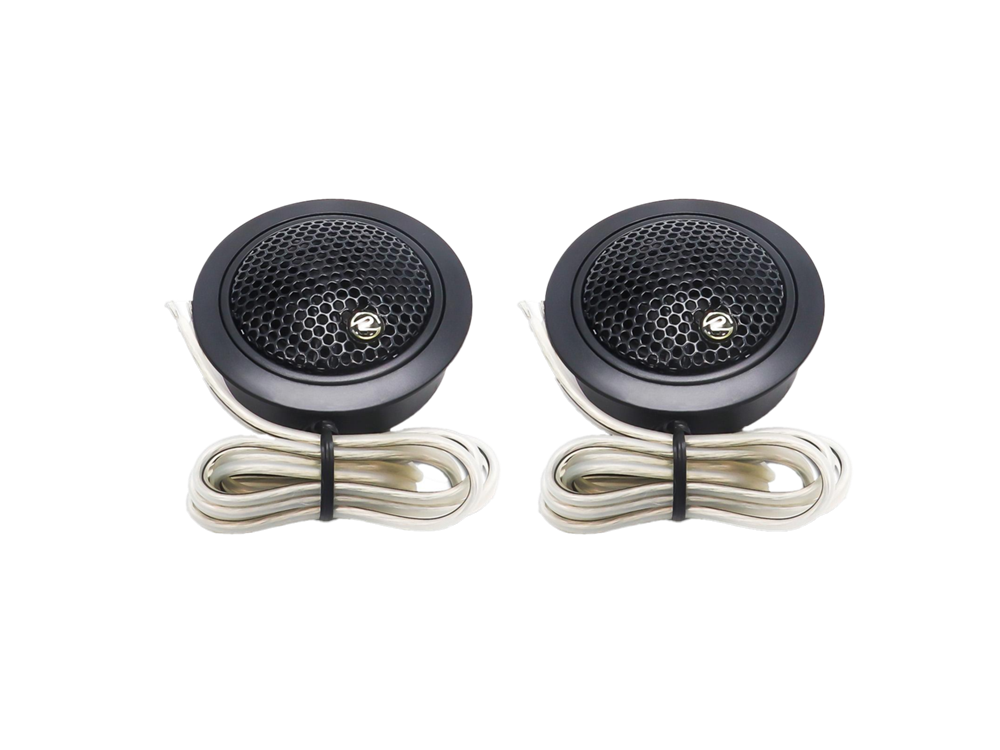

The silk dome tweeter features an oversized 25 mm / 1" voice coil in ferrofluid for better heat dissipation and high power handling.
In combination with an N38H neodymium magnet, the tweeter enables fatigue-free and precise reproduction.
The woofer features a fibreglass composite cone and a nitrile butadiene rubber surround bonded with a high-temperature adhesive for high mechanical strength and durability.
In combination with a powerful ferrite magnet and a 25,5 mm/ 1" voice coil, precise bass and midbass reproduction is achieved.

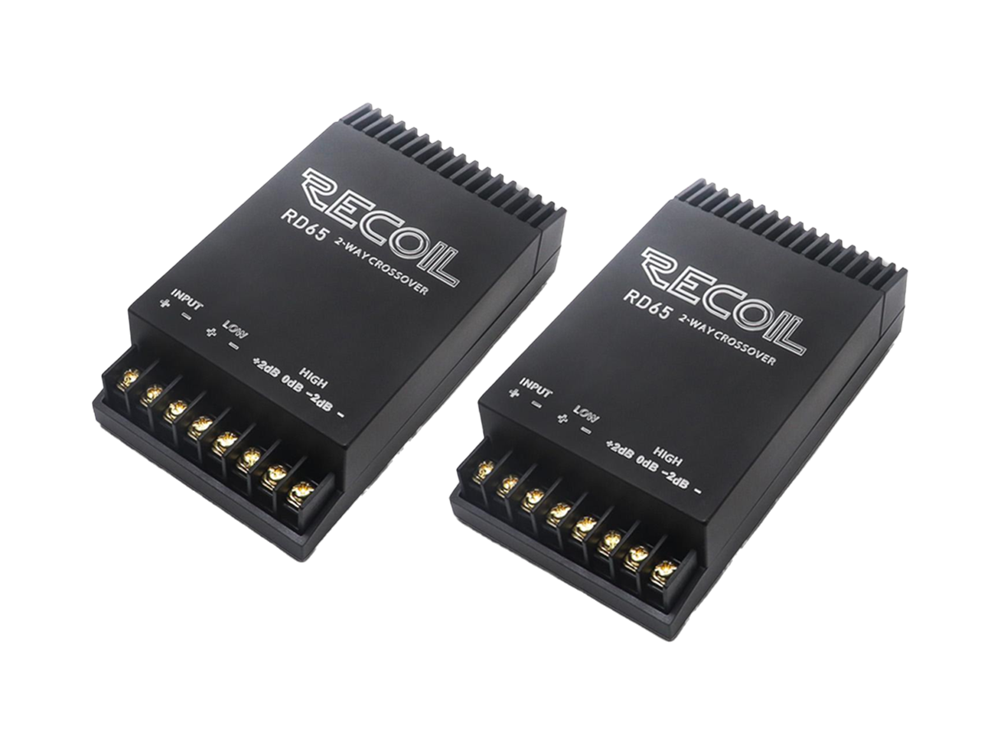

The crossovers are equipped with high-quality Mylar® capacitors and segmented air coils and are easy to install thanks to their compact dimensions.

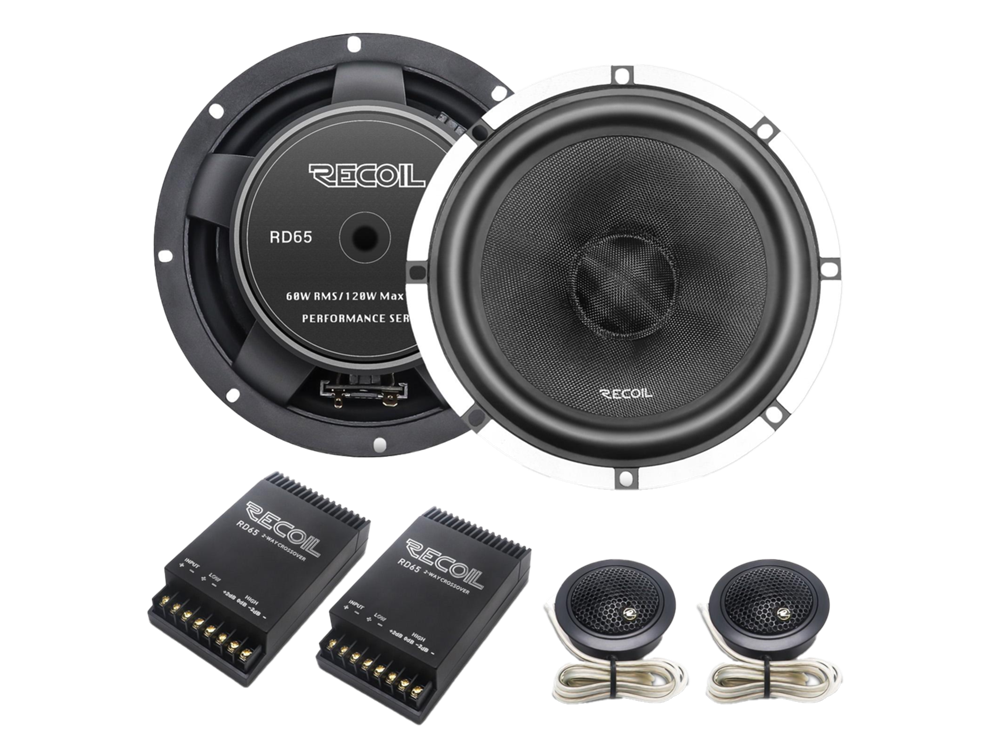

Speaker:
Tweeter 25 mm / 1"
Bass driver 165 mm / 6,5"

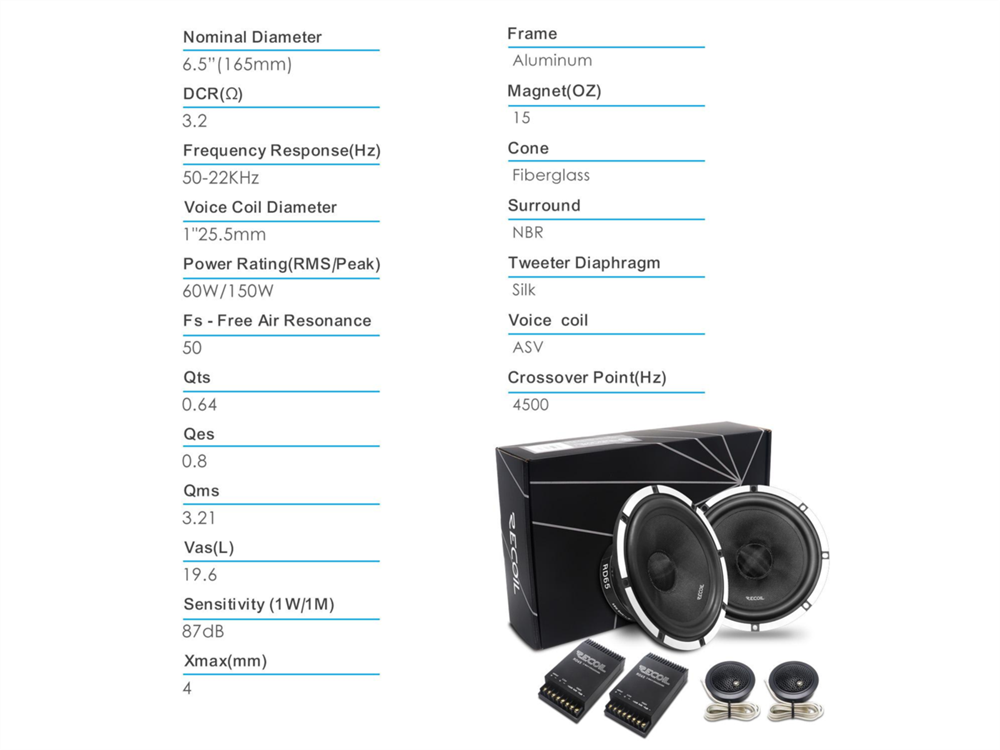

Specifications:
Power RMS: 80W
Power max.: 160W
Impedance: 3,2 ohms
Tweeter: silk dome tweeter
Bass driver cone: fibreglass composite cone
Bass driver surround: nitrile butadiene butyl rubber surround
Bass driver voice coil: 25,5 mm / 1"
Fs: 50
Qts: 0.64
Qes: 0.8
Qms: 3.21
Vas: 19.6 L
Xmax: 4 mm
Sensitivity: 87 dB 1W/1M
Frequency response: 55 Hz 20,000 Hz
Crossovers: high-quality Mylar® capacitors and segmented air coils crossover Point 4500 Hz

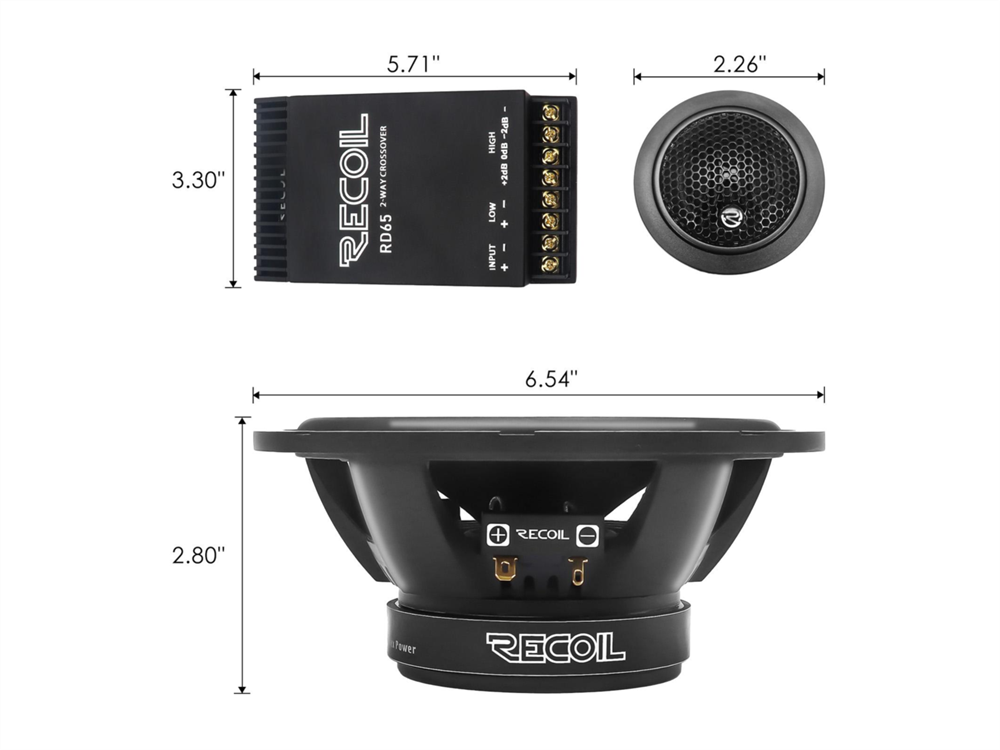

Dimensions:
Tweeter outer diameter: 57 mm / 2,26" mounting bracket
Bass driver outer diameter: 164 mm / 6,45"
Bass driver depth:
Bass driver total hight: 71 mm / 2,8"
Crossover: 145 mm x 84 mm / 5,71" x 3,3"
