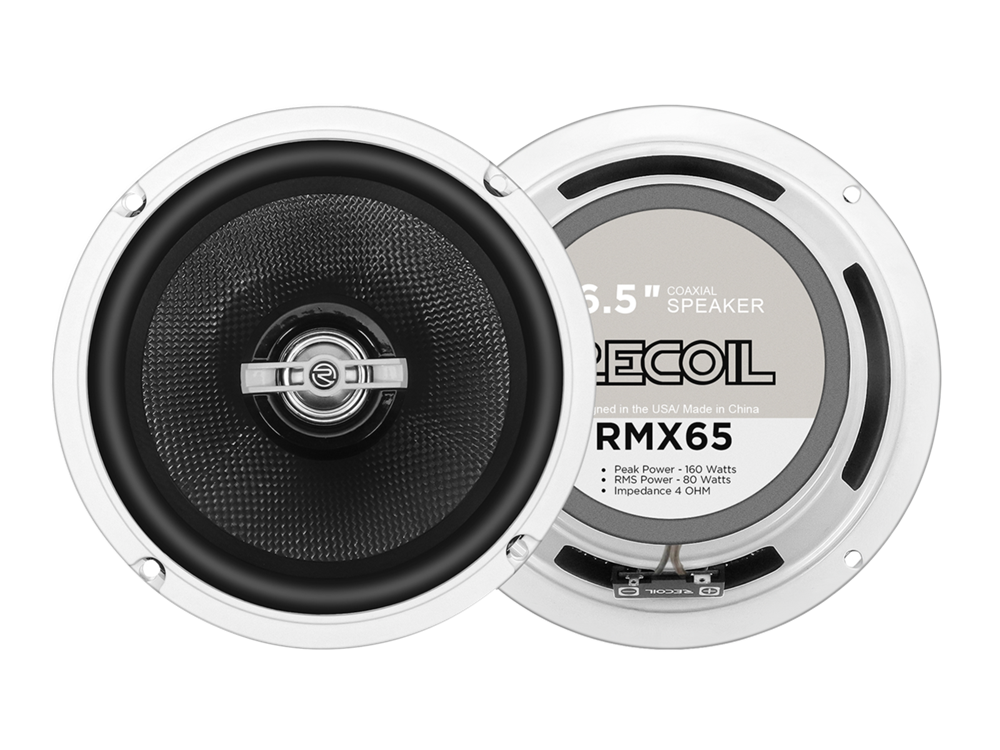

RECOIL ECHO PLUS 6,5" 165MM COAX

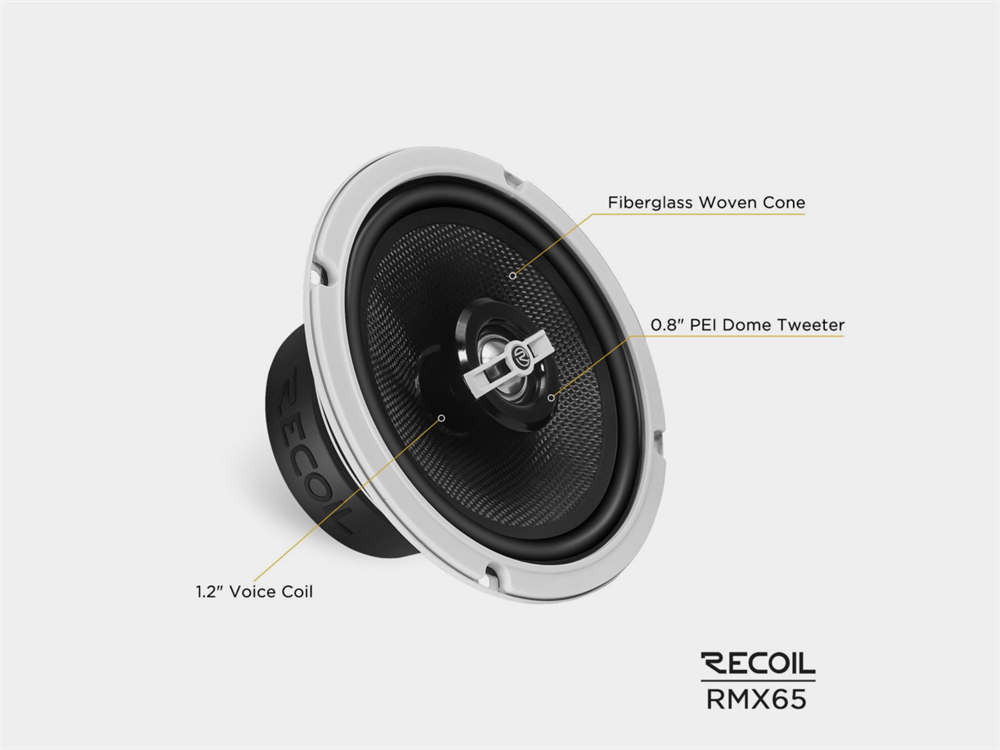

Recoil Echo Plus series features and benefits:

Woven fibreglass cone for high performance and precise frequency response

Nitrile butadiene rubber surround for durability and deeper midrange

Kapton voice coil for heat resistance and high power handling

Dome tweeter with integrated crossover and oversized voice coil for high power handling and smooth, fatigue-free highs

Ferrite magnet with strong magnetic field

Speaker:

2-ways coaxial system 165 mm / 6,5"

Specifications:

Power RMS : 80W
Power max.: 160W
Impedance: 4 ohms
Tweeter: 20 mm / 0,8" PEI dome tweeter
Tweeter crossover: high pass 6db
Tweeter voice coil: 20 mm / 0,8"
Mid-bass driver cone: woven fibreglass
Mid-bass driver surround: nitrile butadiene rubber surround
Mid-bass driver voice coil: 30 mm / 1,2"
Frequency response: 60 Hz - 20.000 Hz

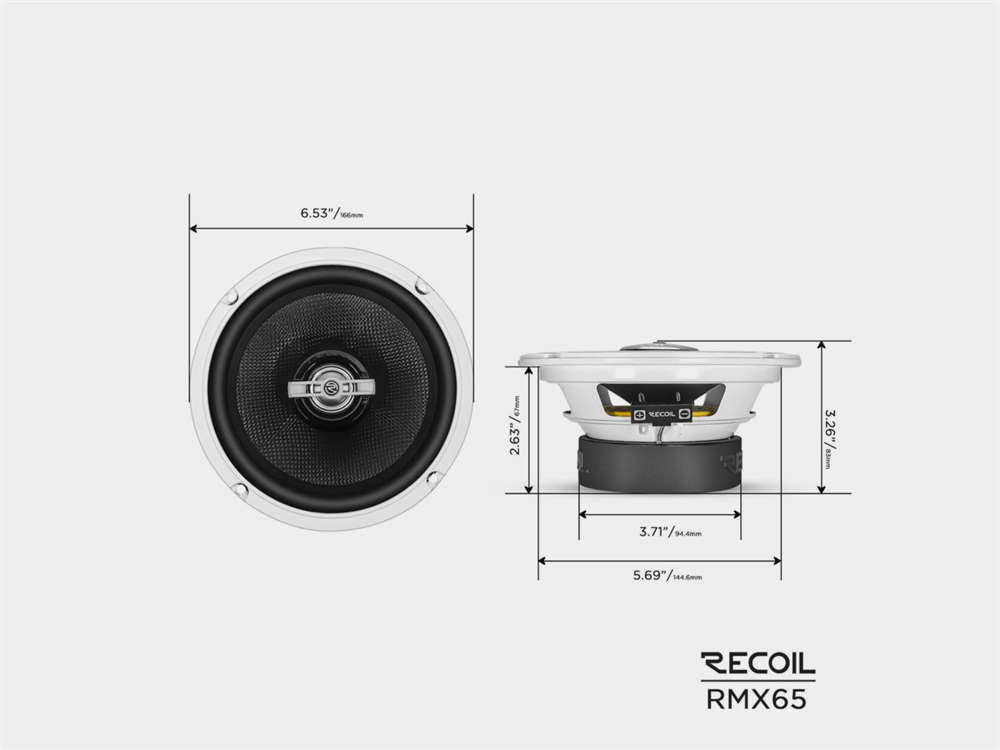

Dimensions:

Outer diameter: 166 mm / 6,53"
Installation diameter: 145 mm / 5,69"
Installation depth: 67 mm / 2,63"
Total height of low-midrange driver: 82,8 mm / 3,26"
