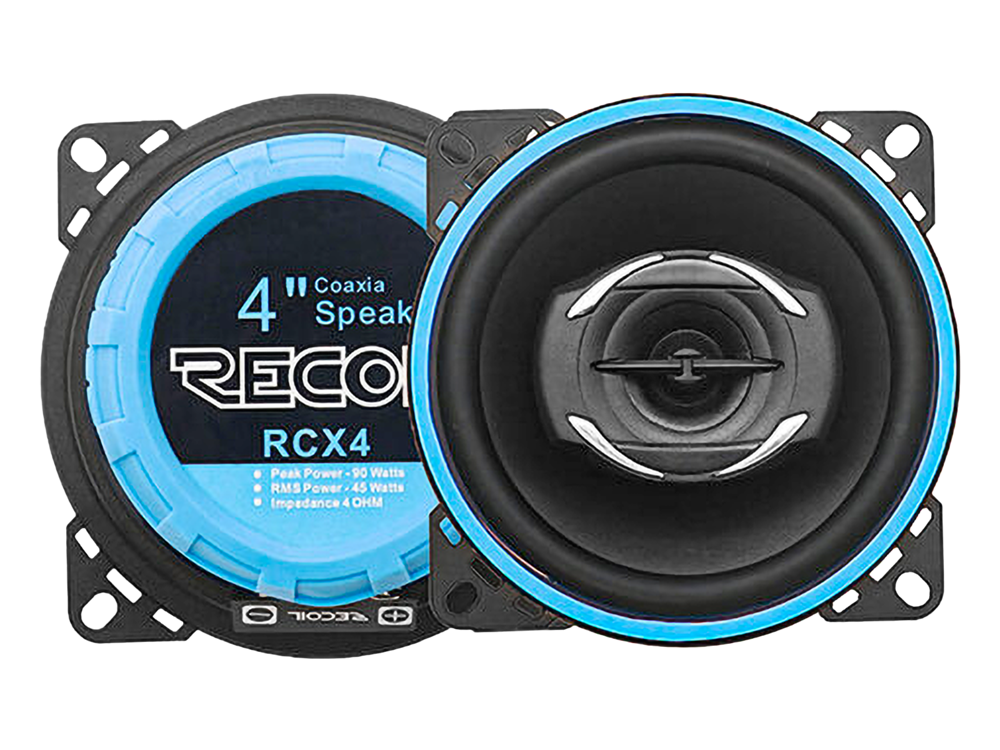

RECOIL ECHO 4" 100MM COAX

Recoil Echo series features and benefits:

Lightweight, thermoformed polypropylene cone for high performance and accurate frequency response

Nitrile butadiene rubber surround for durability and deeper midrange

Dome tweeter with integrated crossover for smooth, fatigue-free highs

Ferrite magnet with powerful magnetic field and compact design suitable for almost any installation opening and depth

Speaker:

2-ways coaxial system 100mm / 4"

Specifications:

Power RMS : 25W
Power max.: 50W
Impedance: 3,2 ohms
Tweeter: 12,5 mm / 1/2" Tetolon dome tweeter
Tweeter crossover: high pass 6db
Mid-bass driver cone: composite polypropylene cone
Mid-bass driver surround: nitrile butadiene rubber surround
Mid-bass driver voice coil: 25,5 mm / 1"
Qts: 1,04
Qes: 1,3
Vas: 3,2 Liter / 0,11 ft³
Xmax: 2,3 mm / 0,09"
Sensitivity: 86 dB 1W/1M

Dimensions:

Overall diameter: 118.5 mm × 97 mm / 4.66" × 3.92"
Outer diameter: 114 mm / 4,49"
Installation diameter: 100 mm / 4"
Installation depth: 48 mm / 1.89"
Total height of low-midrange driver: 51,8 mm / 2.04"
