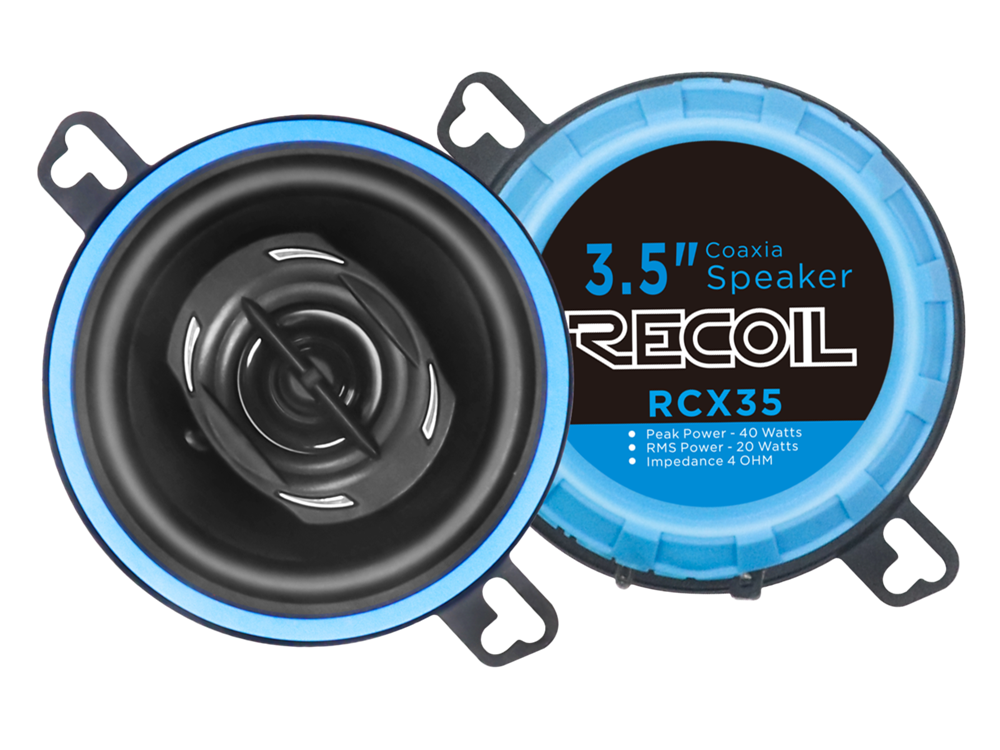

RECOIL ECHO 3,5" 85MM COAX

Recoil Echo series features and benefits:

Lightweight, thermoformed polypropylene cone for high performance and accurate frequency response

Nitrile butadiene rubber surround for durability and deeper midrange


Dome tweeter with integrated crossover for smooth, fatigue-free highs

Ferrite magnet with powerful magnetic field and compact design suitable for almost any installation opening and depth

Speaker:

2-ways coaxial system 85mm / 3.45"

Specifications:

Power RMS : 20W
Power max.: 40W
Impedance: 3,2 ohms
Tweeter: 12,5 mm / 1/2" PEI dome tweeter
Tweeter crossover: high pass 6db
Mid-bass driver cone: composite polypropylene cone
Mid-bass driver surround: nitrile butadiene rubber surround
Mid-bass driver voice coil: 25,5 mm / 1"

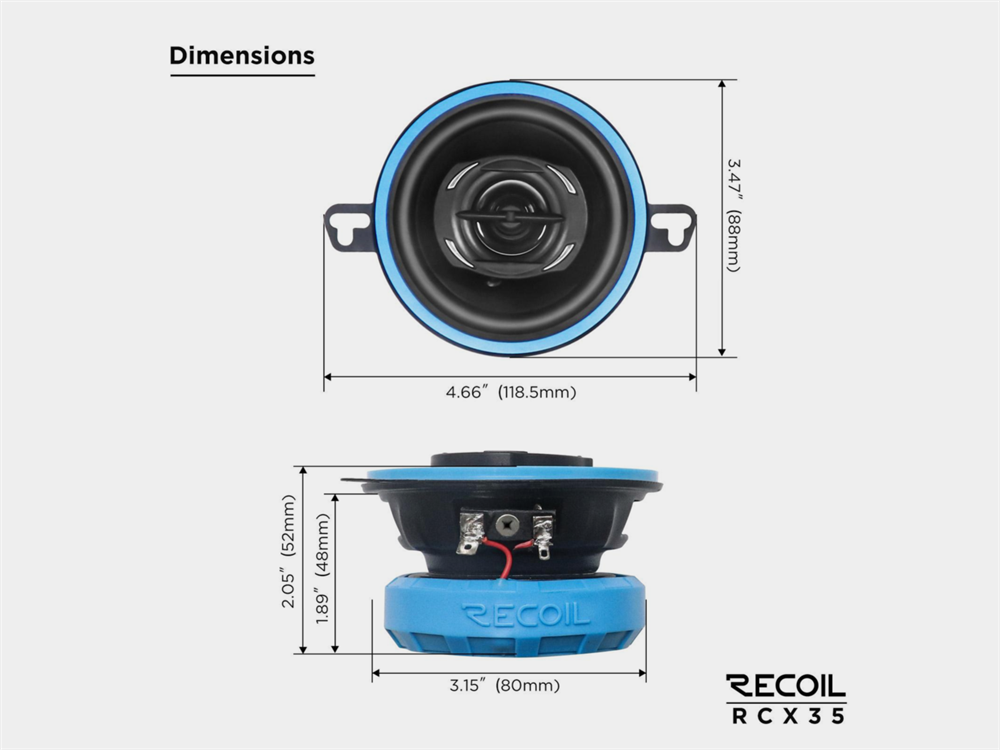

Dimensions:

Overall diameter: 118.5 mm × 97 mm / 4.66" × 3.92"
Outer diameter: 88 mm / 3.45"
Installation diameter: 80 mm / 3.15"
Installation depth: 48 mm / 1.89"
Total height of low-midrange driver: 52 mm / 2.05"
