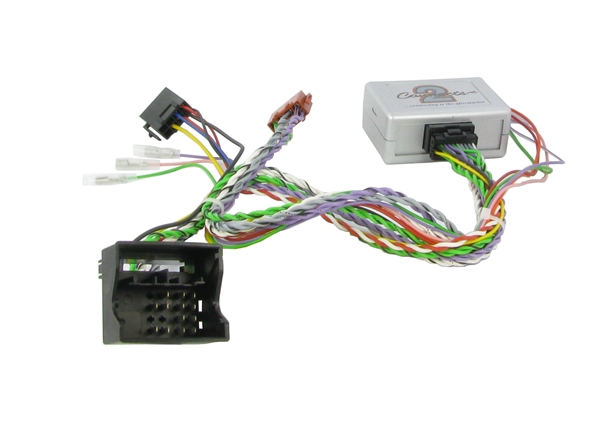

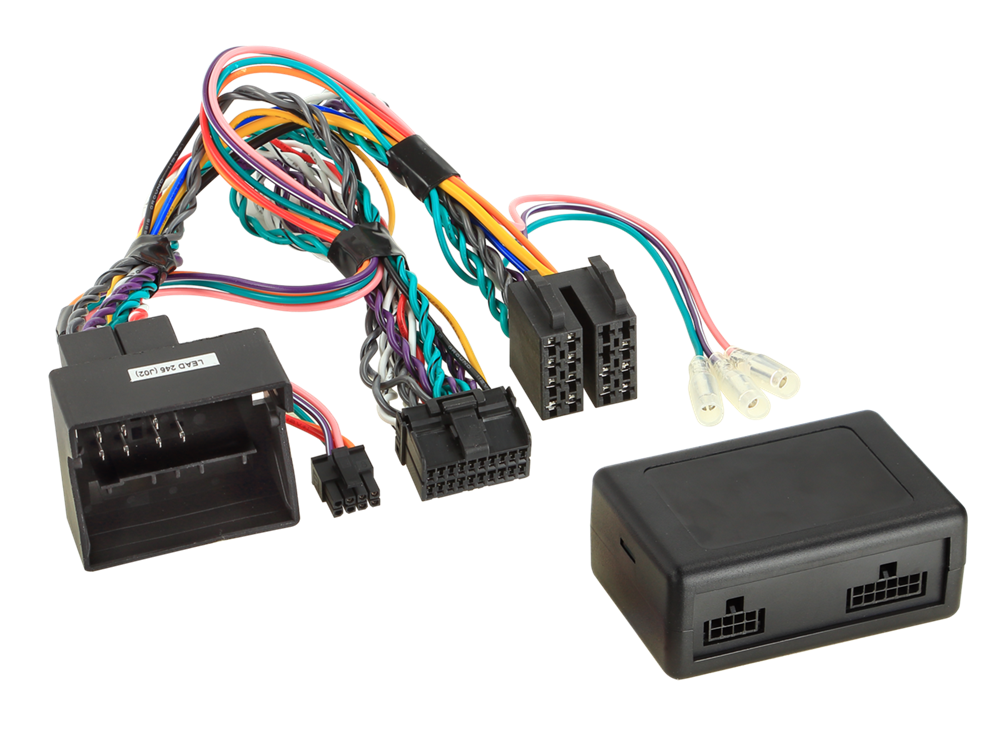

RAT INTERFACE TIL PEUGEOT / CITROEN M/BAKALARM

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:



CTSPG013, CTSTY018 OG CTSCT008 er identiske

Note:

CAN Bus

connector: 40 Pin Quadlock Citroen / Peugeot

vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM HU with volume control knob
vehicles with Clarion MQ-RD6 OEM Hu monochrome display and central rotary knob
vehicles with PDC rear
vehicles without Bosch OEM HU
vehicles without Continental RD45 OEM HU with volume control knob*/**
vehicles without Magneti Marelli RT3 / Harman Becker OEM Sat Nav with volume control knob
vehicles without JBL OEM amplified system

vehicles without OEM rear speakers > change connection front/rear speaker of the ISO plug
PDC chimes to rear speaker output

vehicles with PDC switch > PDC chimes funktion must be activated
vehicles with ECO-mode > connect +12V continuous current clamp 30 to batterie fused

vehicle settings supported (look into the manual)

Vehicle application:

Citroën
Citroën Berlingo (7) 06/2008 - 03/2012
Citroën Berlingo (7) 04/2012 - 05/2015
Citroën Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroen C3 (S) 01/2010 - 03/2013
Citroen C3 (S) 04/2013 - 01/2017
Citroën C4 (L) 11/2004 - 08/2010
Citroën C5 (D) 10/2004 - 04/2008
Citroën C8 (E) 01/2008 - 07/2012
Citroën C8 (E) 07/2012 - 06/2014
Citroën DS3 (S) 03/2010 - 07/2014
Citroen Jumpy (V) 02/2007 - 05/2016
Citroen Jumpy (V) 09/2016 - 01/2024***
Citroen Spacetourer (V) 03/2016 - 03/2024***

Fiat
Fiat Scudo (ZAF 270) 02/2007 - 07/2016

Opel
Opel Vivaro C (V) 09/2019 - 01/2024***
Opel Zafira Life V (V) 02/2019 - 01/2024***

PEUGEOT
Peugeot 207 (WC) 06/2006 - 06/2009**/***
Peugeot 207 (W) 06/2009 - 07/2015**/***
Peugeot 208 (C) 04/2012 - 04/2015**/***
Peugeot 307 (3/3 Break/3 SW/3 CC) 06/2005 - 03/2009**/***
Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015**/***
Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008
Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011
Peugeot 607 (9) 10/2004 - 04/2009
Peugeot 807 (E) 07/2002 - 02/2008
Peugeot 807 (E) 02/2008 - 06/2014
Peugeot 3008 (OU) 06/2009 - 10/2013
Peugeot 5008 (O) 10/2009 - 10/2013
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Expert (X) 02/2007 - 08/2016
Peugeot Expert (X) 03/2016 - 2023****
Peugeot Partner (7) 05/2008 - 03/2012
Peugeot RCZ (4J) 04/2010 - 09/2015
Peugeot Traveller 03/2016 -2023****

Toyota
Toyota Proace 03/2013 - 08/2016
Toyota Proace (V) 03/2016 - 04/2024***
Toyota Proace Verso (V) 03/2016 - 04/2024***

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal

load capacity total outputs: 100 mA max.

current requirement more than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

PDC rear supported
vehicle settings supported

*vehicles with RD45 OEM HU SWC Citroen/Fiat/Peugeot/Toyota40 Pin Quadlock > item: 42b-3444741
**vehicles with RD45 OEM HU Chimes Interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo > item: can-pdc
***vehicles with PDC and Clarion MQ-RD6 OEM Hu monochrome display and central rotary knob
***vehicle settings not supported

Med denne bevarer man det originale bak-alarm i bilen.

Der skal bruges en af nedenstående kabler.
