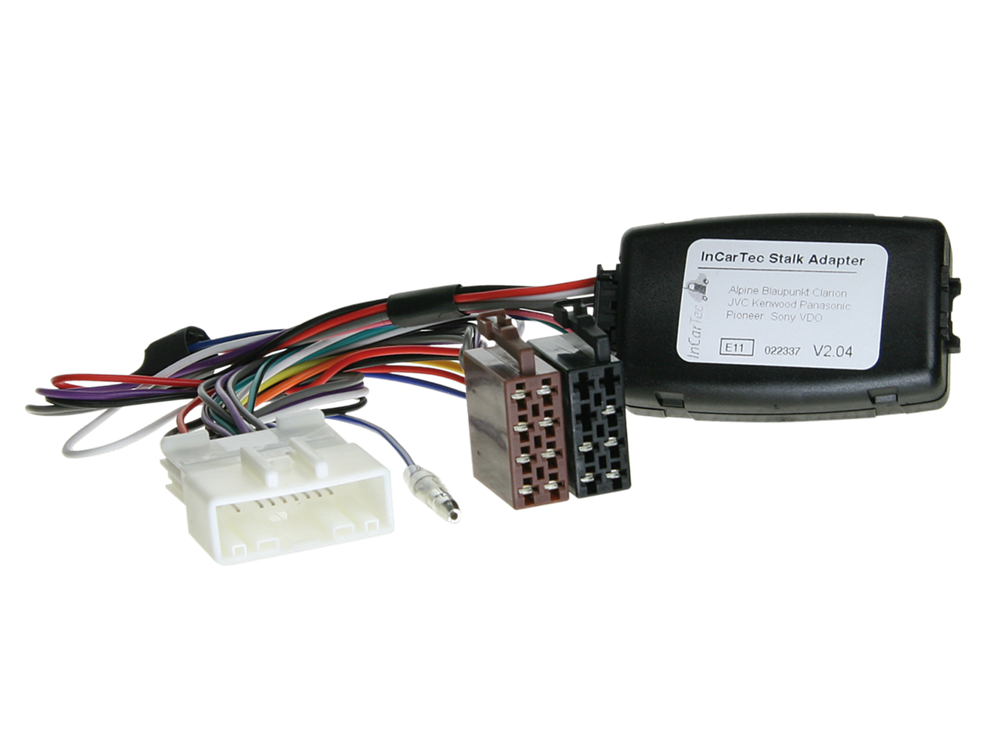

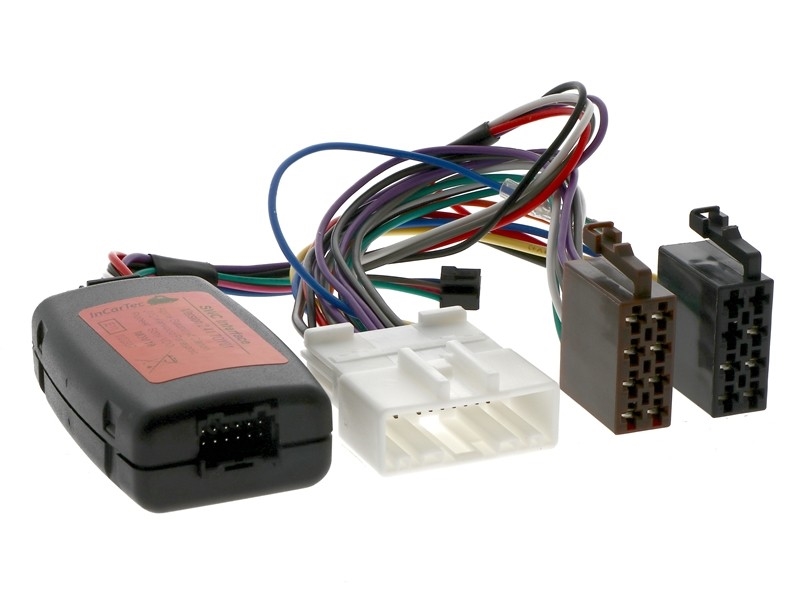

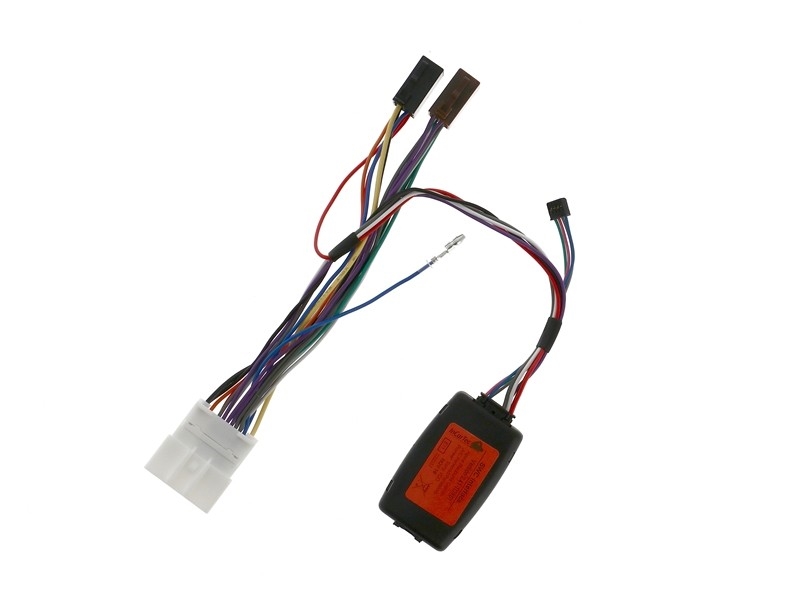

RAT INTERFACE TIL SUBARU, IMPRESZA 08>, FORRESTER 08>(MED TLF: KNAP PÅ RAT)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Nyt 20-pin stik
Note:

analog

connector: 20 Pin Nissan

vehicles with phone buttons on steering wheel
vehicles with OEM amplified systems*

blue: +12V amp remote

Vehicle application:

Subaru
Subaru BRZ (ZC) 09/2012 - 01/2017
Subaru Forester (SH) 03/2008 - 03/2011
Subaru Forester (SH) 03/2011 - 03/2013
Subaru Forester (SJ) 03/2013 - 02/2015**
Subaru Impreza (GH) 09/2007 - 10/2011
Subaru Impreza WRX (GH) 02/2008 - 04/2014
Subaru Legacy (BN/BS) 2014 - 2019***
Subaru Outback V (BS) 03/2015 - 02/2018
Subaru XV I (4G) 03/2012 - 01/2016

Toyota
Toyota GT 86 (ZN) 09/2012 - 12/2016

The following signals are provided:

SWC

*Active system adapter different vehicles ISO>ISO: 13-1190-50
**vehicles with Clarion OEM CD HU
***vehicles Subaru Legacy (BN/BS) 2014 - 2019 > Harman Kardon OEM ampilified system not supported
Der skal bruges et af nedennævnte kabler
