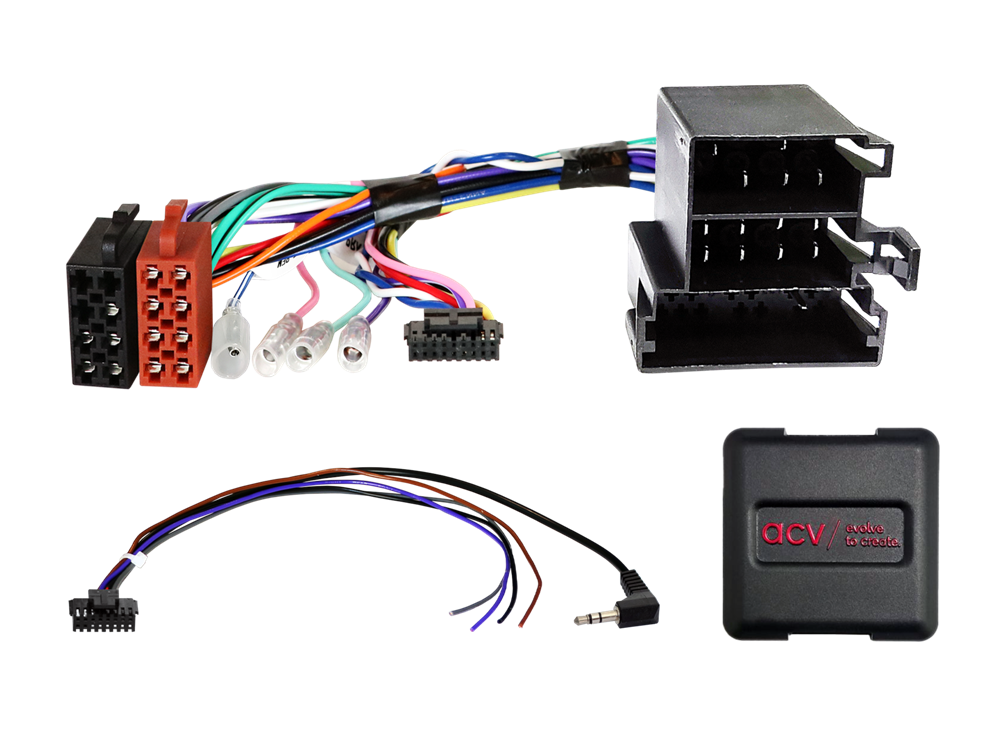

RAT INTERFACE TIL FIAT/ALFA/LANCIA (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN Bus

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with CAN Bus ISO power connector
vehicles with Blue&Me > module must remain installed

vehicles with/without OEM amplified system

blue/white: +12V amplified system remote*

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Alfa Romeo
Alfa Romeo 159 (939) 09/2005 - 11/2011
Alfa Romeo Brera (939) 01/2006 - 10/2010
Alfa Romeo Spider (939) 01/2007 - 10/2010

Fiat
Fiat Stilo (ZAF 192) 02/2003 - 01/2008**

Lancia
Lancia Musa (ZAL 350) 11/2004 - 12/2010
Lancia Ypsilon (UAL 843) 10/2006 - 08/2010

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

*Active system adapter Alfa Romeo/Lancia ISO>ISO > item: 13-1001-50
*Active system adapter different vehicles ISO>ISO > item: 13-1190-50
**vehicles without Visteon OEM HU
