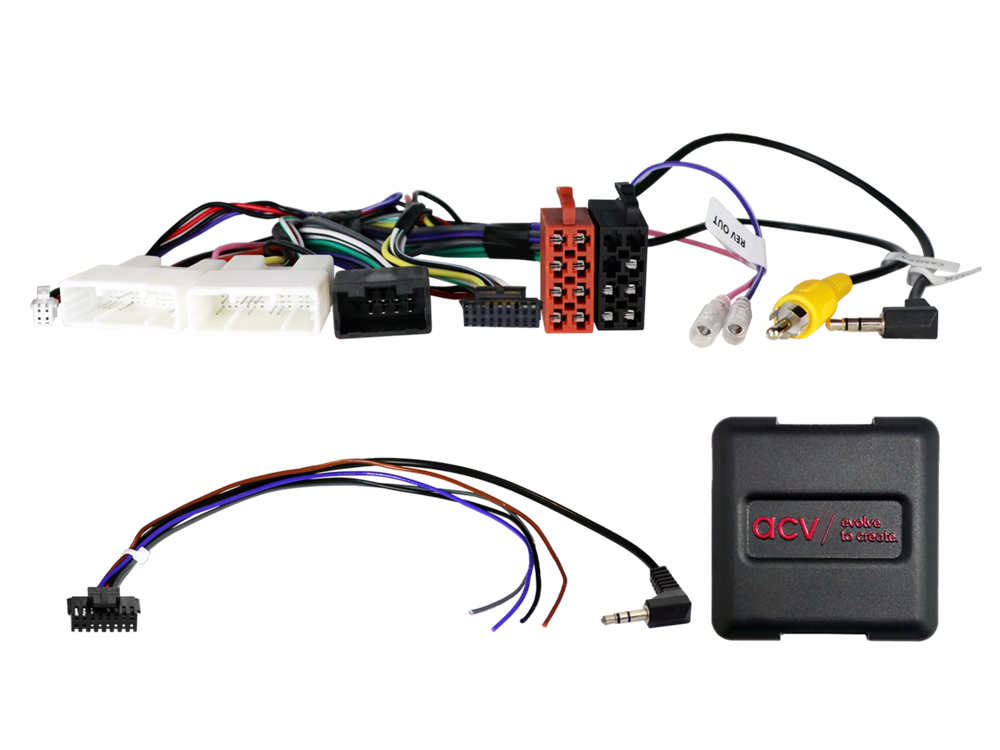

RAT INTERFACE TIL TOYOTA CAMRY/HILUX 2019 > MED KAMERA OG AUX BIBEHOLDELSE (ALL INCL.)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Ratinterface til Toyota med kamera og aux bibeholdelse
Vehicle application:

Note:

analog

connector: 28 Pin / 34 Pin / 10 Pin Toyota
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > Jack(m) 3,5mm
connector: OEM rear view camera > RCA(m) yellow camera input

purple/white: +12V reverse gear signal

vehicles with different assignments and vehicles with OEM Sat Nav:

check the pin assignment to avoid malfunctions or defects on the vehicle or retrofit device before connecting by measuring

OEM camera +6V power supply > check for correct assignment with OEM HU before installation
Video (+/-) > check for correct assignment with OEM HU before installation
USB > check for correct assignment with OEM HU before installation
AUX > check for correct assignment with OEM HU before installation

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Toyota Aygo X (AB7) 04/2022 - 2024
Toyota Camry (XV70) 03/2019 - 04/2021
Toyota Camry (XV70) 04/2021 - 09/2021
Toyota Hilux (AN1P) 10/2020 - 2024
Toyota Yaris (XP21) 09/2020 - 2024
