Varenr.: incartec 29-674
På lager hos vores leverandør ![](/images/katlogo/pdf6.bmp)
Download manual

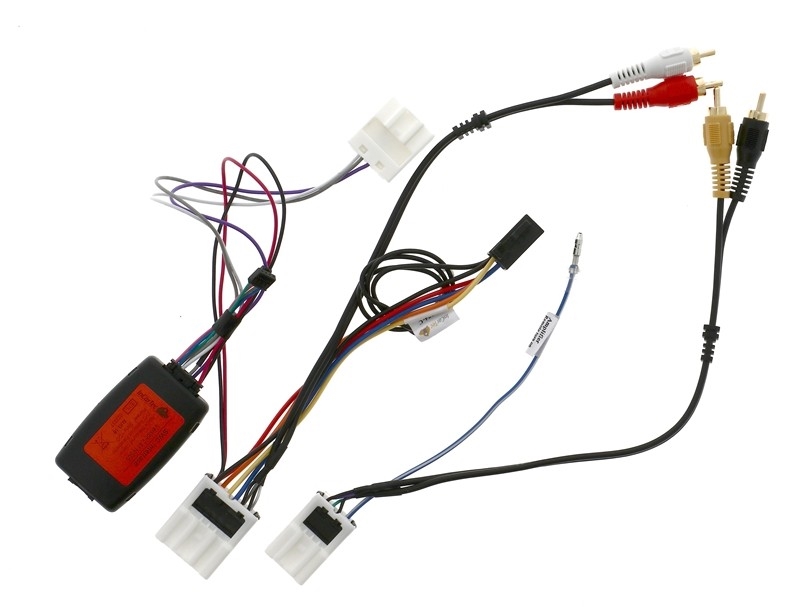

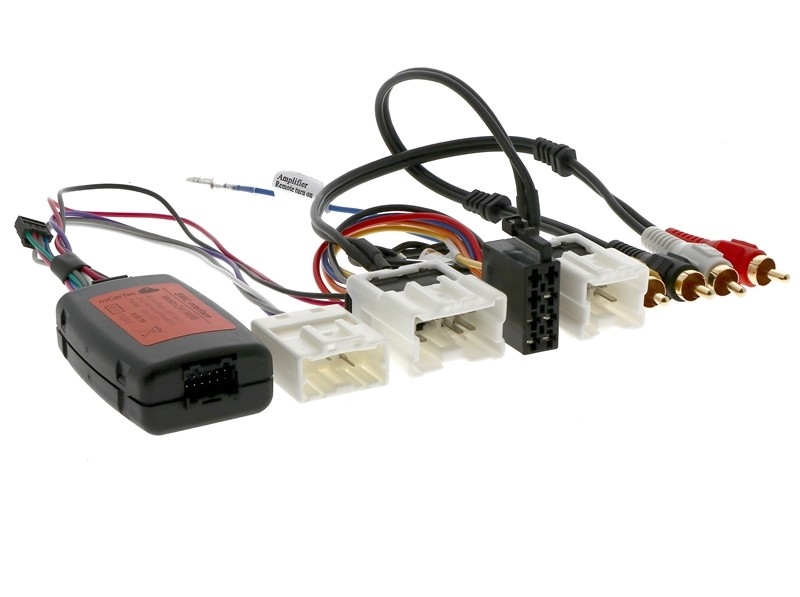

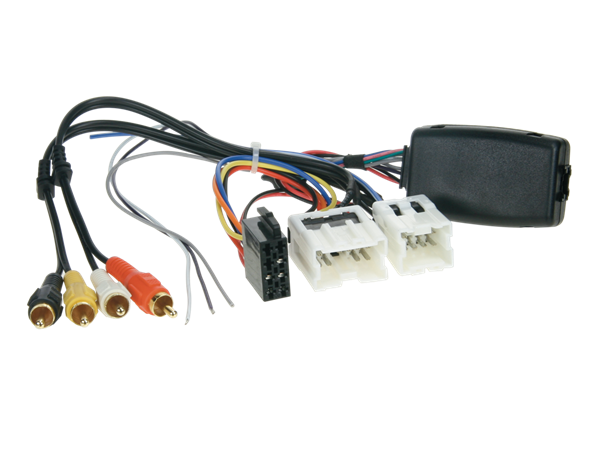

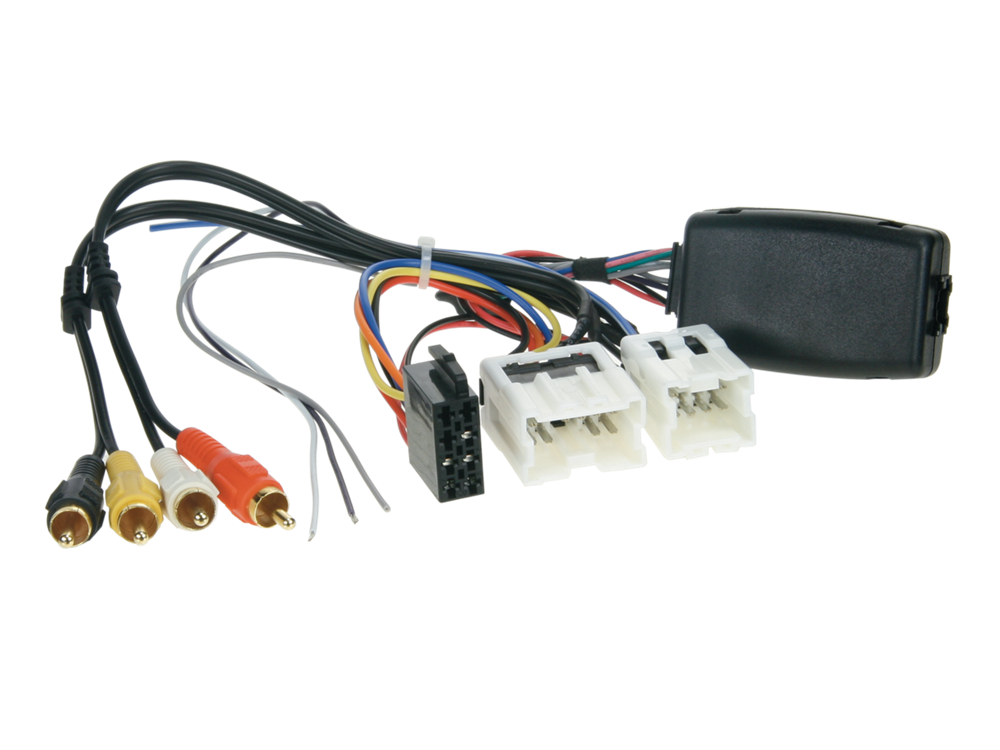

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller:
Note:
analog
connector: 10 Pin / 6 Pin / 16 Pin Nissan
connector: OEM Bose amplified system > RCA
connector: LFB > loose wires (look manual)
vehicles with BOSE OEM amplified system
black: GND clamp 31
Vehicle application:
Nissan 350Z (Z33) 06/2002 - 08/2009
Nissan Elgrand E50 1997 - 2002
Nissan Elgrand E51 2002 - 2010*
Nissan Murano I (Z50) 01/2005 - 09/2008
Nissan Navara (D40) 03/2005 - 03/2010**
Nissan Pathfinder (R51) 03/2005 - 03/2010
Nissan X-Trail (T30) 06/2001 - 07/2007***
The following signals are provided:
SWC
*vehicles without OEM Sat Nav
**vehicles with 2-DIN OEM HU without Enter-funktion rotary control
**vehicles with 2-DIN OEM HU with Enter-function rotary control > item: 42k-1215-000
***vehicles with CH340 2-DIN OEM HU > item: 42k-1215-000
***vehicles with XT-CT138/XT-CY690 1-DIN OEM HU > item: 42k-1213-000
Terano og X Trail SE & T Trim modeller
