Varenr.: 42xfa026
På lager hos vores leverandør ![](/images/katlogo/pdf6.bmp)
Download manual

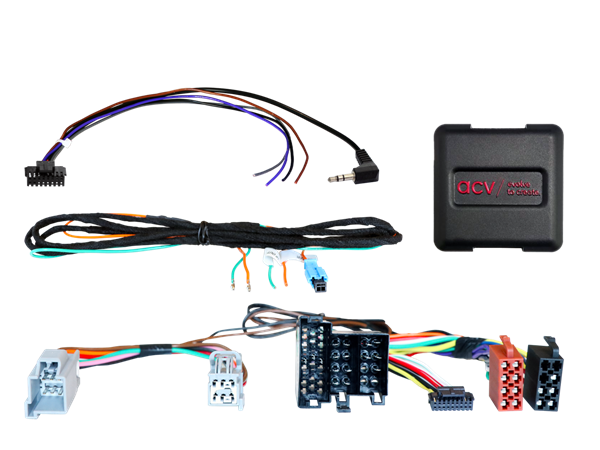

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Passer til følgende modeller:

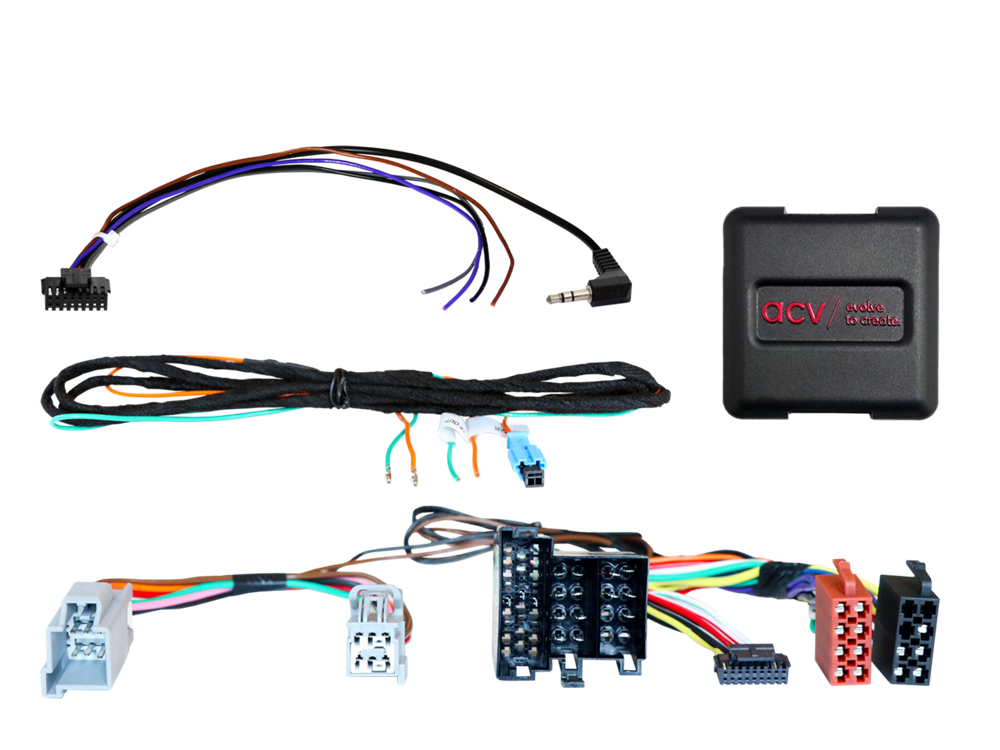

Stalk Adapter Fiat
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:
analog
connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire
connector: 6 Pin Fiat T-Harness > telephone
connector: Harness fuse box > speedpuls / reverse gear signal (look into the manual)
vehicles with open dash
vehicles with inductive charging device > telephone function supported
SWC buttons > backside steering wheel (look into the manual)
telephone function supported
connection harness fuse box:
green: speed pulse signal black 60 Pin connector > Pin 22
orange: reverse gear signal +12V green 60 Pin connector > Pin 17
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Fiat Ducato (ZAF 250) 11/2021 - 2024
The following signals are provided:
SWC
General installation instructions:
Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness in a voltage-free.
Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the radio connection cable voltage-free.
3: Connect the radio connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/FSE/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle
Changes to the configuration of the interface and the radio connection cable:
1: Change configuration voltage-free
2: Reonnection see above 5 to 8
In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6
More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler.
More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
