Varenr.: CTSNS028
På lager hos vores leverandør ![](/images/katlogo/pdf6.bmp)
Download manual

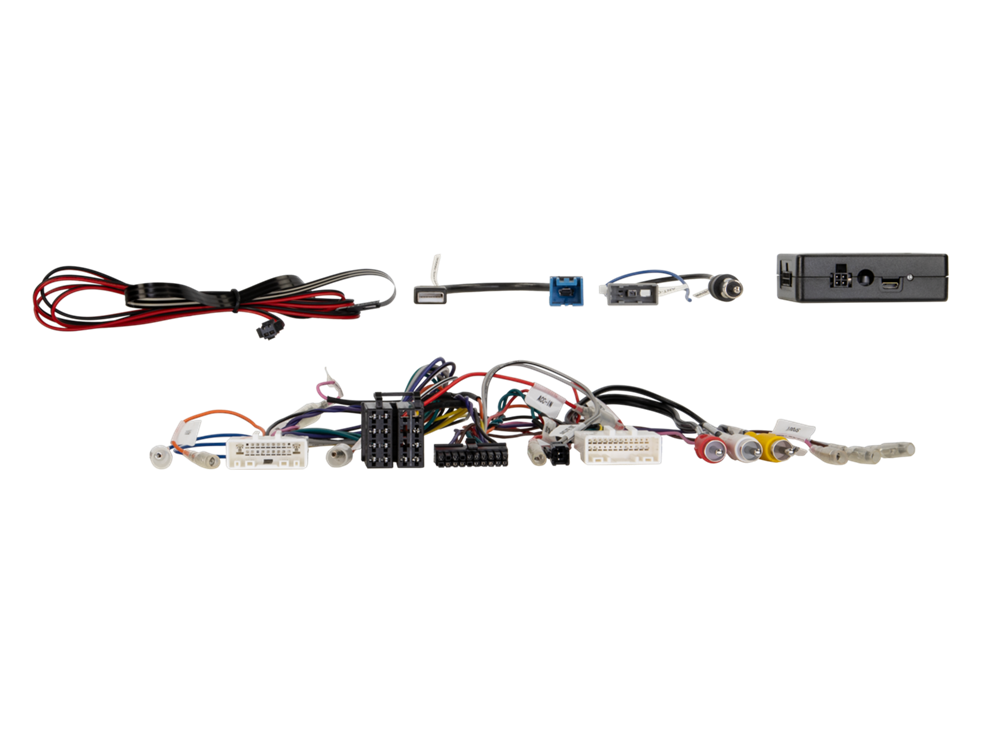

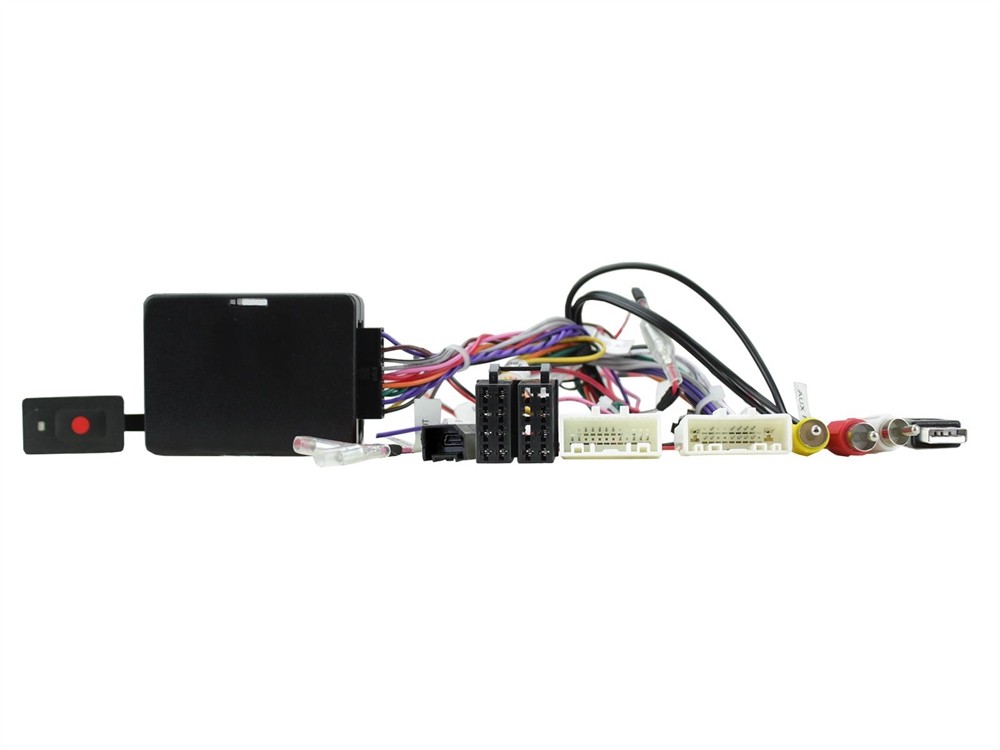

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller:
Note:
CAN Bus
connector: 20 Pin / 24 Pin Nissan
connector: OEM Antenne > DIN(m) / blue +12V antenna remote
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A
connector: OEM 360° camera system > RCA(m) yellow
vehicles with OEM Navigation
vehicles with OEM 360° camera system
vehicles with model equipment N-Connecta
vehicles with model equipment N-Vision
vehicles with model equipment Tekna > Nissan Savety Shield not supported:
motion detection
parking assistant
drowsiness detection
blind spot assist
date/time setting > BC display in AUX position
BC reset factory settings and reconfiguration required if AUX menu is missing
track forward / track back > function can be swapped
Vehicle application:
Nissan Juke (F15) 10/2010 - 06/2014
Nissan Juke (F15) 06/2014 - 11/2019
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND park brake signal
load capacity total outputs: 100 mA max.
current requirement more than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
date/time setting supported
360° OEM camera system supported

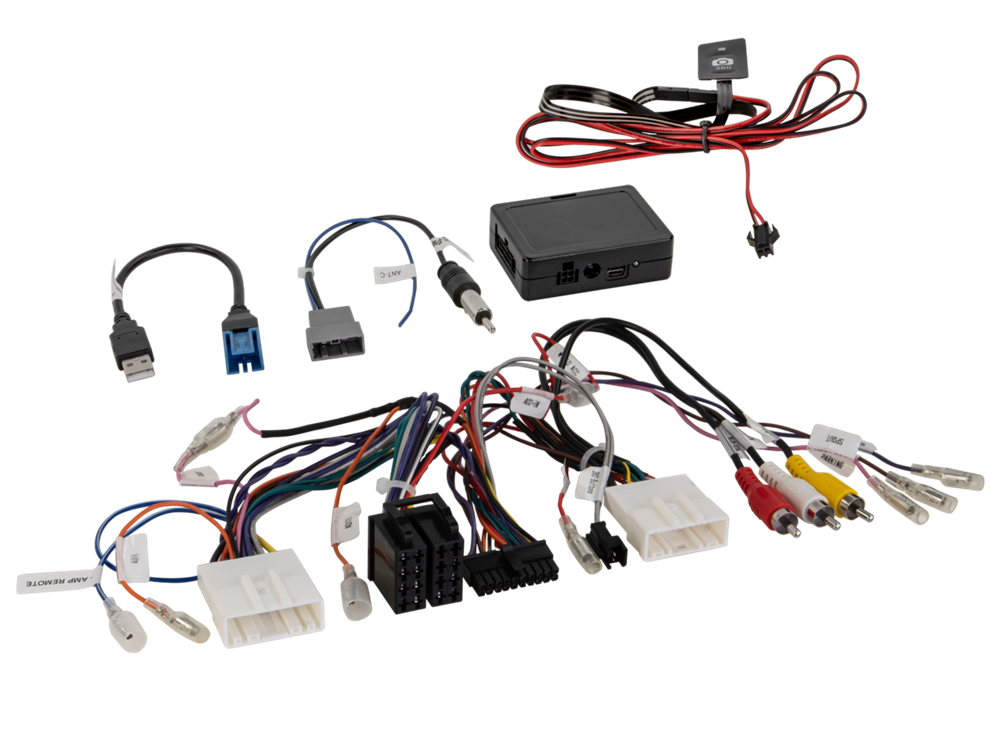

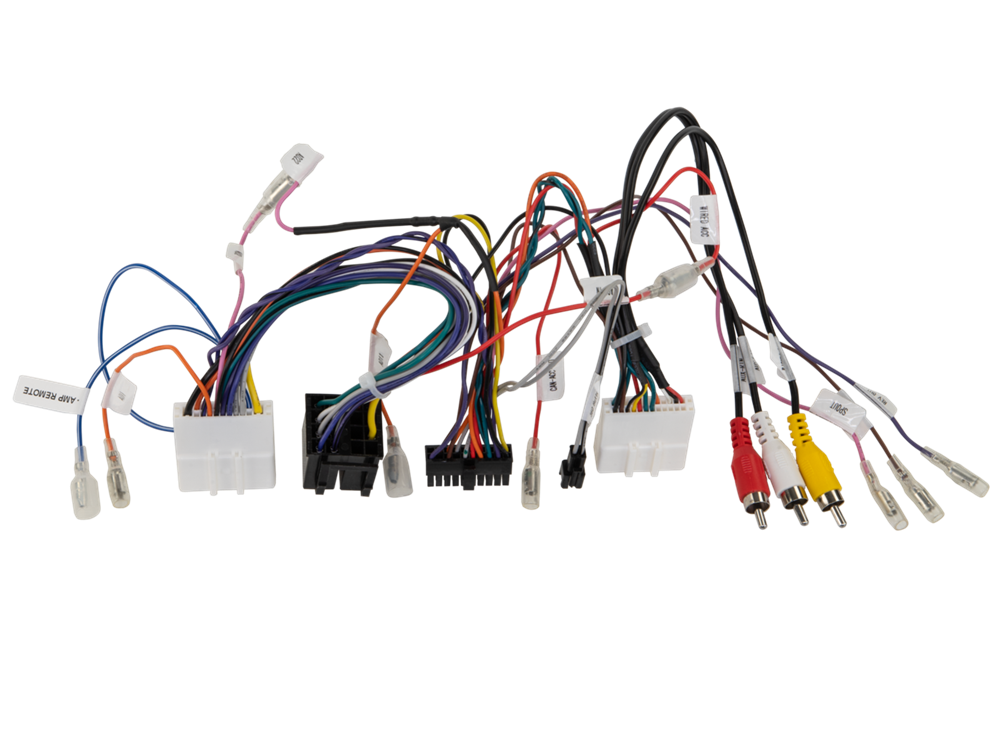

Der skal bruges et af nedennævnte kabler
