RAT INTERFACE TIL SUBARU 2007 > 2013 MED OEM KENWOOD NAVI (INCL. KAMERA BIBEHOLDELSE)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:

SUBARU

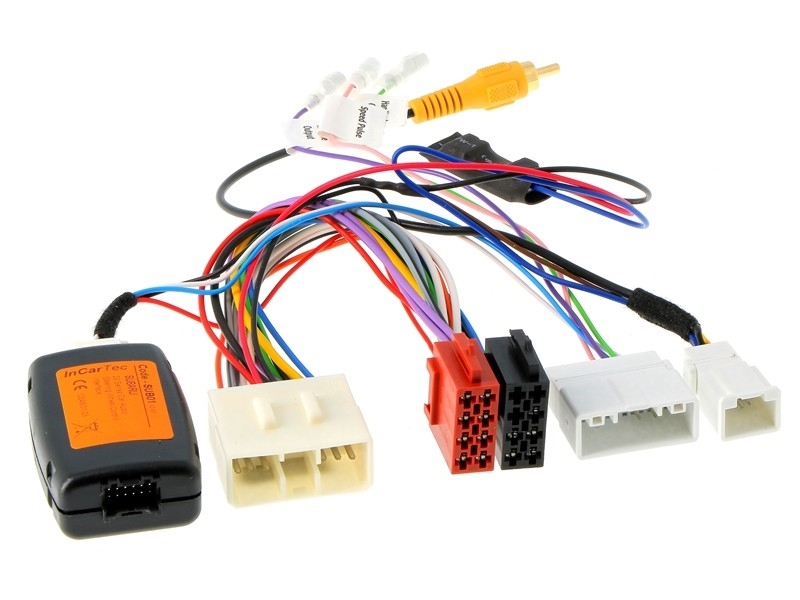

Steering wheel control interface and camera adapter cable Subaru Forester (2008 - 2012) with original Kenwood Navigation head unit.

The interface and radio adapter cable is plug and play, it is used to connect an aftermarket stereo upgrade and retain the use of the volume, track skip, source and phone buttons from the steering wheel with the new radio.

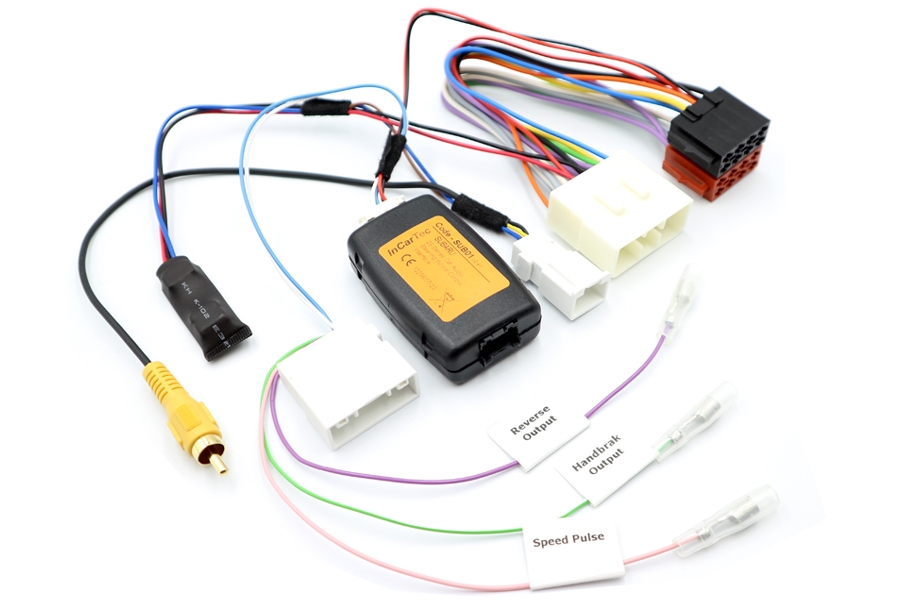

The cable also provides a speed pulse (for GPS) reverse output (for reverse camera) and handbrake output signal to the new stereo. The interface includes retention for the original reverse camera, and includes a 12v-6v voltage dropper, already hard wired for plug and play installation.

The cable adapts from the connectors in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

The steering wheel control interface is built in to the adapter cable for a plug and play installation.

The interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons.



Compatible with the following car models:
Subaru - Forester 3rd Gen (SH) (2008 - 2014)
Subaru - Impreza (2007 - 2011)
Subaru - Liberty Exiga (2008 - 2018)

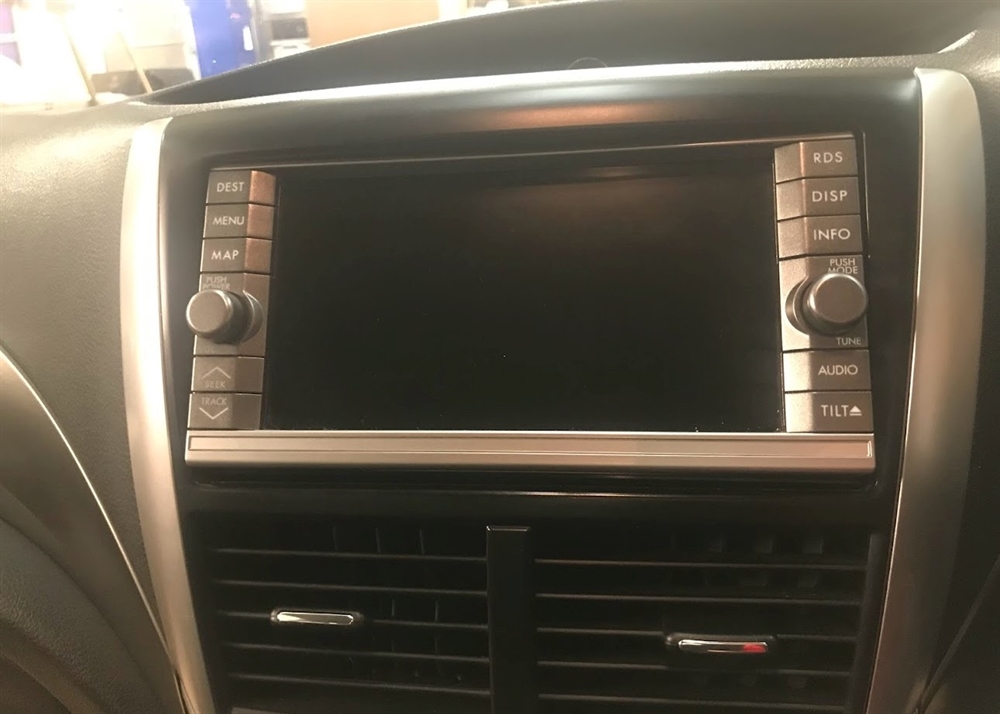

with original Kenwood Navigation head unit


Der skal bruges et af nedennævnte kabler
