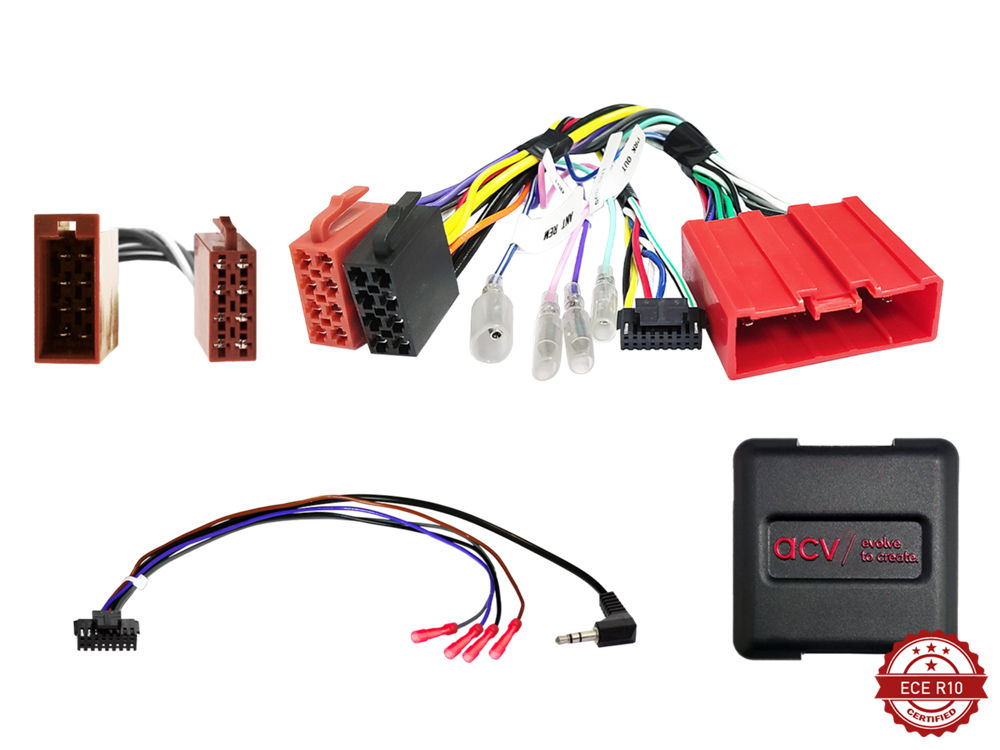

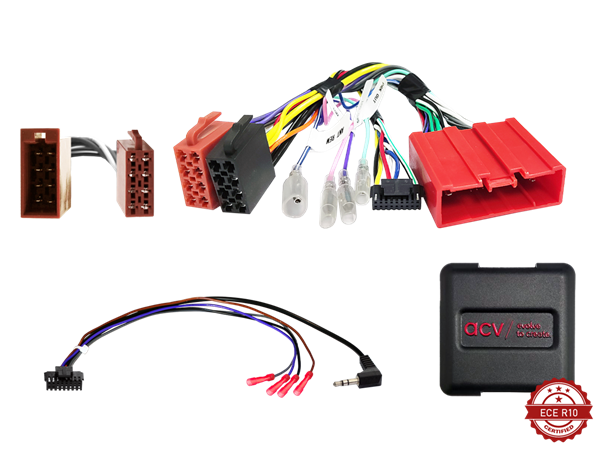

RAT INTERFACE MAZDA 6/CX-5/CX-7 2007-2015 MED/UDEN BOSE

Note:

CAN Bus

connector: 24 Pin Mazda
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM amplified system ISO(m) > ISO(f)

blue/white: +12V amp remote

vehicles with BOSE OEM amplified system

vehicles without BOSE OEM amplified system:
installation without OEM amplified system ISO(m) > ISO(f) connector
installation without blue/white: +12V amp remote connection

before connection > check assignment and function of the analoge connections speed / parking brake / reverse

date/time settings supported
trip settings supported
fader supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mazda 6 (GJ) 02/2013 - 02/2015*
Mazda CX-5 (GH) 04/2012 - 02/2015**
Mazda CX-7 (ER) 10/2007 - 09/2009
Mazda CX-7 (ER) 10/2009 - 09/2013

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with Sanyo 2-DIN OEM Sat Nav > OEM camera connection 4 Pin connector green Video+ / red Video-
**vehicles with Panasonic OEM HU
