Varenr.: CTUFT03
På lager hos os Download manual

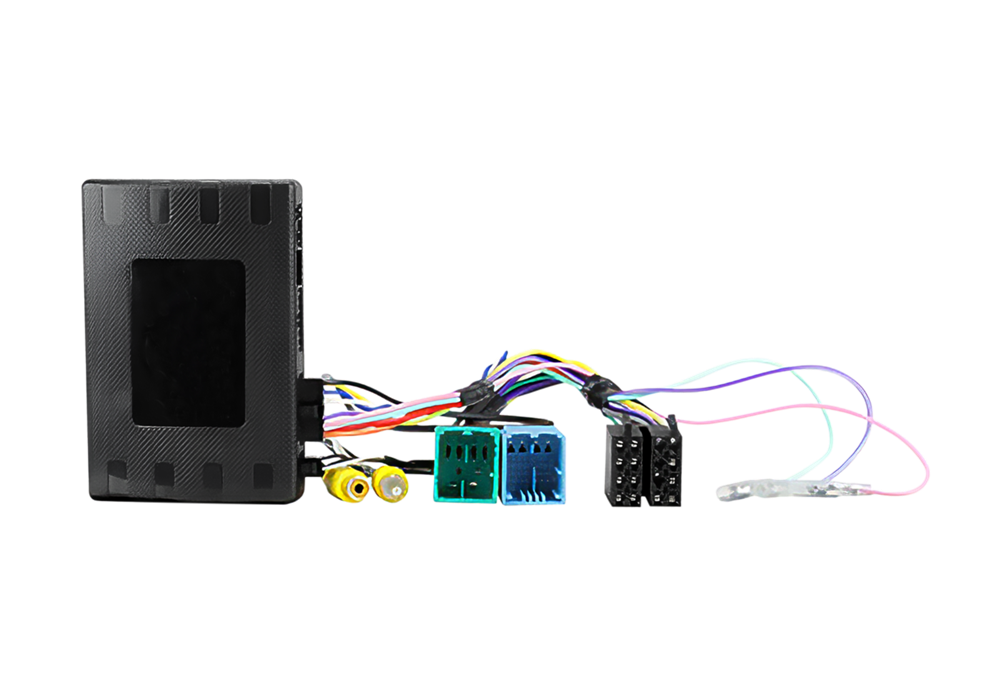

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Specielt interface til FIAT som både understøtter ratbetjening, samt visning af eventuel originale parkeringssensorer og klimavisning på en eftermarkedsenhed med indgang for bakkamera. Passer til følgende modeller:
Note:
vehicles with SWC
connector: 12 Pin green / 32 Pin blue Fiat
to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear view camera input of the HU
vehicles with 7" OEM HU
vehicles with 10" OEM Sat Nav
following settings supported:
Language / Distance Units / Clock / Temperature Units / Consumption Units / Speed Units / Follow Me / Auto Door Unlock on Exit / Flash Lights with lock / Courtesy Lights / Auto Door Locks / Daytime Running Lights / Cornering Lights / Ambient Lighting / Greeting Lights / Park Sens / Volume Level / High Beam Control / Park Sense / Rain Sensor / Lane Sense Warning / Lane Sense Strength / Tyre Pressure Units / Traffic Sign Recognition / Traffic Sign Warning / Vehicle Off Options / Blindspot Assist / Headlight Sensor Sensitivity / Forward Collision Warning / Forward Collision Sensitivity
Vehicle application:
Fiat Ducato (ZAF 250) 11/2021 - 2023
Following signals are provided:
Ignition
Illumination
Reverse
Speedpulse
SWC
vehicle settings supported
Der skal bruges et af nedennævnte kabler
