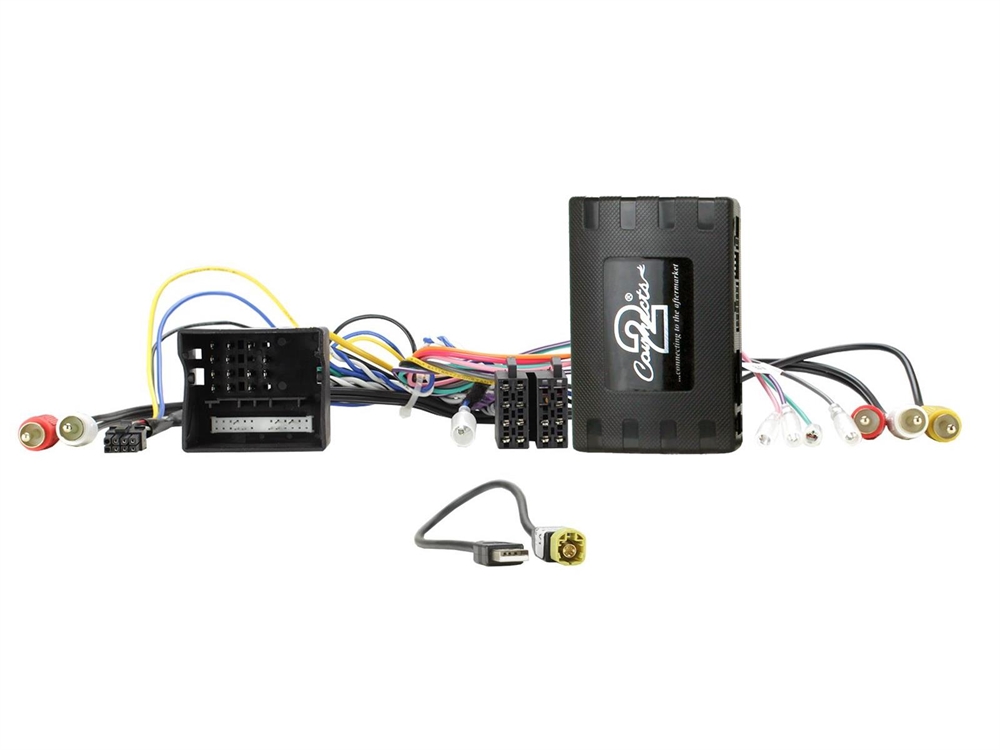

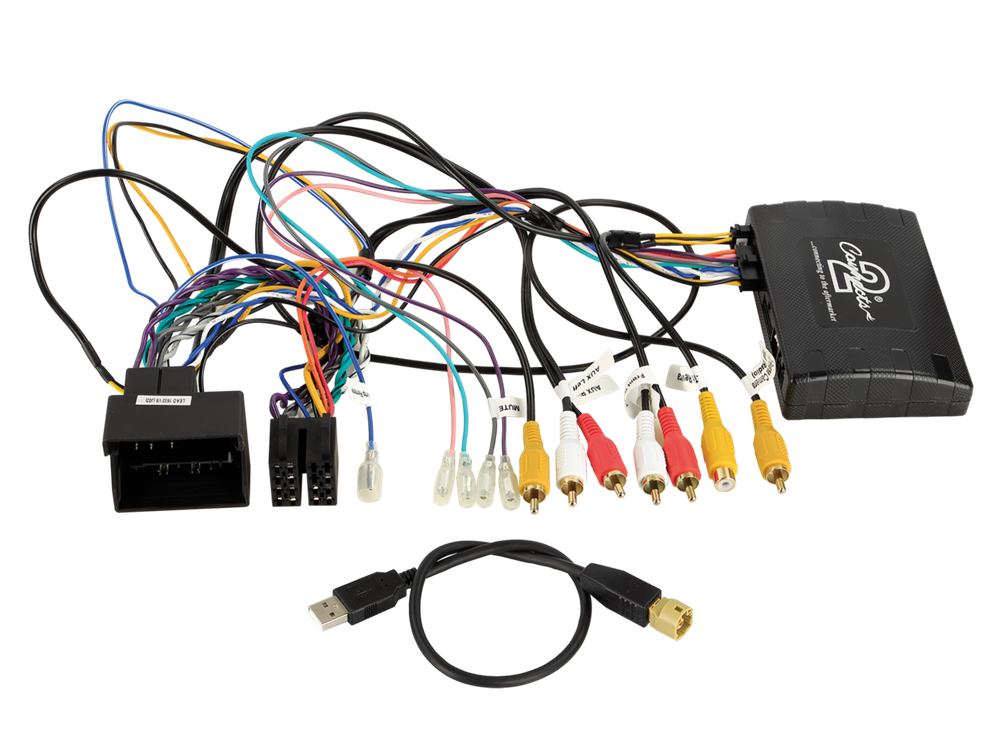

RAT INTERFACE (INFOADAPTER) TIL PORSCHE 2009 > UDEN FORSTÆRKER

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Specielt interface til Porsche som både understøtter ratbetjening, samt visning af eventuel originale parkeringssensorer og klimavisning på en eftermarkedsenhed med indgang for bakkamera. Passer til følgende modeller:

Note:

vehicles with SWC

connector: 40 Pin Quadlock Porsche
connector: Fakra(m) > DIN(m)
connector: OEM rear view camera > RCA yellow
connector: OEM AUX > RCA red/white
connector: OEM amplified system > RCA red/white (not connected)
connector: OEM USB LVDS > USB-A

vehicles with PCM 3.1 OEM HU
vehicles with OEM analog amplified system*

vehicles without 360° camera
vehicles without Burmester 3 D High End Surround OEM amplified system

vehicle settings not supported

blue/white: +12V Amp remote

to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear view camera input of the HU

Vehicle application:

Porsche 911 (991) 12/2011 - 01/2017
Porsche Cayenne (92A/958) 05/2010 - 12/2017
Porsche Macan (95B) 04/2014 - 08/2018
Porsche Panamera (970) 09/2009 - 07/2016

Following signals are provided:

Park brake
Reverse
Ignition
Speed pulse

SWC

visualisation OPS
PDC chimes

Der skal bruges et af nedennævnte kabler.
