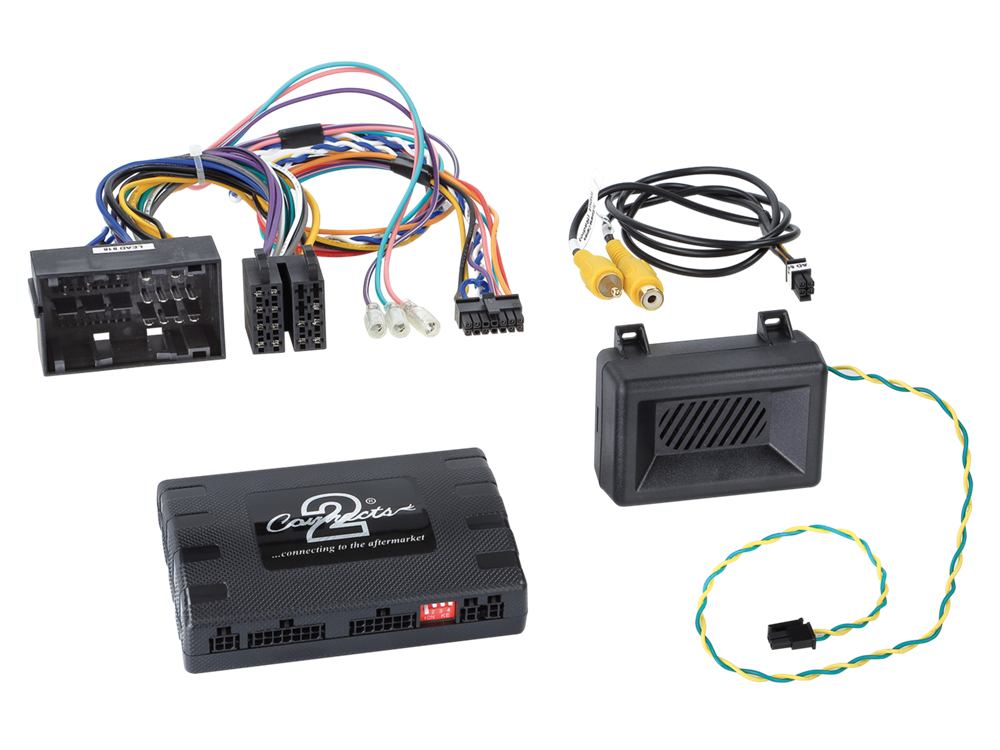

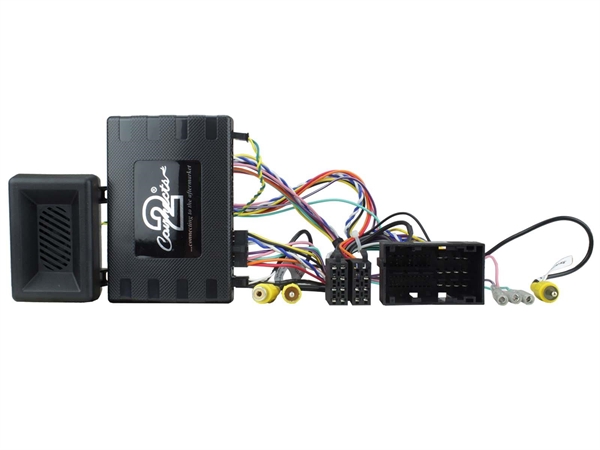

RAT INTERFACE (INFOADAPTER) TIL JEEP RENEGADE 2014 > MED 52 PIN FIAT STIK

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Specielt interface til FIAT som både understøtter ratbetjening, samt visning af eventuel originale parkeringssensorer og klimavisning på en eftermarkedsenhed med indgang for bakkamera. Passer til følgende modeller:

Note:

vehicles with SWC

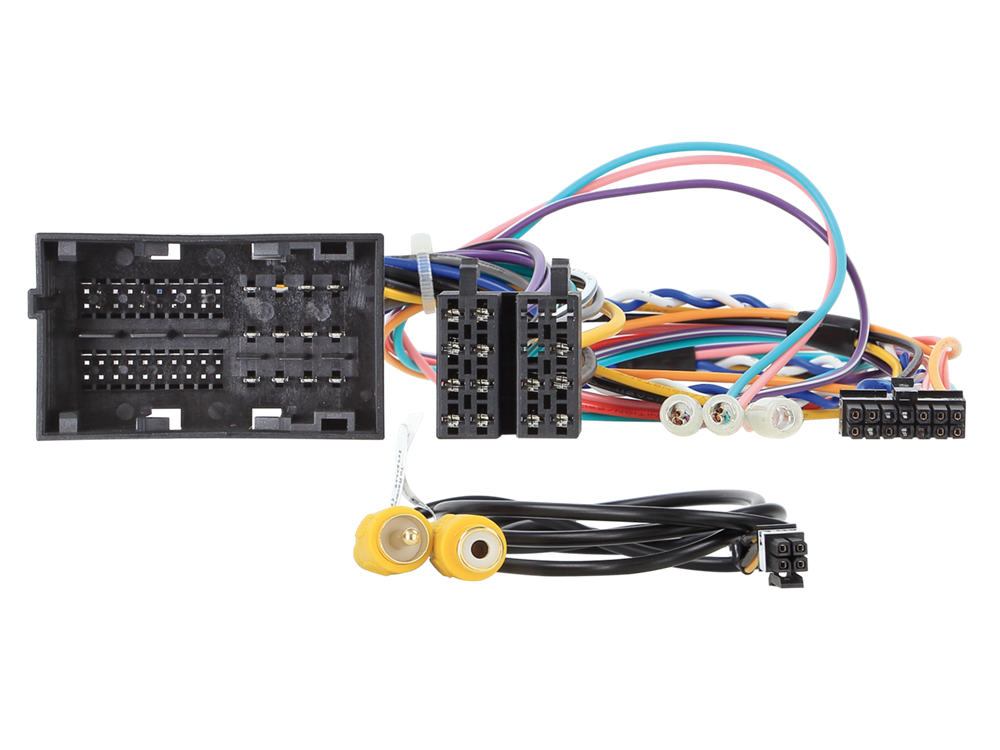

connector: 52 Pin Fiat

to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear vievw camera input of the HU

not for vehicles with OEM:

optical fiber system
without OEM HU
without HU preperation
with 12 PDC sensors

visualisation 8 PDC sensors supported
visualisation climatronics not supported

setting:

if the Odometer is flashing:
you will need to enter the menu of the Infodapter.
press and hold the speech button for a few seconds
from main menue go to Infodapter settings
Preferences
Config Menu
there try several Settings from 0 - 3
(most used Setting 2, please try first)
After changing the setting you need to restart the interface - don't cut the power supply and let the car go to rest for 15 - 20 Minutes. This will allow the interface to sents a fresh command to the vehicle.

Vehicle application:

Jeep Renegade (BU) 10/2014 - 08/2018
Jeep Renegade (BU) 09/2018 - 2022

Following signals are provided:

Ignition
Illumination
Reverse
Speedpulse

SWC

vehicle settings

Der skal bruges et af nedennævnte kabler
