Varenr.: CTUFT01
På lager hos vores leverandør
Download manual

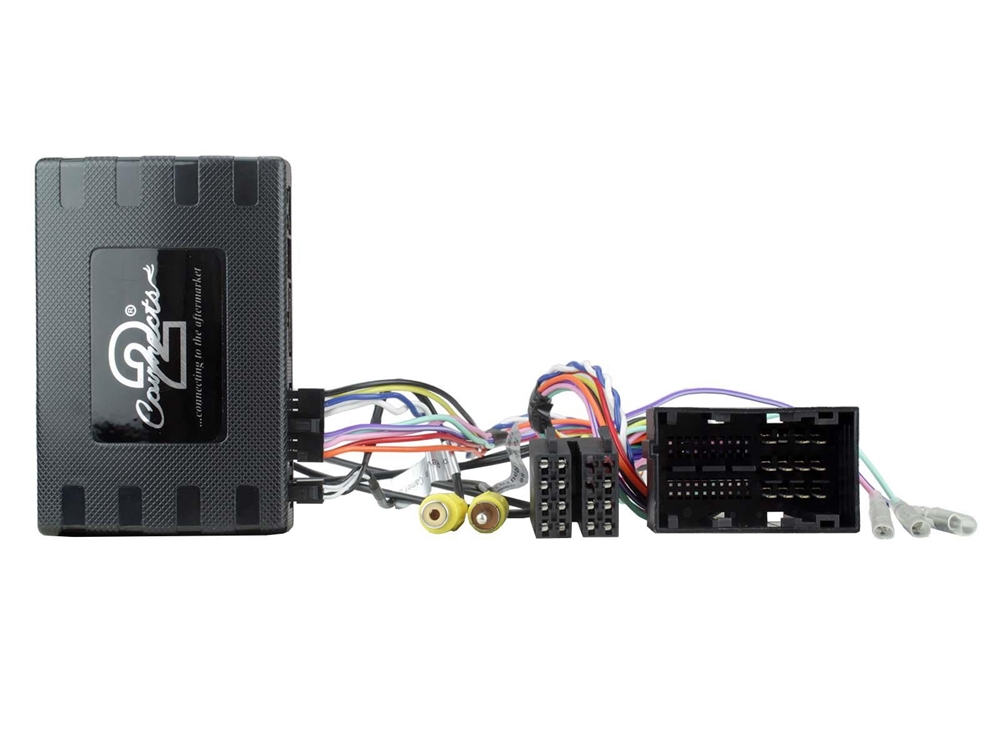

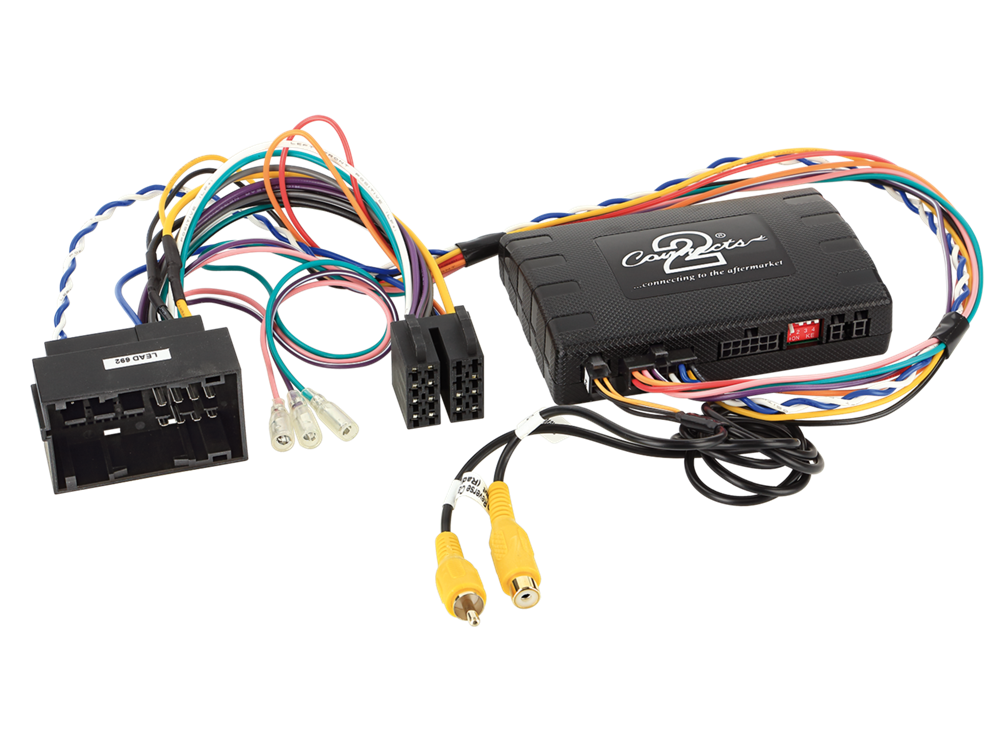

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Specielt interface til FIAT som både understøtter ratbetjening, samt visning af eventuel originale parkeringssensorer og klimavisning på en eftermarkedsenhed med indgang for bakkamera. Passer til følgende modeller:
Note:
vehicles with SWC
vehicles with voice dial button
connector: 52 Pin Fiat
to enter settings connect the reverse signal output (purple/white) to HU
for visualisation of the settings connect and configure the rear view camera input of the HU
vehicles with Continental 250VP1 / 250 VP2 OEM HU
vehicles with UConnect OEM HU
vehicles with Daiichi OEM HU***
high beam assistance not supported
driver assistance system not supported
start/stop function not adjustable
Vehicle application:
Citroen
Citroen Jumper (250) 05/2014 - 2022**
Citoren Relay (250) 2014- 2022**
Fiat
Fiat 500 /ZAF 312) 07/2015 - 2022*
Fiat 500L (ZAF 199) 10/2012 - 07/2017
Fiat 500L (ZAF 199) 07/2017 - 03/2022
Fiat Doblo (ZAF 263) 01/2015 - 2022
Fiat Ducato (ZAF 250) 05/2014 -11/2021**
Opel
Opel Movano Cargo C (Y) 10/2021 - 2022
Peugeot
Peugeot Boxer (Y) 09/2014 - 2022**
Following signals are provided:
Ignition
Illumination
Reverse
Speedpulse
SWC
vehicle settings
*vehicles with Uconnect OEM Gerät
*vehicles with 7" OEM HU monitor not supported
**vehicles with Continental/Mopar 250VP1 / 250VP2 OEM HU
***Citroen Jumper / Fiat Ducato / Opel Movano / Peugeot Boxer Daiichi remove Daiichi harness adapter > radio slot driver side OEM connector
Der skal bruges et af nedennævnte kabler
